RN58R-MSN (1994)

Toyota Hilux

Production Jul 1994 - Jul 1998
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9407- )22R

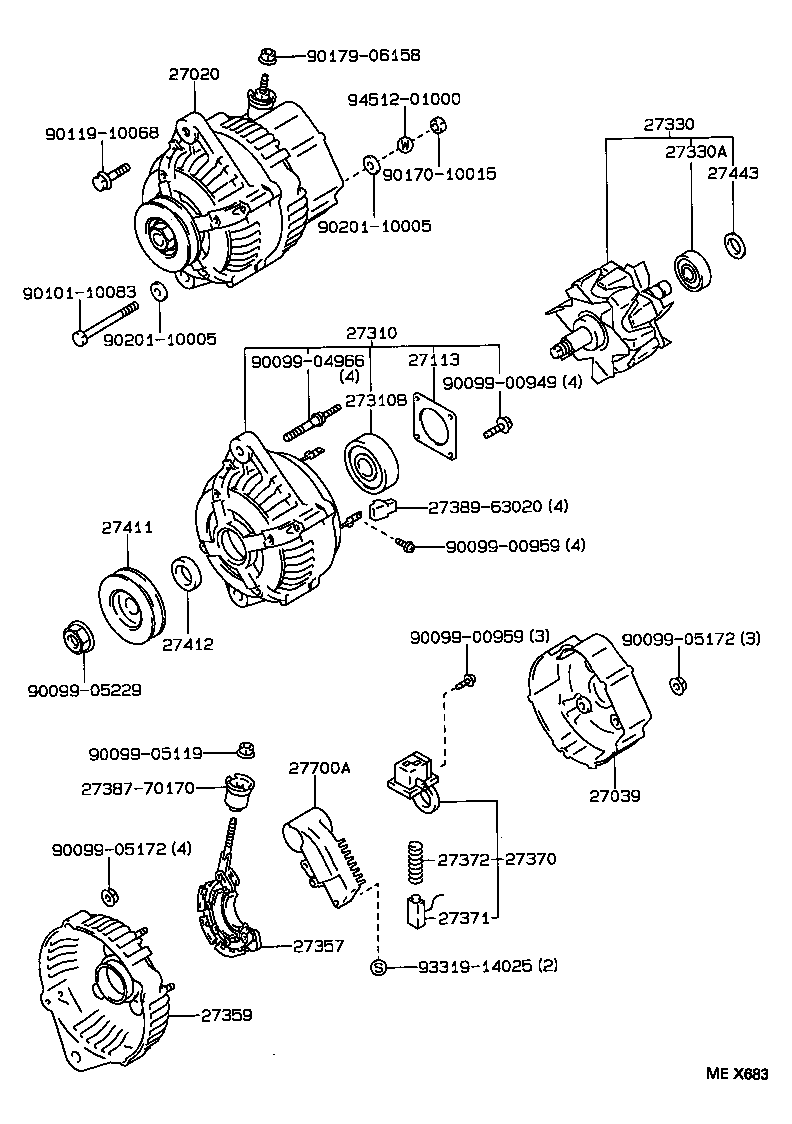

Click highlighted areas on diagram

12V 70A

diagram 27020 27039 27113 27310 27310B 27330 27330A 27357 27359 27370 27371 27372 2738770170 2738963020 27411 27412 27443 27700A 9009900949 9009900959 9009900959 9009904966 9009905119 9009905172 9009905172 9009905229 9010110083 9011910068 9017010015 9017906158 9020110005 9020110005 9331914025 9451201000
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-35160

22R..RN67;22R..RN58..SR5

12V 70A,12V 70A

 1
27039 - COVER, ALTERNATOR REAR END
27039-73020

22R..RN67;22R..RN58..SR5

12V 70A

 1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-72100

22R..RN67;22R..RN58..SR5

12V 70A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-35160

22R..RN67;22R..RN58..SR5

12V 70A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10199

22R..RN67;22R..RN58..SR5

12V 70A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-72101

22R..RN67;22R..RN58..SR5

12V 70A

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-63020

22R..RN67;22R..RN58..SR5

12V 70A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-16011

22R..RN67;22R..RN58..SR5

12V 70A

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-35060

22R..RN67;22R..RN58..SR5

12V 70A

 1
27371 - BRUSH, ALTERNATOR
27371-70300

22R..RN67;22R..RN58..SR5

12V 70A

 2
27371-31011

22R,1Y#,2Y#,3Y,4Y,4YC..RN5#,YN5#,6#

12V 40A,55A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

22R,1Y#,2Y#,3Y,4Y,4YC..RN5#,YN5#,6#

12V 40A,55A

 2
27372-63020

22R..RN67;22R..RN58..SR5

12V 70A

 2
27411 - PULLEY, ALTERNATOR
27411-35062

22R..RN67;22R..RN58..SR5

12V 70A

 1
27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY)
27412-35100

22R..RN67;22R..RN58..SR5

12V 70A

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

22R..RN67;22R..RN58..SR5

12V 70A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-72030

L,22R,2L,1Y#,2Y#,3Y,4Y,4YC..LN5#,6#,RN5#,YN5#,6#

 1
27700-66040

22R..RN67;22R..RN58..SR5

12V 70A

 1
Common parts
27387-70170
27389-63020
90099-00949
90099-00959
90099-04966
90099-05119
90099-05172
90099-05229
90101-10083
90119-10068
90170-10015
90179-06158
90201-10005
93319-14025
94512-01000
