RN58R-MSN (1994)
Toyota Hilux
Production
Jul 1994
-
Jul 1998
Engine
22R
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9407- )22R

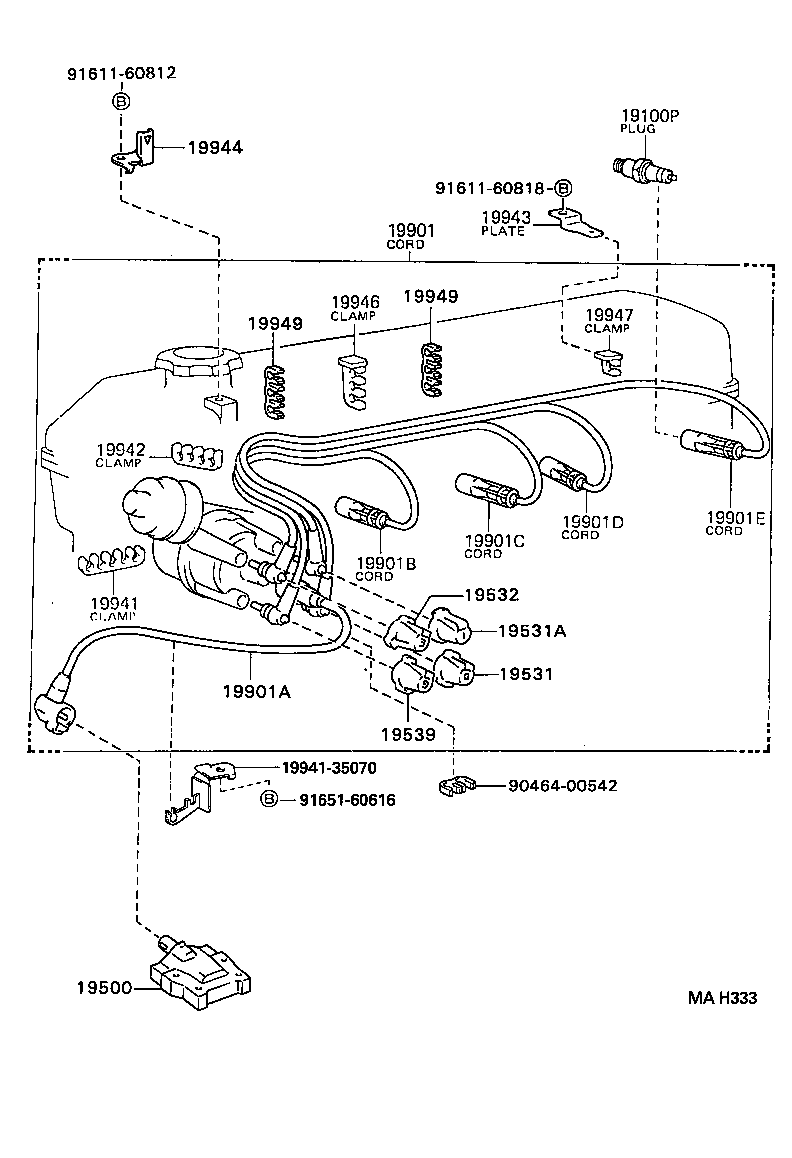

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100P - PLUG, SPARK | ||||
| 90919-01064 |
22R..RN67;22R..RN58..SR5 W16EXR-U,W16EXR-U |
4 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02197 |
22R..RN67;22R..RN58..SR5 |
1 | ||
| 19531 - HOLDER, RESISTIVE CORD, NO.1 | ||||
| 19531-46010 |
22R..RN67;22R..RN58..SR5 |
1 | ||
| 19531A - HOLDER, RESISTIVE CODE, NO.3 | ||||
| 19531-74010 |
22R..RN67;22R..RN58..SR5 |
1 | ||
| 19532 - HOLDER, RESISTIVE CODE, NO.2 | ||||
| 19532-46010 |
22R..RN67;22R..RN58..SR5 |
1 | ||
| 19539 - HOLDER, RESISTIVE CODE, NO.4 | ||||
| 19539-70010 |
22R..RN67;22R..RN58..SR5 |
1 | ||
| 19901 - CORD SET, COIL & SPARK, W/RESISTIVE | ||||
| 90919-21588 |
22R..RN67;22R..RN58..SR5 |
1 | ||
| 19901A - CORD, COIL RESISTIVE | ||||
| 90919-13458 |
22R..RN67;22R..RN58..SR5 |
1 | ||
| 19901B - CORD, SPARK PLUG RESISTIVE, NO.1 | ||||
| 90919-15368 |
22R..RN67;22R..RN58..SR5 |
1 | ||
| 19901C - CORD, SPARK PLUG RESISTIVE, NO.2 | ||||
| 90919-15369 |
22R..RN67;22R..RN58..SR5 |
1 | ||
| 19901D - CORD, SPARK PLUG RESISTIVE, NO.3 | ||||
| 90919-15370 |
22R..RN67;22R..RN58..SR5 |
1 | ||
| 19901E - CORD, SPARK PLUG RESISTIVE, NO.4 | ||||
| 90919-15371 |
22R..RN67;22R..RN58..SR5 |
1 | ||
| 19941 - CLAMP, RESISTIVE CORD, NO.1 | ||||
| 90464-00555 |
22R..RN67;22R..RN58..SR5 |
1 | ||
| 19942 - CLAMP, RESISTIVE CORD, NO.2 | ||||
| 90464-00555 |
22R..RN67;22R..RN58..SR5 |
1 | ||
| 19943 - PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1 | ||||
| 19943-35010 |
22R..RN67;22R..RN58..SR5 |
1 | ||
| 19944 - PLATE, RESISTIVE CORD CLAMP SUPPORT, NO.2 | ||||
| 19944-35020 |
22R..RN67;22R..RN58..SR5 |
1 | ||
| 19946 - CLAMP, RESISTIVE CORD, NO.3 | ||||
| 90464-00693 |
22R..RN67;22R..RN58..SR5 |
1 | ||
| 19947 - CLAMP, RESISTIVE CORD, NO.4 | ||||
| 90464-00685 |
22R..RN67;22R..RN58..SR5 |
1 | ||
| 19949 - CLAMP, RESISTIVE CORD, NO.5 | ||||
| 90464-00556 |
22R..RN67;22R..RN58..SR5 |
2 | ||
| 19949 - CLAMP, RESISTIVE CORD, NO.5 | ||||
| 90464-00556 |
22R..RN67;22R..RN58..SR5 |
2 | ||
| Common parts | ||||
| 19941-35070 | ||||
| 90464-00542 | ||||
| 91611-60812 | ||||
| 91611-60818 | ||||
| 91651-60616 | ||||
