RN58R-MSN (1994)

Toyota Hilux

Production Jul 1994 - Jul 1998
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9407- )22R

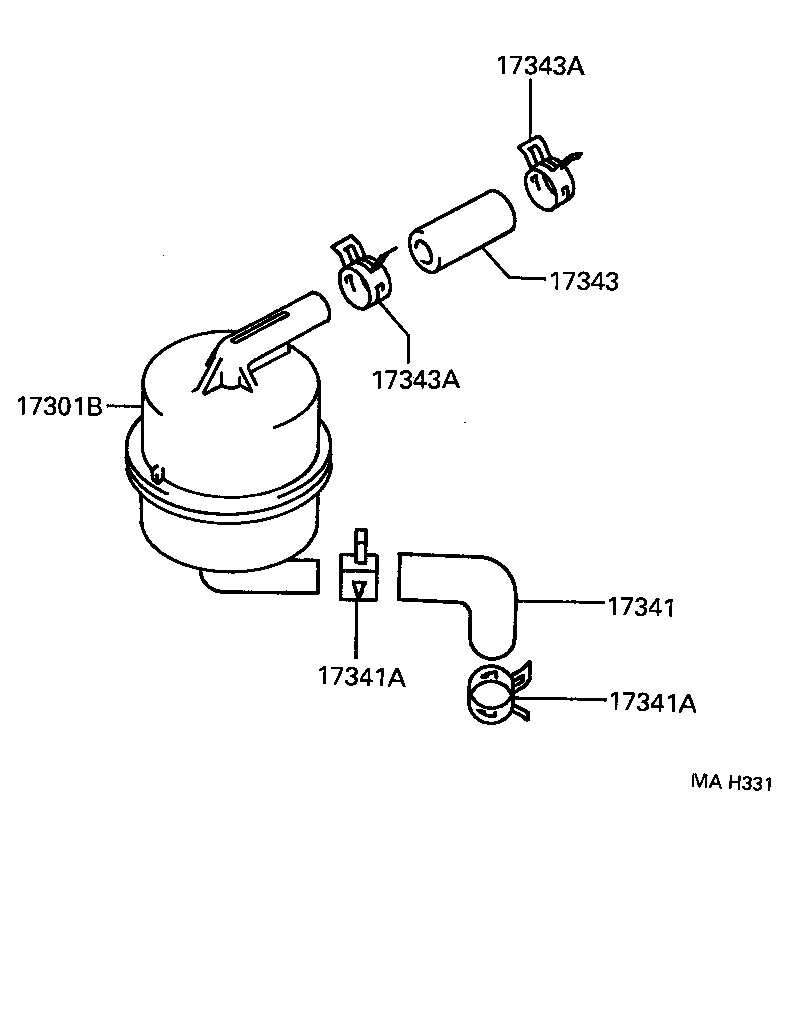

Click highlighted areas on diagram

diagram 17301B 17341 17341A 17341A 17343 17343A 17343A
Part # Description Qty Price
17301B - SILENCER SUB-ASSY, AIR SUCTION
17301-35060

22R..RN67;22R..RN58..SR5

 1
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-35170

22R..RN67;22R..RN58..SR5

 1
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-26005

22R..RN67;22R..RN58..SR5

 2
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-26005

22R..RN67;22R..RN58..SR5

 2
17343 - HOSE, NO.3(FOR AIR INJECTION SYSTEM)
17343-35030

22R..RN67;22R..RN58..SR5

 1
17343A - CLAMP OR CLIP, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3
90467-26005

22R..RN67;22R..RN58..SR5

 2
17343A - CLAMP OR CLIP, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3
90467-26005

22R..RN67;22R..RN58..SR5

 2
