RN58R-MSN (1994)

Toyota Hilux

Production Jul 1994 - Jul 1998
Engine 22R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9407- )22R

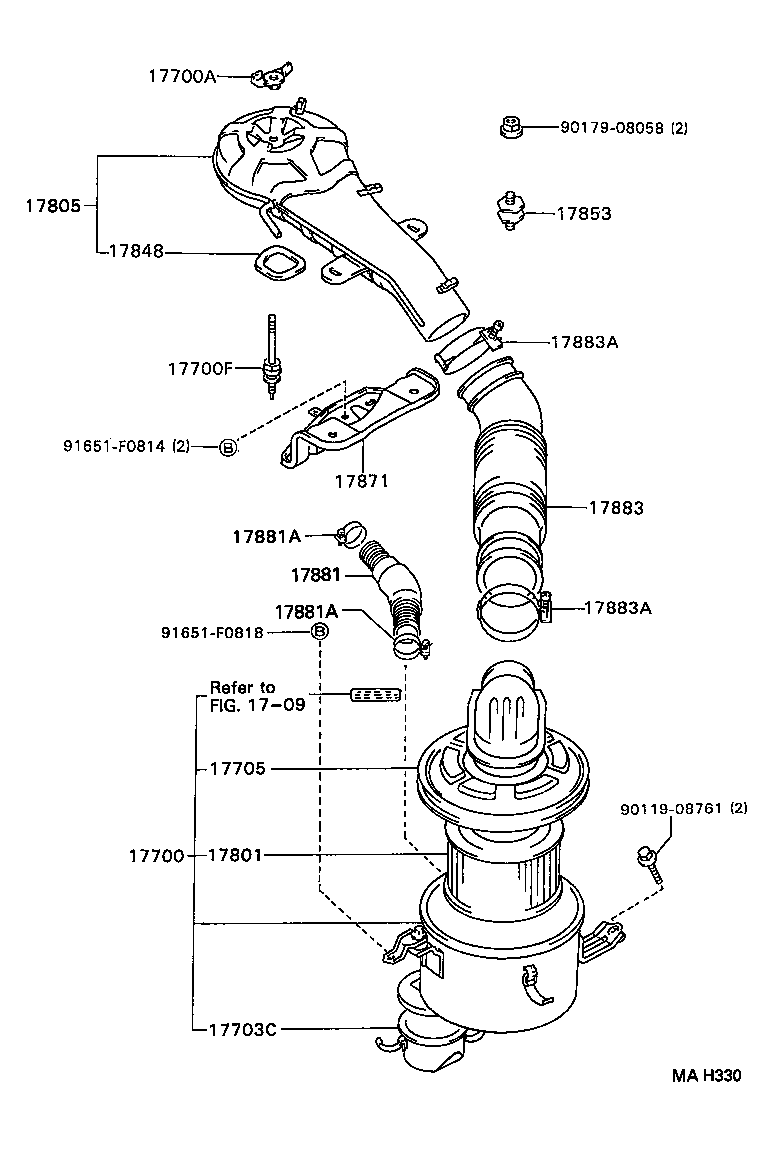

Click highlighted areas on diagram

diagram 1709 17700 17700A 17700F 17703C 17705 17801 17805 17848 17853 17871 17881 17881A 17881A 17883 17883A 17883A 9011908761 9017908058 91651F0814 91651F0818
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-35380

22R..RN67;22R..RN58..SR5

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-06013

22R..RN67;22R..RN58..SR5

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06021

22R..RN67;22R..RN58..SR5

CYCLONE TYPE

 1
17703C - CAP SUB-ASSY, DUST
17703-35010

22R..RN67;22R..RN58..SR5

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-35160

22R..RN67;22R..RN58..SR5

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-35030

22R..RN67;22R..RN58..SR5

 1
17805 - CONNECTOR SUB-ASSY, INTAKE AIR
17805-35060

22R..RN67;22R..RN58..SR5

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
17848-35010

22R..RN67;22R..RN58..SR5

 1
17848-35010

22R..RN5#

 1
17853 - INSULATOR, AIR CLEANER BRACKET
17853-35010

22R..RN67;22R..RN58..SR5

 2
17871 - STAY, AIR CONNECTOR
17871-35010

22R..RN67;22R..RN58..SR5

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-35120

22R..RN67;22R..RN58..SR5

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10460

22R..RN67;22R..RN58..SR5

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10460

22R..RN67;22R..RN58..SR5

 2
17883 - HOSE, AIR CLEANER, NO.3
17881-35050

22R..RN67;22R..RN58..SR5

 1
17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3)
96111-10780

22R..RN67;22R..RN58..SR5

CYCLONE TYPE

 2
17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3)
96111-10780

22R..RN67;22R..RN58..SR5

CYCLONE TYPE

 2
Common parts
90119-08761
90179-08058
91651-F0814
91651-F0818
Linked diagrams
1709
