RN55L-KRPV (1987)

Toyota Hilux

Production Aug 1987 - Aug 1988
Engine 22R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )RN50,55,YN5#,6#..ARL,GEN,ME,SA ; (8708-8808)YN56,67..LHD..EUR

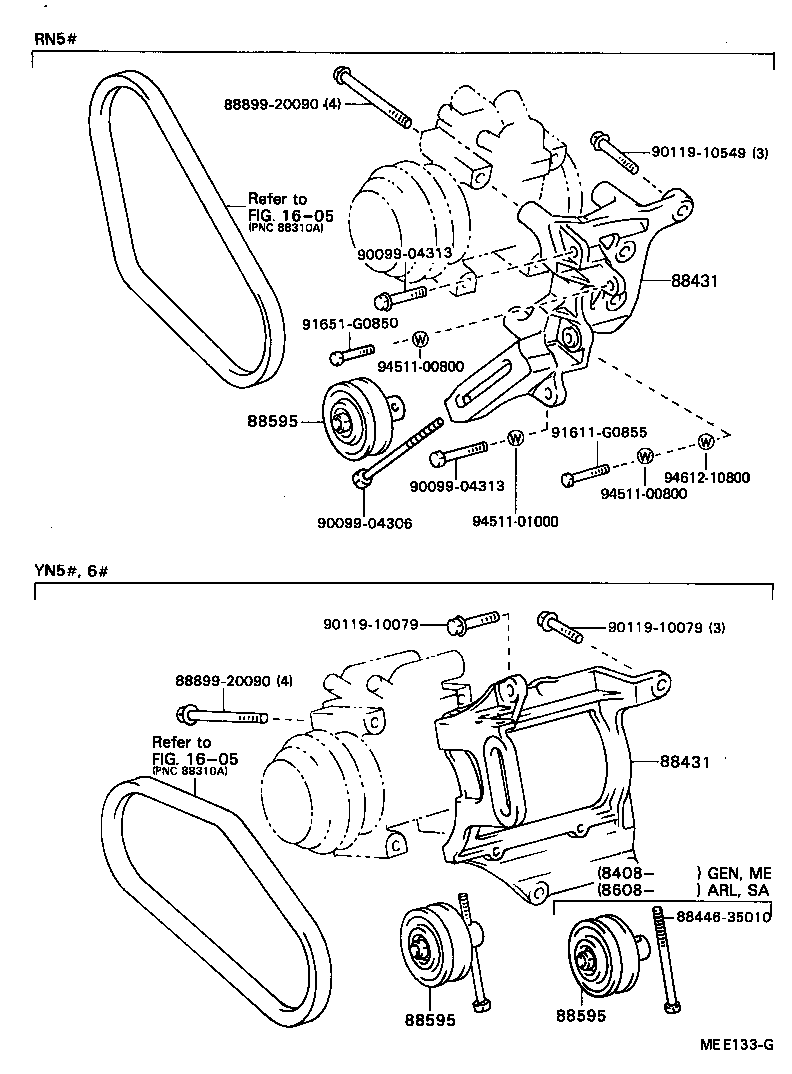

Click highlighted areas on diagram

diagram 1605 1605 88431 88431 8844635010 88595 88595 88595 8889920090 8889920090 9009904306 9009904313 9009904313 9011910079 9011910079 9011910549 91611G0855 91651G0850 9451100800 9451100800 9451101000 9461210800
Part # Description Qty Price
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-30490

YN58..4F;YN58..SR5,STD;YN50,51,52,55,56,57,60,62,65,67..(T1,T3,TW)..(4F,4FC,4H,5F)..(ARL,GEN,ME,SA)

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-30490

YN58..4F;YN58..SR5,STD;YN50,51,52,55,56,57,60,62,65,67..(T1,T3,TW)..(4F,4FC,4H,5F)..(ARL,GEN,ME,SA)

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-28050

YN50,52,55,57,6#..ARL,GEN,ME,SA

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-28050

YN50,52,55,57,6#..ARL,GEN,ME,SA

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-28050

YN50,52,55,57,6#..ARL,GEN,ME,SA

 1
Common parts
88446-35010
88899-20090
90099-04306
90099-04313
90119-10079
90119-10549
91611-G0855
91651-G0850
94511-00800
94511-01000
94612-10800
Linked diagrams
1605
