RN46R-KRW (1979)

Toyota Hilux

Production Jan 1979 - Jul 1983
Engine 18R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7901-8307)LN36,46,RN36,46

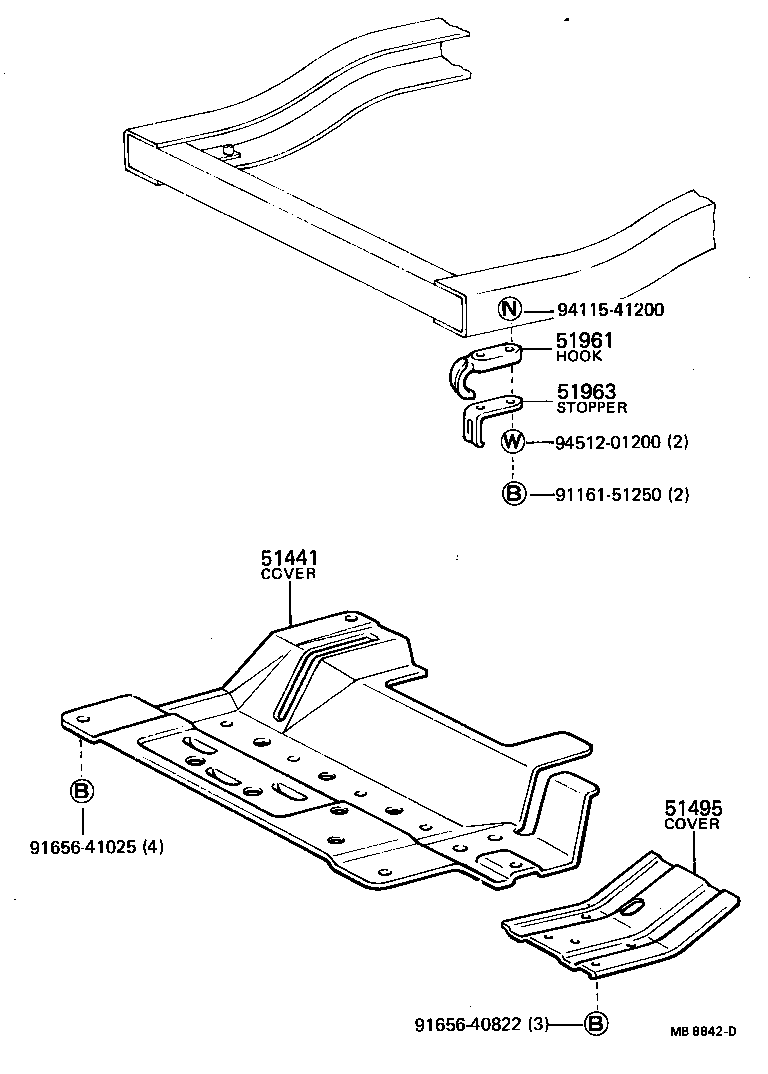

Click highlighted areas on diagram

diagram 51441 51495 51961 51963 9116151250 9165640822 9165641025 9411541200 9451201200
Part # Description Qty Price
51441 - COVER, ENGINE UNDER, NO.1
51441-35080

RN36..RHD;RN46..ARL..IV3;RN46..RHD..(EUR,GEN)

 1
51441-35081

LN36,46,RN36,46..RHD

 1
51495 - COVER, TRANSMISSION UNDER
51447-35010

LN36,46,RN36,46..STD

 1
51961 - HOOK, NO.1
51961-60010

LN36,46,RN36,46

 1
51963 - STOPPER, HOOK WIRE
51963-35010

LN36,46,RN36,46

 1
Common parts
91161-51250
91656-40822
91656-41025
94115-41200
94512-01200
