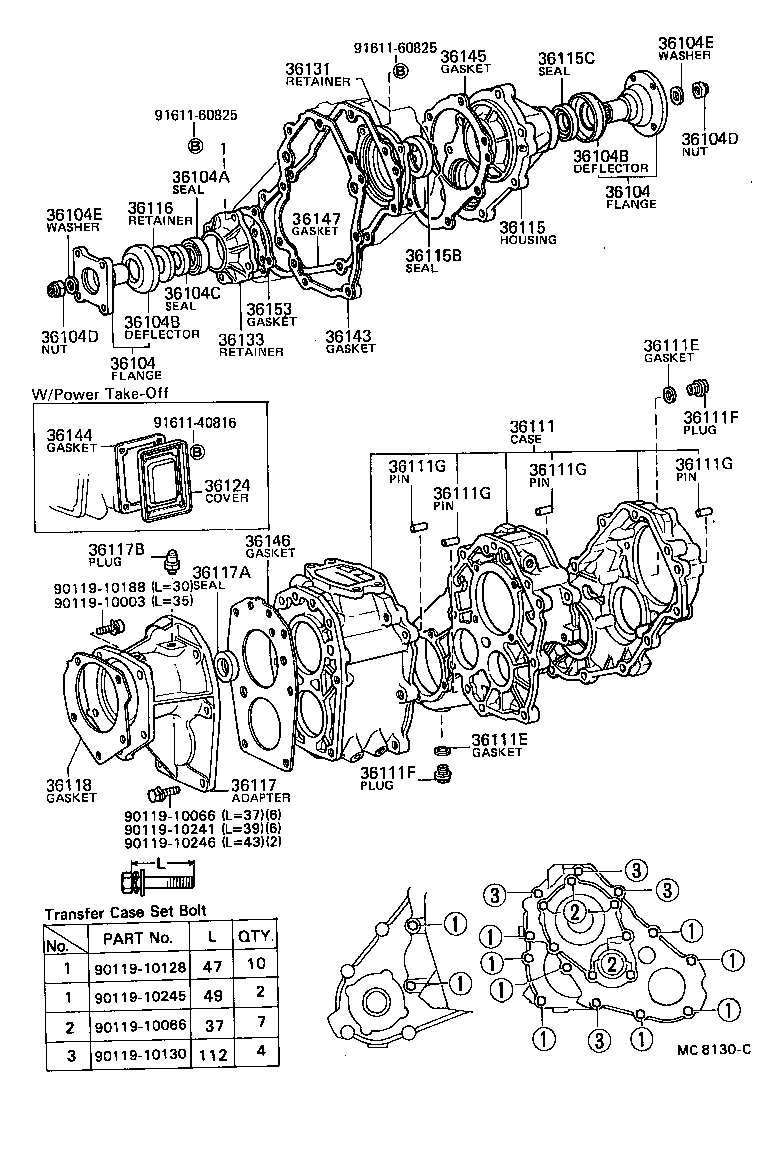

RN46R-KRW (1979)
Toyota Hilux
(8103-8307)LN36,46
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 36104 - FLANGE, COMPANION (FOR TRANSFER OUTPUT SHAFT) | ||||
| 33309-35021 |
LN36,46,RN36,46 FR DRIVE |
1 | ||
| 33309-35010 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 RR DRIVE |
1 | ||
| 33309-35011 |
LN36,46,RN36,46 RR DRIVE |
1 | ||
| 33309-35020 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 FR DRIVE |
1 | ||
| 36104 - FLANGE, COMPANION (FOR TRANSFER OUTPUT SHAFT) | ||||
| 33309-35021 |
LN36,46,RN36,46 FR DRIVE |
1 | ||
| 33309-35010 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 RR DRIVE |
1 | ||
| 33309-35011 |
LN36,46,RN36,46 RR DRIVE |
1 | ||
| 33309-35020 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 FR DRIVE |
1 | ||
| 36104A - SEAL, TYPE T, OIL (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90311-38016 |
LN36,46,RN36,46 |
1 | ||
| 36104B - DEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT) | ||||
| 33325-35020 |
LN36,46,RN36,46 |
2 | ||
| 36104B - DEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT) | ||||
| 33325-35020 |
LN36,46,RN36,46 |
2 | ||
| 36104C - SEAL, DUST (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90303-38010 |
LN36,46,RN36,46 |
1 | ||
| 36104D - NUT (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90179-20001 |
LN36,46,RN36,46 |
2 | ||
| 36104D - NUT (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90179-20001 |
LN36,46,RN36,46 |
2 | ||
| 36104E - WASHER, PLATE (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90201-20005 |
LN36,46,RN36,46 |
2 | ||
| 36104E - WASHER, PLATE (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90201-20005 |
LN36,46,RN36,46 |
2 | ||
| 36111 - CASE, TRANSFER | ||||
| 36103-35022 |
LN36,46,RN36,46..STD W/POWER TAKE-OFF |
1 | ||
| 36103-35010 |
LN36,46,RN36,46 W/O POWER TAKE-OFF |
1 | ||
| 36103-35011 |
LN36,46,RN36,46 W/O POWER TAKE-OFF |
1 | ||
| 36103-35020 |
LN36,46,RN36,46..STD W/POWER TAKE-OFF |
1 | ||
| 36103-35021 |
LN36,46,RN36,46..STD W/POWER TAKE-OFF |
1 | ||
| 36103-35012 |
LN36,46,RN36,46 W/O POWER TAKE-OFF |
1 | ||
| 36111E - GASKET (FOR TRANSFER CASE) | ||||
| 90430-18007 |
LN36,46,RN36,46 |
2 | ||
| 12157-10010 |
LN36,46,RN36,46 |
2 | ||
| 36111E - GASKET (FOR TRANSFER CASE) | ||||
| 90430-18007 |
LN36,46,RN36,46 |
2 | ||
| 12157-10010 |
LN36,46,RN36,46 |
2 | ||
| 36111F - PLUG (FOR TRANSFER CASE) | ||||
| 90341-18081 |
LN36,46,RN36,46 DRAIN PLUG |
1 | ||
| 90341-18002 |
LN36,46,RN36,46 FILLER PLUG |
1 | ||
| 90341-18006 |
LN36,46,RN36,46 FILLER PLUG |
1 | ||
| 36111F - PLUG (FOR TRANSFER CASE) | ||||
| 90341-18081 |
LN36,46,RN36,46 DRAIN PLUG |
1 | ||
| 90341-18002 |
LN36,46,RN36,46 FILLER PLUG |
1 | ||
| 90341-18006 |
LN36,46,RN36,46 FILLER PLUG |
1 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-10232 |
LN36,46,RN36,46 L=15,OD=8 |
4 | ||
| 90250-10113 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 L=22,OD=10 |
4 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-10232 |
LN36,46,RN36,46 L=15,OD=8 |
4 | ||
| 90250-10113 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 L=22,OD=10 |
4 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-10232 |
LN36,46,RN36,46 L=15,OD=8 |
4 | ||
| 90250-10113 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 L=22,OD=10 |
4 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-10232 |
LN36,46,RN36,46 L=15,OD=8 |
4 | ||
| 90250-10113 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 L=22,OD=10 |
4 | ||
| 36115 - HOUSING, TRANSFER EXTENSION | ||||
| 36115-35010 |
LN36,46,RN36,46 |
1 | ||
| 36115B - SEAL, TYPE V OIL (FOR TRANSFER EXTENSION HOUSING) | ||||
| 90312-48001 |
LN36,46,RN36,46 |
1 | ||
| 36115C - SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING) | ||||
| 90311-38140 |
LN36,46,RN36,46 |
1 | ||
| 36116 - RETAINER, TRANSFER EXTENSION HOUSING DUST SEAL | ||||
| 33145-30010 |
LN36,46,RN36,46 |
1 | ||
| 36117 - ADAPTER, TRANSFER | ||||
| 36117-35011 |
RN36..STD;RN46..EUR,GEN;RN46..ARL..IV3;LN46..T1..ARL..CBU |
1 | ||
| 36117-35011 |
RN36;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA |
1 | ||
| 36117-35010 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 |
1 | ||
| 36117-35020 |
LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN) |
1 | ||
| 36117A - SEAL, OIL(FOR TRANSFER ADAPTER) | ||||
| 90311-32009 |
LN36,46,RN36,46 |
1 | ||
| 90310-32001 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 |
1 | ||
| 36117C - PLUG, TIGHT(FOR TRANSFER ADAPTER) | ||||
| 96411-11200 |
LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN) |
1 | ||
| 36118 - GASKET, TRANSFER ADAPTER | ||||
| 33142-26010 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 |
1 | ||
| 33142-35040 |
RN36;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA |
1 | ||
| 33142-35030 |
LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN) |
1 | ||
| 36124 - COVER, TRANSFER POWER TAKE-OFF | ||||
| 33161-25010 |
LN36,46,RN36,46 |
1 | ||
| 36131 - RETAINER, TRANSFER OUTPUT SHAFT FRONT BEARING | ||||
| 36131-35010 |
LN36,46,RN36,46 |
1 | ||
| 36133 - RETAINER, TRANSFER FRONT DRIVE GEAR BEARING | ||||
| 36133-35010 |
LN36,46,RN36,46 |
1 | ||
| 36143 - GASKET, TRANSFER CASE, FRONT | ||||
| 36143-35010 |
LN36,46,RN36,46 |
1 | ||
| 36144 - GASKET, TRANSFER POWER TAKE-OFF COVER | ||||
| 33162-25010 |
LN36,46,RN36,46 |
1 | ||
| 36145 - GASKET, TRANSFER EXTENSION HOUSING | ||||
| 36145-35010 |
LN36,46,RN36,46 |
1 | ||
| 36146 - GASKET, TRANSFER REDUCTION CASE | ||||
| 36146-35010 |
LN36,46,RN36,46 |
1 | ||
| 36147 - GASKET, TRANSFER CASE | ||||
| 36141-35010 |
LN36,46,RN36,46 |
1 | ||
| 36153 - GASKET, FRONT DRIVE GEAR BEARING RETAINER | ||||
| 36153-35010 |
LN36,46,RN36,46 |
1 | ||
| Common parts | ||||
| 90119-10066 | ||||
| 90119-10128 | ||||
| 90119-10130 | ||||
| 90119-10164 | ||||
| 90119-10241 | ||||
| 90119-10245 | ||||
| 90119-10246 | ||||
| 91611-40816 | ||||
| 91611-60825 | ||||
(7901-8307)RN36,46
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 36104 - FLANGE, COMPANION (FOR TRANSFER OUTPUT SHAFT) | ||||
| 33309-35021 |
LN36,46,RN36,46 FR DRIVE |
1 | ||
| 33309-35010 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 RR DRIVE |
1 | ||
| 33309-35011 |
LN36,46,RN36,46 RR DRIVE |
1 | ||
| 33309-35020 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 FR DRIVE |
1 | ||
| 36104 - FLANGE, COMPANION (FOR TRANSFER OUTPUT SHAFT) | ||||
| 33309-35021 |
LN36,46,RN36,46 FR DRIVE |
1 | ||
| 33309-35010 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 RR DRIVE |
1 | ||
| 33309-35011 |
LN36,46,RN36,46 RR DRIVE |
1 | ||
| 33309-35020 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 FR DRIVE |
1 | ||
| 36104A - SEAL, TYPE T, OIL (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90311-38016 |
LN36,46,RN36,46 |
1 | ||
| 36104B - DEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT) | ||||
| 33325-35020 |
LN36,46,RN36,46 |
2 | ||
| 36104B - DEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT) | ||||
| 33325-35020 |
LN36,46,RN36,46 |
2 | ||
| 36104C - SEAL, DUST (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90303-38010 |
LN36,46,RN36,46 |
1 | ||
| 36104D - NUT (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90179-20001 |
LN36,46,RN36,46 |
2 | ||
| 36104D - NUT (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90179-20001 |
LN36,46,RN36,46 |
2 | ||
| 36104E - WASHER, PLATE (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90201-20005 |
LN36,46,RN36,46 |
2 | ||
| 36104E - WASHER, PLATE (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90201-20005 |
LN36,46,RN36,46 |
2 | ||
| 36111 - CASE, TRANSFER | ||||
| 36103-35022 |
LN36,46,RN36,46..STD W/POWER TAKE-OFF |
1 | ||
| 36103-35010 |
LN36,46,RN36,46 W/O POWER TAKE-OFF |
1 | ||
| 36103-35011 |
LN36,46,RN36,46 W/O POWER TAKE-OFF |
1 | ||
| 36103-35020 |
LN36,46,RN36,46..STD W/POWER TAKE-OFF |
1 | ||
| 36103-35021 |
LN36,46,RN36,46..STD W/POWER TAKE-OFF |
1 | ||
| 36103-35012 |
LN36,46,RN36,46 W/O POWER TAKE-OFF |
1 | ||
| 36111E - GASKET (FOR TRANSFER CASE) | ||||
| 90430-18007 |
LN36,46,RN36,46 |
2 | ||
| 12157-10010 |
LN36,46,RN36,46 |
2 | ||
| 36111E - GASKET (FOR TRANSFER CASE) | ||||
| 90430-18007 |
LN36,46,RN36,46 |
2 | ||
| 12157-10010 |
LN36,46,RN36,46 |
2 | ||
| 36111F - PLUG (FOR TRANSFER CASE) | ||||
| 90341-18081 |
LN36,46,RN36,46 DRAIN PLUG |
1 | ||
| 90341-18002 |
LN36,46,RN36,46 FILLER PLUG |
1 | ||
| 90341-18006 |
LN36,46,RN36,46 FILLER PLUG |
1 | ||
| 36111F - PLUG (FOR TRANSFER CASE) | ||||
| 90341-18081 |
LN36,46,RN36,46 DRAIN PLUG |
1 | ||
| 90341-18002 |
LN36,46,RN36,46 FILLER PLUG |
1 | ||
| 90341-18006 |
LN36,46,RN36,46 FILLER PLUG |
1 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-10232 |
LN36,46,RN36,46 L=15,OD=8 |
4 | ||
| 90250-10113 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 L=22,OD=10 |
4 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-10232 |
LN36,46,RN36,46 L=15,OD=8 |
4 | ||
| 90250-10113 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 L=22,OD=10 |
4 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-10232 |
LN36,46,RN36,46 L=15,OD=8 |
4 | ||
| 90250-10113 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 L=22,OD=10 |
4 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-10232 |
LN36,46,RN36,46 L=15,OD=8 |
4 | ||
| 90250-10113 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 L=22,OD=10 |
4 | ||
| 36115 - HOUSING, TRANSFER EXTENSION | ||||
| 36115-35010 |
LN36,46,RN36,46 |
1 | ||
| 36115B - SEAL, TYPE V OIL (FOR TRANSFER EXTENSION HOUSING) | ||||
| 90312-48001 |
LN36,46,RN36,46 |
1 | ||
| 36115C - SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING) | ||||
| 90311-38140 |
LN36,46,RN36,46 |
1 | ||
| 36116 - RETAINER, TRANSFER EXTENSION HOUSING DUST SEAL | ||||
| 33145-30010 |
LN36,46,RN36,46 |
1 | ||
| 36117 - ADAPTER, TRANSFER | ||||
| 36117-35011 |
RN36..STD;RN46..EUR,GEN;RN46..ARL..IV3;LN46..T1..ARL..CBU |
1 | ||
| 36117-35011 |
RN36;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA |
1 | ||
| 36117-35010 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 |
1 | ||
| 36117-35020 |
LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN) |
1 | ||
| 36117A - SEAL, OIL(FOR TRANSFER ADAPTER) | ||||
| 90311-32009 |
LN36,46,RN36,46 |
1 | ||
| 90310-32001 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 |
1 | ||
| 36117B - PLUG, BREATHER(FOR TRANSFER ADAPTER) | ||||
| 90930-03031 |
RN36..STD;RN46..EUR,GEN;RN46..ARL..IV3;LN46..T1..ARL..CBU |
2 | ||
| 90930-03031 |
RN36;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA |
2 | ||
| 36118 - GASKET, TRANSFER ADAPTER | ||||
| 33142-26010 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 |
1 | ||
| 33142-35040 |
RN36;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA |
1 | ||
| 33142-35030 |
LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN) |
1 | ||
| 36124 - COVER, TRANSFER POWER TAKE-OFF | ||||
| 33161-25010 |
LN36,46,RN36,46 |
1 | ||
| 36131 - RETAINER, TRANSFER OUTPUT SHAFT FRONT BEARING | ||||
| 36131-35010 |
LN36,46,RN36,46 |
1 | ||
| 36133 - RETAINER, TRANSFER FRONT DRIVE GEAR BEARING | ||||
| 36133-35010 |
LN36,46,RN36,46 |
1 | ||
| 36143 - GASKET, TRANSFER CASE, FRONT | ||||
| 36143-35010 |
LN36,46,RN36,46 |
1 | ||
| 36144 - GASKET, TRANSFER POWER TAKE-OFF COVER | ||||
| 33162-25010 |
LN36,46,RN36,46 |
1 | ||
| 36145 - GASKET, TRANSFER EXTENSION HOUSING | ||||
| 36145-35010 |
LN36,46,RN36,46 |
1 | ||
| 36146 - GASKET, TRANSFER REDUCTION CASE | ||||
| 36146-35010 |
LN36,46,RN36,46 |
1 | ||
| 36147 - GASKET, TRANSFER CASE | ||||
| 36141-35010 |
LN36,46,RN36,46 |
1 | ||
| 36153 - GASKET, FRONT DRIVE GEAR BEARING RETAINER | ||||
| 36153-35010 |
LN36,46,RN36,46 |
1 | ||
| Common parts | ||||
| 90119-10003 | ||||
| 90119-10066 | ||||
| 90119-10128 | ||||
| 90119-10130 | ||||
| 90119-10188 | ||||
| 90119-10241 | ||||
| 90119-10245 | ||||
| 90119-10246 | ||||
| 91611-40816 | ||||
| 91611-60825 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
