RN46R-KRW (1979)

Toyota Hilux

Production Jan 1979 - Jul 1983
Engine 18R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7901-8307)18R..RN36,46

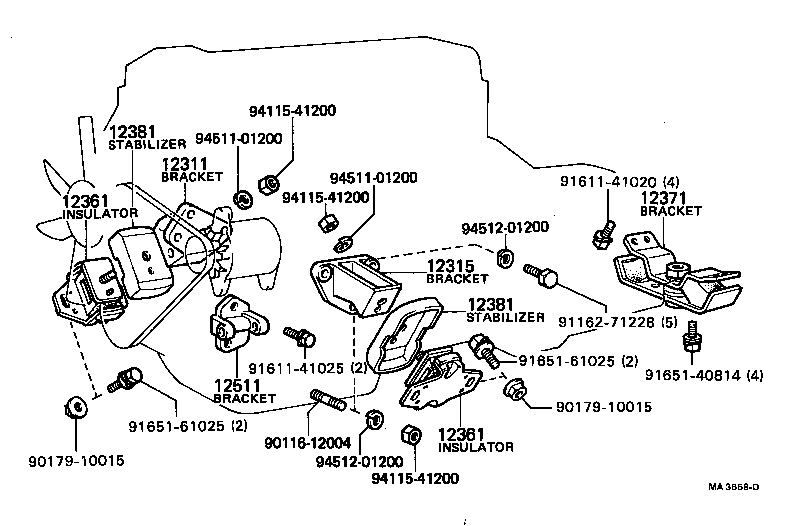

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12381 12381 12511 9011612004 9017910015 9017910015 9116271228 9161141020 9161141025 9165140814 9165161025 9165161025 9411541200 9411541200 9411541200 9451101200 9451101200 9451201200 9451201200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-34010

18R..RN36;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-34010

18R..RN36;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-38060

18R..RN36;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-38060

18R..RN36;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-38020

18R..RN36;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA

 1
12371-38020

18R..RN36,46

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-38011

18R..RN36;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-38011

18R..RN36;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA

 2
12511 - BRACKET, ALTERNATOR, NO.1
12511-33011

18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA

 1
Common parts
90116-12004
90179-10015
91162-71228
91611-41020
91611-41025
91651-40814
91651-61025
94115-41200
94511-01200
94512-01200
