RN46R-KRQ3 (1979)
Toyota Hilux
(8103-8307)LN36,46..4F

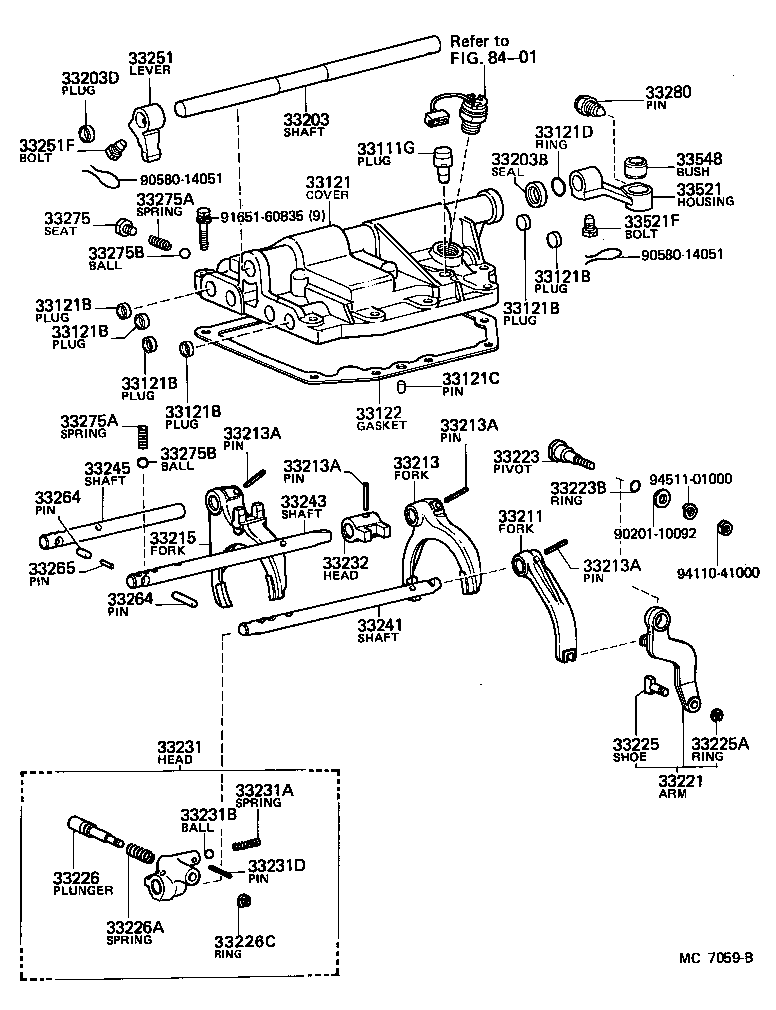

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33121 - COVER, MANUAL TRANSMISSION CASE | ||||
| 33121-35903 |
RN36;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA |
1 | ||
| 33102-35030 |
RN36;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA |
1 | ||
| 33121B - PLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER) | ||||
| 90330-20011 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F |
1 | ||
| 33121B - PLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER) | ||||
| 90330-20011 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F |
1 | ||
| 33121B - PLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER) | ||||
| 90330-20011 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F |
1 | ||
| 33121B - PLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER) | ||||
| 90330-20011 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F |
1 | ||
| 33121B - PLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER) | ||||
| 90330-20011 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F |
1 | ||
| 33121B - PLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER) | ||||
| 90330-20011 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F |
1 | ||
| 33121C - PIN(FOR TRANSMISSION CASE COVER) | ||||
| 90253-11001 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H L=11,OD=11 |
2 | ||
| 33122 - GASKET, MANUAL TRANSMISSION CASE COVER | ||||
| 33122-30020 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H |
1 | ||
| 33203 - SHAFT SUB-ASSY, SHIFT LEVER, NO.1 | ||||
| 33261-35030 |
RN36;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA |
1 | ||
| 33203B - SEAL, OIL(FOR SHIFT LEVER SHAFT) | ||||
| 90311-18002 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F |
1 | ||
| 33213 - FORK, 1ST & 2ND SHIFT | ||||
| 33212-28010 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
RN31,41;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN30,36,40..4F,4H |
3 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
RN31,41;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN30,36,40..4F,4H |
3 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
RN31,41;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN30,36,40..4F,4H |
3 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
RN31,41;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN30,36,40..4F,4H |
3 | ||
| 33215 - FORK, 3RD & 4TH SHIFT | ||||
| 33213-26020 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H |
1 | ||
| 33221 - ARM, REVERSE SHIFT | ||||
| 33221-30010 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H |
1 | ||
| 33223 - PIVOT, SHIFT ARM | ||||
| 33223-30011 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H |
1 | ||
| 33223B - RING, O(FOR SHIFT ARM PIVOT) | ||||
| 90301-08001 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H |
1 | ||
| 33231 - HEAD, REVERSE SHIFT | ||||
| 33231-26010 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H |
1 | ||
| 33231A - SPRING, REVERSE SHIFT RESTRICT | ||||
| 90501-12046 |
LN36,46;LN30,40..5F,5H |
1 | ||
| 33241 - SHAFT, REVERSE SHIFT FORK | ||||
| 33241-26010 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H |
1 | ||
| 33243 - SHAFT, 1ST & 2ND SHIFT FORK | ||||
| 33242-26010 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H |
1 | ||
| 33245 - SHAFT, 3RD & 4TH SHIFT FORK | ||||
| 33243-26010 |
RN36;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA |
1 | ||
| 33251 - LEVER, SHIFT & SELECT | ||||
| 33251-30040 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN31,36,41..4F;RN30,40..4F..(GEN,ME,PHL,SA) |
1 | ||
| 33251F - PIN OR BOLT (FOR SHIFT & SELECT LEVER) | ||||
| 33218-35010 |
LN3#,4#,RN3#,4#..4F |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 33264-30010 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H OD=6,L=16 |
2 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 33264-30010 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H OD=6,L=16 |
2 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 33265-30010 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H L=28.8,OD=6.0 |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 33275-10010 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14638 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H L=15.2 |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14638 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H L=15.2 |
1 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
LN36,46;LN30,40,RN3#,4#..4F,4H |
1 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
LN36,46;LN30,40,RN3#,4#..4F,4H |
1 | ||
| 33521 - HOUSING, SHIFT LEVER | ||||
| 33521-30020 |
RN36;RN46..EUR,GEN;RN31,46..4F..(ARL,SA)..IV3 |
1 | ||
| 33521-35030 |
RN36;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;RN31,46..4F..(ARL,SA)..IV3 |
1 | ||
| 33521F - PIN OR BOLT (FOR SHIFT LEVER HOUSING) | ||||
| 33218-35010 |
LN36,46;LN30,40,RN3#,4#..4F |
1 | ||
| 33548 - BUSH, SHIFT LEVER | ||||
| 33548-30010 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F |
1 | ||
| Common parts | ||||
| 90201-10092 | ||||
| 90580-14051 | ||||
| 91651-60835 | ||||
| 94110-41000 | ||||
| 94511-01000 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(8308-8508)LN5#,6#,YN56,6#..5F ; (8508-8903)LN5#,6#,RN5#,YN51,52,56,57,58,6#..5F ;
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08597 | ||||
| Linked diagrams | ||||
| 3312 | ||||
