RN46R-KRQ (1979)

Toyota Hilux

Production Jan 1979 - Jul 1983
Engine 18R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7901-8307)LN36,46,RN36,46

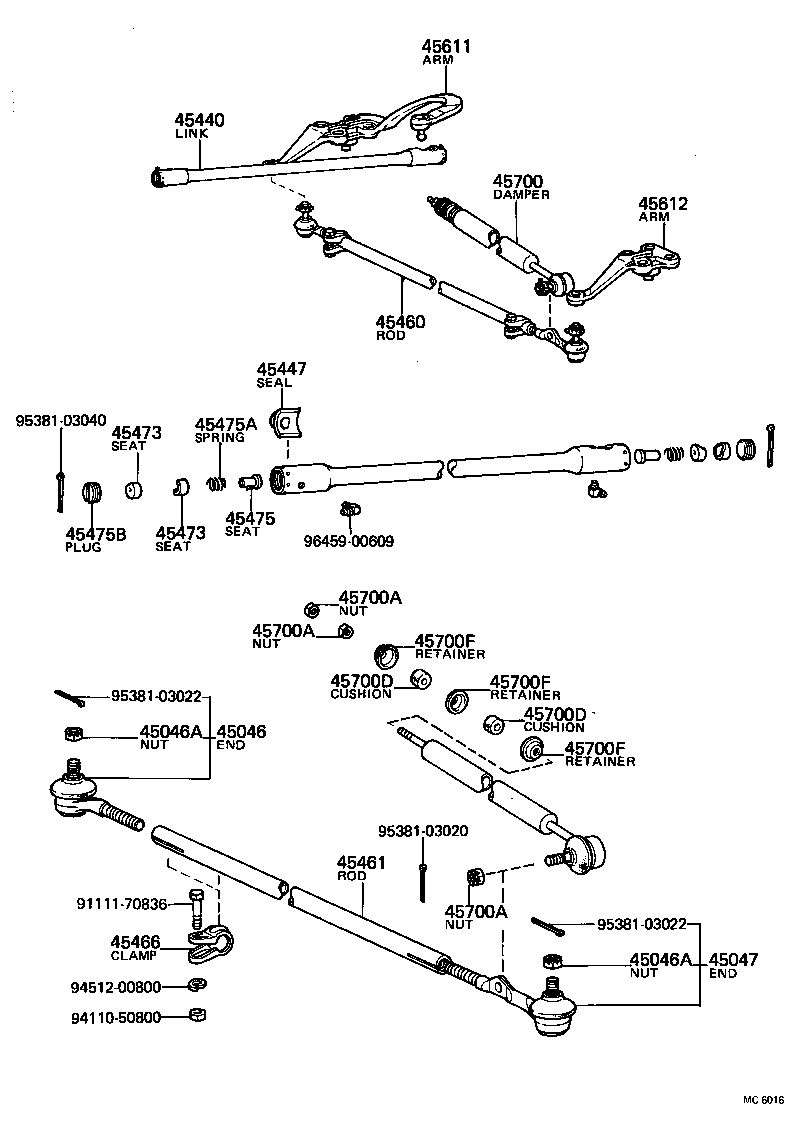

Click highlighted areas on diagram

diagram 45046 45046A 45046A 45047 45440 45447 45460 45461 45466 45473 45473 45475 45475A 45475B 45611 45612 45700 45700A 45700A 45700A 45700D 45700D 45700F 45700F 45700F 9111170836 9411050800 9451200800 9538103020 9538103022 9538103022 9538103040 9645900609
Part # Description Qty Price
45046 - END SUB-ASSY, TIE ROD, RH
45046-29115

LN36,46,RN36,46

 1
45046-39106

LN36,46,RN36,46

 1
45046-29115

LN36,46,RN36,46;LN30,40,RN30,31,40,41..ARL,EUR,ME,SA

 1
45046-29115

LN3#,4#,RN3#,4#

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-14042

LN3#,4#,RN3#,4#

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-14042

LN3#,4#,RN3#,4#

 2
45047 - END SUB-ASSY, TIE ROD, LH
45047-39076

LN36,46,RN36,46

 1
45047-39085

LN36,46,RN36,46

 1
45440 - LINK ASSY, STEERING DRAG
45440-35030

LN36,46,RN36,46..RHD

 1
45447 - SEAL, DRAG LINK DUST
45447-60010

LN36,46,RN36,46

 2
45460 - ROD ASSY, TIE, RH
45460-39116

LN36,46,RN36,46

 1
45460-39145

LN36,46,RN36,46

 1
45461 - ROD, STEERING TIE
45461-35061

LN36,46,RN36,46

 1
45461-35060

LN36,46,RN36,46

 1
45466 - CLAMP, TIE ROD END
45466-30020

LN3#,4#,RN3#,4#

 4
45473 - SEAT, BALL STUD
45473-35010

LN36,46,RN36,46

 4
45473 - SEAT, BALL STUD
45473-35010

LN36,46,RN36,46

 4
45475 - SEAT, STEERING LINK JOINT SPRING
45475-35010

LN36,46,RN36,46

 2
45475A - SPRING, COMPRESSION(FOR STEERING LINK JOINT)
90501-45114

LN36,46,RN36,46

 2
45475B - PLUG, STRAIGHT SCREW(FOR STEERING LINK JOINT)
90340-25001

LN36,46,RN36,46

 2
45611 - ARM, STEERING KNUCKLE, RH
45601-35070

LN36,46,RN36,46..RHD

 1
45612 - ARM, STEERING KNUCKLE, LH
45612-35070

LN36,46,RN36,46..RHD

 1
45700 - DAMPER ASSY, STEERING
45700-39025

LN36,46,RN36,46

 1
45700A - NUT(FOR STEERING DAMPER)
94110-40800

LN36,46,RN36,46

HOUSING X DAMPER

 2
90171-12028

LN36,46,RN36,46

TIE ROD X DAMPER

 1
45700A - NUT(FOR STEERING DAMPER)
94110-40800

LN36,46,RN36,46

HOUSING X DAMPER

 2
90171-12028

LN36,46,RN36,46

TIE ROD X DAMPER

 1
45700A - NUT(FOR STEERING DAMPER)
94110-40800

LN36,46,RN36,46

HOUSING X DAMPER

 2
90171-12028

LN36,46,RN36,46

TIE ROD X DAMPER

 1
45700D - CUSHION, STEERING DAMPER
90948-01001

LN36,46,RN36,46

 2
45700D - CUSHION, STEERING DAMPER
90948-01001

LN36,46,RN36,46

 2
45700F - RETAINER, STEERING DAMPER CUSHION
90948-02003

LN36,46,RN36,46

OD=28

 2
90948-02006

LN36,46,RN36,46

OD=26

 1
45700F - RETAINER, STEERING DAMPER CUSHION
90948-02003

LN36,46,RN36,46

OD=28

 2
90948-02006

LN36,46,RN36,46

OD=26

 1
45700F - RETAINER, STEERING DAMPER CUSHION
90948-02003

LN36,46,RN36,46

OD=28

 2
90948-02006

LN36,46,RN36,46

OD=26

 1
Common parts
91111-70836
94110-50800
94512-00800
95381-03020
95381-03022
95381-03040
96459-00609
