RN46R-KRQ (1979)
Toyota Hilux
Production
Jan 1979
-
Jul 1983
Engine
18R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7901-8307)LN36,46,RN36,46

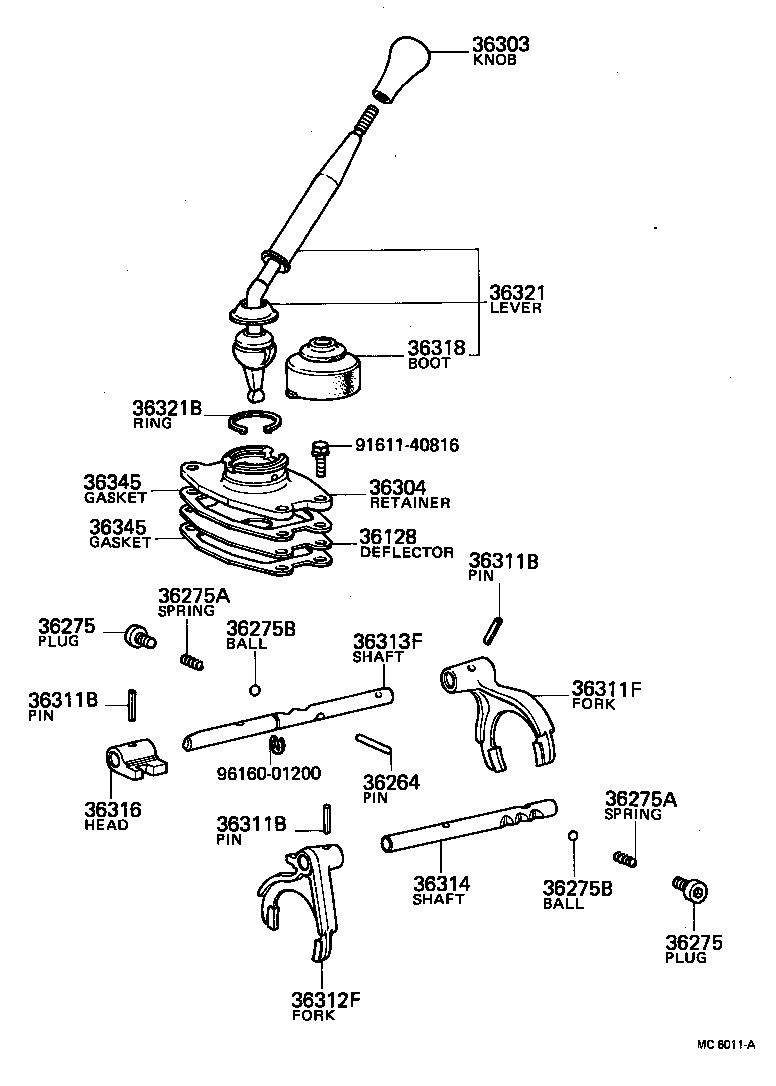

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 36128 - DEFLECTOR, BREATHER OIL | ||||
| 36128-35010 |
LN36,46,RN36,46 |
1 | ||
| 36264 - PIN OR ROLLER, SHIFT INTER-LOCK | ||||
| 90250-06005 |
LN36,46,RN36,46 L=30.8,OD=6 |
1 | ||
| 36275 - PLUG, SHIFT DETENT BALL SPRING | ||||
| 90341-10064 |
LN36,46,RN36,46 |
2 | ||
| 36275 - PLUG, SHIFT DETENT BALL SPRING | ||||
| 90341-10064 |
LN36,46,RN36,46 |
2 | ||
| 36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-13001 |
LN36,46,RN36,46 L=16.5 |
2 | ||
| 36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-13001 |
LN36,46,RN36,46 L=16.5 |
2 | ||
| 36275B - BALL, SHIFT DETENT | ||||
| 90360-08009 |
LN36,46,RN36,46 OD=7.94,STEEL |
2 | ||
| 36275B - BALL, SHIFT DETENT | ||||
| 90360-08009 |
LN36,46,RN36,46 OD=7.94,STEEL |
2 | ||
| 36303 - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 36303-35020 |
LN36,46,RN36,46 |
1 | ||
| 36304 - RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER | ||||
| 36304-35010 |
LN36,46,RN36,46 |
1 | ||
| 36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK) | ||||
| 90254-05001 |
LN36,46,RN36,46 L=22 |
3 | ||
| 36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK) | ||||
| 90254-05001 |
LN36,46,RN36,46 L=22 |
3 | ||
| 36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK) | ||||
| 90254-05001 |
LN36,46,RN36,46 L=22 |
3 | ||
| 36311F - FORK, TRANSFER GEAR SHIFT, NO.1 | ||||
| 36311-35010 |
LN36,46,RN36,46 |
1 | ||
| 36312F - FORK, TRANSFER GEAR SHIFT, NO.2 | ||||
| 36312-35010 |
LN36,46,RN36,46 |
1 | ||
| 36313F - SHAFT, TRANSFER FRONT DRIVE SHIFT FORK | ||||
| 36313-35010 |
LN36,46,RN36,46 |
1 | ||
| 36314 - SHAFT, TRANSFER HIGH AND LOW SHIFT FORK | ||||
| 36314-35010 |
LN36,46,RN36,46 |
1 | ||
| 36316 - HEAD, TRANSFER GEAR SHIFT, NO.2 | ||||
| 36316-35010 |
LN36,46,RN36,46 |
1 | ||
| 36318 - BOOT, TRANSFER FRONT DRIVE SHIFT | ||||
| 33555-20060 |
LN36,46,RN36,46 |
1 | ||
| 36321 - LEVER, TRANSFER FRONT DRIVE SHIFT | ||||
| 36360-35020 |
LN36,46,RN36,46 |
1 | ||
| 36321B - RING, HOLE SNAP (FOR TRANSFER FRONT DRIVE SHIFT LEVER) | ||||
| 90521-49003 |
LN36,46,RN36,46 |
1 | ||
| 36345 - GASKET, TRANSFER CONTROL SHIFT LEVER RETAINER | ||||
| 36345-35010 |
LN36,46,RN36,46 |
2 | ||
| 36345 - GASKET, TRANSFER CONTROL SHIFT LEVER RETAINER | ||||
| 36345-35010 |
LN36,46,RN36,46 |
2 | ||
| Common parts | ||||
| 91611-40816 | ||||
| 96160-01200 | ||||
