RN46R-KRQ (1979)

Toyota Hilux

Production Jan 1979 - Jul 1983
Engine 18R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8103-8307)LN36,46

Click highlighted areas on diagram

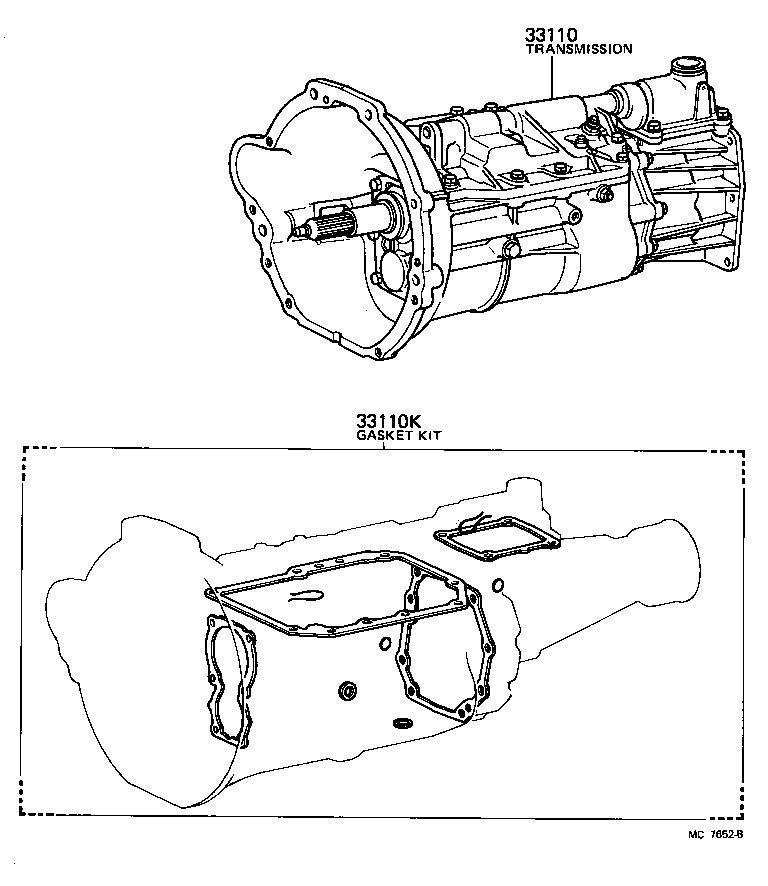

diagram 33110 33110K
Part # Description Qty Price
33110 - TRANSMISSION ASSY, MANUAL
33110-35721

LN36,46;RN46..ARL..CBU

 1
33110-35722

LN46..TW;LN46..IV3;RN46..ARL..CBU;LN36,46..T1..GEN..CBU

W/185R14C-8 TIRE

 1
33110-35721

LN46..TW;LN46..IV3;RN46..ARL..CBU;LN36,46..T1..GEN..CBU

W/185R14C-8 TIRE

 1
33110-35723

LN46..TW;LN46..IV3;RN46..ARL..CBU;LN36,46..T1..GEN..CBU

W/185R14C-8 TIRE

 1
33110K - GASKET KIT, MANUAL TRANSMISSION OVERHAUL
04331-35071

LN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)

 1

(8308-8508)YN57..4F ; (8308-8508)LN51,56..MTM ;(8308-8508)LN50,55,6#,YN56,6#..5F ;

Click highlighted areas on diagram

(9407- )RN5#,6#,YN5#,LN5#,6#..5F

diagram 04331 33110 33110
Part # Description Qty Price
