RN46R-KRQ (1979)

Toyota Hilux

Production Jan 1979 - Jul 1983
Engine 18R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7808-8307)18R..T1..ARL

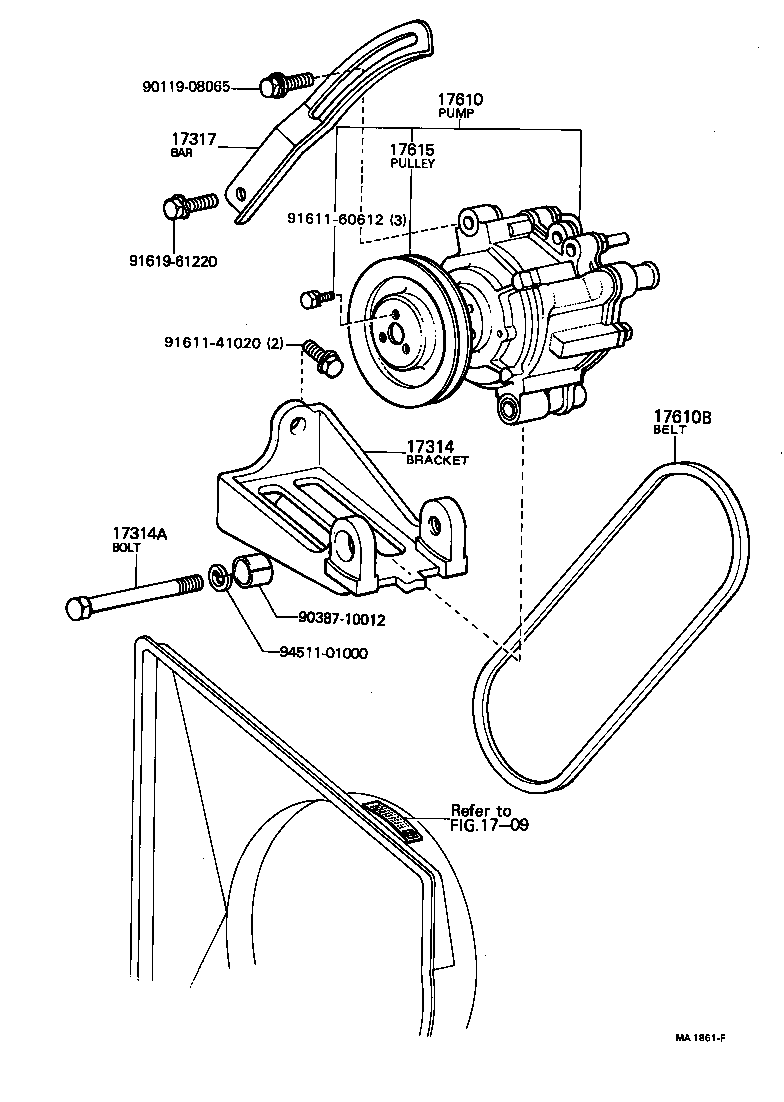

Click highlighted areas on diagram

diagram 1709 17314 17314A 17317 17610 17610B 17615 9011908065 9038710012 9161141020 9161160612 9161961220 9451101000
Part # Description Qty Price
17610 - PUMP ASSY, AIR
17610-34020

18R..RN31,36,41,46

 1
17610B - BELT, V(FOR AIR PUMP)
99521-10780

18R..RN31,36,41,46

 1
Common parts
90119-08065
90387-10012
91611-41020
91611-60612
91619-61220
94511-01000
Linked diagrams
1709
