RN46R-KR3 (1979)
Toyota Hilux
(7808-8108)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88304 - CYLINDER SUB-ASSY, COOLER COMPRESSOR | ||||
| 88304-12020 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA |
1 | ||
| 88316 - CRANKSHAFT, COOLER COMPRESSOR | ||||
| 88316-12061 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA |
1 | ||
| 88316-12060 |
RN46..IV3;RN46..GEN..CBU;RN3#,40,41..ARL,GEN,PHL,SA |
1 | ||
| 88316A - BEARING, COMPRESSOR CRANKSHAFT, FRONT | ||||
| 90099-10123 |
LN3#,4#,RN3#,4#..ARL,GEN,ME,PHL,SA |
1 | ||
| 88316C - KEY, COMPRESSOR CRANKSHAFT | ||||
| 90099-13011 |
RN46..IV3;RN46..GEN..CBU;RN3#,40,41..ARL,GEN,PHL,SA |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-35030 |
RN46..RHD..GEN;RN46..ARL..IV3;RN36..RHD..(ARL,GEN) |
1 | ||
| 88320-35080 |
LN36,46..RHD;RN46..ARL..CBU |
1 | ||
| 88320A - BOLT, THROUGH | ||||
| 90099-04923 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA |
6 | ||
| 88320B - BOLT, SERVICE VALVE | ||||
| 90099-04924 |
LN3#,4#,RN3#,4#..ARL,GEN,ME,PHL,SA |
4 | ||
| 88320K - GASKET KIT, COOLER COMPRESSOR OVERHAUL | ||||
| 04881-12020 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA |
1 | ||
| 04881-35010 |
RN46..IV3;RN46..GEN..CBU;RN3#,40,41..ARL,GEN,PHL,SA |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-12031 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA FR |
1 | ||
| 88321-12030 |
RN46..IV3;RN46..GEN..CBU;RN3#,40,41..ARL,GEN,PHL,SA FR |
1 | ||
| 88322-12010 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA RR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-12031 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA FR |
1 | ||
| 88321-12030 |
RN46..IV3;RN46..GEN..CBU;RN3#,40,41..ARL,GEN,PHL,SA FR |
1 | ||
| 88322-12010 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA RR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88306-12010 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA RR |
1 | ||
| 88305-12040 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA FR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88306-12010 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA RR |
1 | ||
| 88305-12040 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA FR |
1 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-12040 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA SMALL |
2 | ||
| 88307-12030 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA LARGE |
2 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-12040 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA SMALL |
2 | ||
| 88307-12030 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA LARGE |
2 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-12040 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA SMALL |
2 | ||
| 88307-12030 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA LARGE |
2 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-12040 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA SMALL |
2 | ||
| 88307-12030 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA LARGE |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-12010 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-12010 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA |
2 | ||
| 88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE | ||||
| 88371-12140 |
RN46..RHD..GEN;RN46..ARL..IV3;RN36..RHD..(ARL,GEN) |
1 | ||
| 88371-10020 |
LN36,46..RHD;RN46..ARL..CBU |
1 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
LN3#,4#,RN3#,4#..ARL,GEN,ME,PHL,SA |
4 | ||
| 88329 - PISTON SUB-ASSY, COOLER COMPRESSOR | ||||
| 88301-12040 |
LN3#,4#,RN3#,4#..ARL,GEN,ME,PHL,SA |
3 | ||
| 88329A - RING, COMPRESSOR PISTON SNAP | ||||
| 88317-12010 |
LN3#,4#,RN3#,4#..ARL,GEN,ME,PHL,SA |
6 | ||
| 88329B - BALL, PISTON | ||||
| 90099-12010 |
LN3#,4#,RN3#,4#..ARL,GEN,ME,PHL,SA |
6 | ||
| 88329C - SHOE, PISTON | ||||
| 88313-12060 |
LN3#,4#,RN3#,4#..ARL,GEN,ME,PHL,SA |
6 | ||
| 88332 - VALVE, COOLER COMPRESSOR DISCHARGE SERVICE | ||||
| 88372-35030 |
LN36,46..RHD;RN46..ARL..CBU |
1 | ||
| 88372-35010 |
RN46..GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41..ARL,GEN,PHL,SA |
1 | ||
| 88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT | ||||
| 88360-12071 |
LN36,46;RN46..ARL..CBU |
1 | ||
| 88360-12070 |
RN46..GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41..ARL,GEN,PHL,SA |
1 | ||
| 88364 - BEARING, COMPRESSOR CRANKSHAFT, REAR | ||||
| 90099-10123 |
LN3#,4#,RN3#,4#..ARL,GEN,ME,PHL,SA |
1 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
LN3#,4#,RN3#,4#..ARL,GEN,ME,PHL,SA |
2 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
LN3#,4#,RN3#,4#..ARL,GEN,ME,PHL,SA |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30260 |
RN46..ARL..IV3;RN46..GEN,ME,SA;LN46..T1..ARL..CBU;LN30,40,RN3#,40,41..ARL,GEN,ME,PHL,SA |
2 | ||
| 88375-30270 |
LN36,46;RN46..ARL..CBU |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30260 |
RN46..ARL..IV3;RN46..GEN,ME,SA;LN46..T1..ARL..CBU;LN30,40,RN3#,40,41..ARL,GEN,ME,PHL,SA |
2 | ||
| 88375-30270 |
LN36,46;RN46..ARL..CBU |
2 | ||

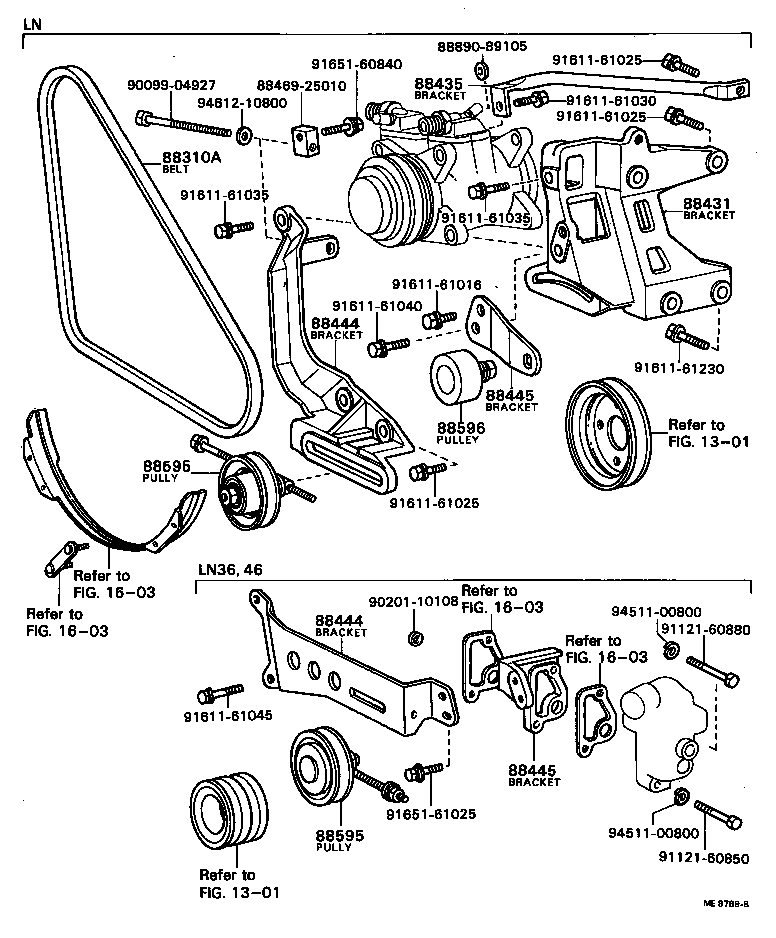

(7909- )LN3#,4#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99322-01360 |
LN36,46;RN46..ARL..CBU |
1 | ||
| 99322-01220 |
RN46..ARL..IV3;RN46..GEN,ME,SA;LN46..T1..ARL..CBU;RN31,36,41..ARL,GEN,ME,SA |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-35030 |
RN46..ARL..IV3;RN46..GEN,ME,SA;LN46..T1..ARL..CBU;RN31,36,41..ARL,GEN,ME,SA |
1 | ||
| 88431-25020 |
LN3#,4#..GEN |
1 | ||
| 88435 - BRACKET, COMPRESSOR MOUNTING, NO.5 | ||||
| 88433-25030 |
LN3#,4#..GEN |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-22030 |
RN46..ARL..IV3;RN46..GEN,ME,SA;LN46..T1..ARL..CBU;RN31,36,41..ARL,GEN,ME,SA |
1 | ||
| 88444-26040 |
LN36,46;RN46..ARL..CBU |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-22030 |
RN46..ARL..IV3;RN46..GEN,ME,SA;LN46..T1..ARL..CBU;RN31,36,41..ARL,GEN,ME,SA |
1 | ||
| 88444-26040 |
LN36,46;RN46..ARL..CBU |
1 | ||
| 88445 - BRACKET, IDLE PULLEY | ||||
| 88444-26050 |
LN36,46;RN46..ARL..CBU |
1 | ||
| 88445 - BRACKET, IDLE PULLEY | ||||
| 88444-26050 |
LN36,46;RN46..ARL..CBU |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-30250 |
RN46..ARL..IV3;RN46..GEN,ME,SA;LN46..T1..ARL..CBU;RN3#,40,41..ARL,GEN,ME,PHL,SA |
1 | ||
| 88440-26030 |
LN36,46;RN46..ARL..CBU |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-30250 |
RN46..ARL..IV3;RN46..GEN,ME,SA;LN46..T1..ARL..CBU;RN3#,40,41..ARL,GEN,ME,PHL,SA |
1 | ||
| 88440-26030 |
LN36,46;RN46..ARL..CBU |
1 | ||
| Common parts | ||||
| 88469-25010 | ||||
| 88890-89105 | ||||
| 90099-04927 | ||||
| 90201-10108 | ||||
| 91121-60850 | ||||
| 91121-60880 | ||||
| 91611-61016 | ||||
| 91611-61025 | ||||
| 91611-61030 | ||||
| 91611-61035 | ||||
| 91611-61040 | ||||
| 91611-61045 | ||||
| 91611-61230 | ||||
| 91651-60840 | ||||
| 91651-61025 | ||||
| 94511-00800 | ||||
| 94612-10800 | ||||
| Linked diagrams | ||||
| 1301 | ||||
| 1603 | ||||
(8108- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88304 - CYLINDER SUB-ASSY, COOLER COMPRESSOR | ||||
| 88304-12020 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA |
1 | ||
| 88316 - CRANKSHAFT, COOLER COMPRESSOR | ||||
| 88316-12061 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA |
1 | ||
| 88316-12060 |
RN46..IV3;RN46..GEN..CBU;RN3#,40,41..ARL,GEN,PHL,SA |
1 | ||
| 88316A - BEARING, COMPRESSOR CRANKSHAFT, FRONT | ||||
| 90099-10123 |
LN3#,4#,RN3#,4#..ARL,GEN,ME,PHL,SA |
1 | ||
| 88316C - KEY, COMPRESSOR CRANKSHAFT | ||||
| 90099-13011 |
RN46..IV3;RN46..GEN..CBU;RN3#,40,41..ARL,GEN,PHL,SA |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-35030 |
RN46..RHD..GEN;RN46..ARL..IV3;RN36..RHD..(ARL,GEN) |
1 | ||
| 88320-35080 |
LN36,46..RHD;RN46..ARL..CBU |
1 | ||
| 88320A - BOLT, THROUGH | ||||
| 90099-04923 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA |
6 | ||
| 88320B - BOLT, SERVICE VALVE | ||||
| 90099-04924 |
LN3#,4#,RN3#,4#..ARL,GEN,ME,PHL,SA |
4 | ||
| 88320K - GASKET KIT, COOLER COMPRESSOR OVERHAUL | ||||
| 04881-12020 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA |
1 | ||
| 04881-35010 |
RN46..IV3;RN46..GEN..CBU;RN3#,40,41..ARL,GEN,PHL,SA |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-12031 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA FR |
1 | ||
| 88321-12030 |
RN46..IV3;RN46..GEN..CBU;RN3#,40,41..ARL,GEN,PHL,SA FR |
1 | ||
| 88322-12010 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA RR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-12031 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA FR |
1 | ||
| 88321-12030 |
RN46..IV3;RN46..GEN..CBU;RN3#,40,41..ARL,GEN,PHL,SA FR |
1 | ||
| 88322-12010 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA RR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88306-12010 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA RR |
1 | ||
| 88305-12040 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA FR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88306-12010 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA RR |
1 | ||
| 88305-12040 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA FR |
1 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-12040 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA SMALL |
2 | ||
| 88307-12030 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA LARGE |
2 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-12040 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA SMALL |
2 | ||
| 88307-12030 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA LARGE |
2 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-12040 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA SMALL |
2 | ||
| 88307-12030 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA LARGE |
2 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-12040 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA SMALL |
2 | ||
| 88307-12030 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA LARGE |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-12010 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-12010 |
LN3#,4#,RN3#,4#..ARL,GEN,PHL,SA |
2 | ||
| 88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE | ||||
| 88371-12140 |
RN46..RHD..GEN;RN46..ARL..IV3;RN36..RHD..(ARL,GEN) |
1 | ||
| 88371-10020 |
LN36,46..RHD;RN46..ARL..CBU |
1 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
LN3#,4#,RN3#,4#..ARL,GEN,ME,PHL,SA |
4 | ||
| 88329 - PISTON SUB-ASSY, COOLER COMPRESSOR | ||||
| 88301-12040 |
LN3#,4#,RN3#,4#..ARL,GEN,ME,PHL,SA |
3 | ||
| 88329A - RING, COMPRESSOR PISTON SNAP | ||||
| 88317-12010 |
LN3#,4#,RN3#,4#..ARL,GEN,ME,PHL,SA |
6 | ||
| 88329B - BALL, PISTON | ||||
| 90099-12010 |
LN3#,4#,RN3#,4#..ARL,GEN,ME,PHL,SA |
6 | ||
| 88329C - SHOE, PISTON | ||||
| 88313-12060 |
LN3#,4#,RN3#,4#..ARL,GEN,ME,PHL,SA |
6 | ||
| 88332 - VALVE, COOLER COMPRESSOR DISCHARGE SERVICE | ||||
| 88372-35030 |
LN36,46..RHD;RN46..ARL..CBU |
1 | ||
| 88372-35010 |
RN46..GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41..ARL,GEN,PHL,SA |
1 | ||
| 88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT | ||||
| 88360-12071 |
LN36,46;RN46..ARL..CBU |
1 | ||
| 88360-12070 |
RN46..GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41..ARL,GEN,PHL,SA |
1 | ||
| 88364 - BEARING, COMPRESSOR CRANKSHAFT, REAR | ||||
| 90099-10123 |
LN3#,4#,RN3#,4#..ARL,GEN,ME,PHL,SA |
1 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
LN3#,4#,RN3#,4#..ARL,GEN,ME,PHL,SA |
2 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
LN3#,4#,RN3#,4#..ARL,GEN,ME,PHL,SA |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30260 |
RN46..ARL..IV3;RN46..GEN,ME,SA;LN46..T1..ARL..CBU;LN30,40,RN3#,40,41..ARL,GEN,ME,PHL,SA |
2 | ||
| 88375-30270 |
LN36,46;RN46..ARL..CBU |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30260 |
RN46..ARL..IV3;RN46..GEN,ME,SA;LN46..T1..ARL..CBU;LN30,40,RN3#,40,41..ARL,GEN,ME,PHL,SA |
2 | ||
| 88375-30270 |
LN36,46;RN46..ARL..CBU |
2 | ||
(8308- )RN50,55,YN5#,6#..ARL,GEN,ME,SA ; (8708-8808)YN56,67..LHD..EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88446-35010 | ||||
| 88899-20090 | ||||
| 90099-04306 | ||||
| 90099-04313 | ||||
| 90119-10079 | ||||
| 90119-10549 | ||||
| 91611-G0855 | ||||
| 91651-G0850 | ||||
| 94511-00800 | ||||
| 94511-01000 | ||||
| 94612-10800 | ||||
| Linked diagrams | ||||
| 1605 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
