RN46R-KR3 (1979)
Toyota Hilux

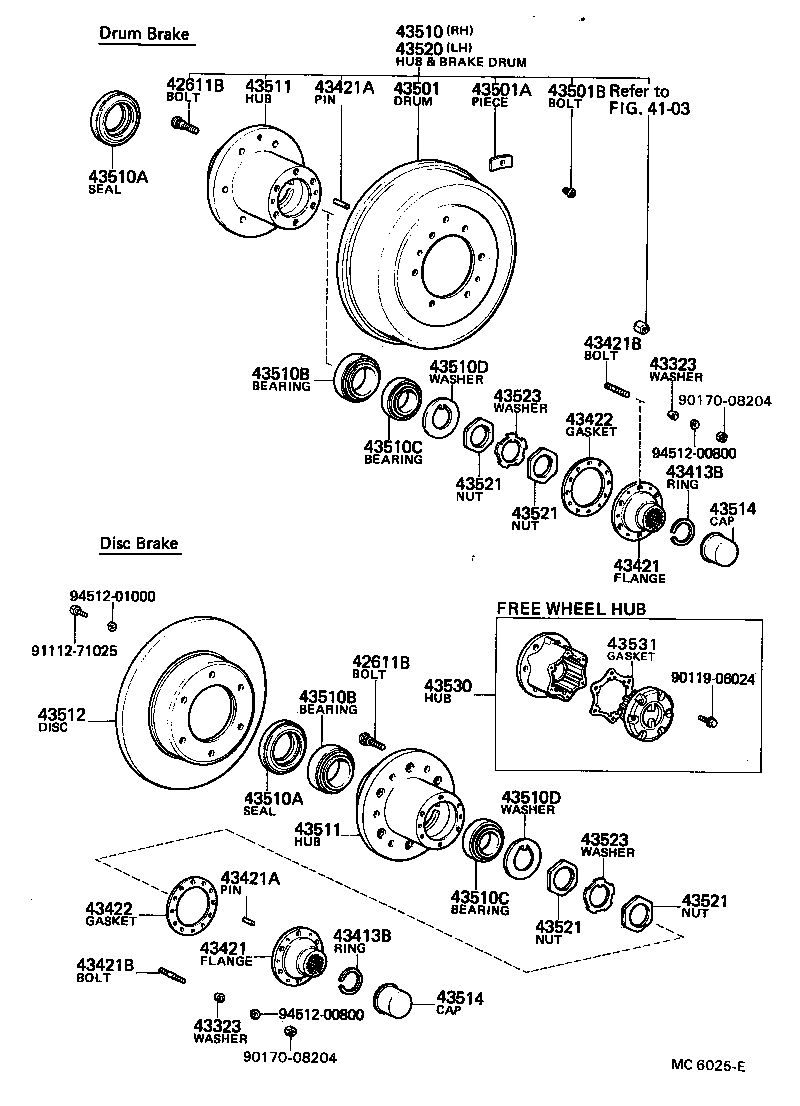

(7901-8008)RN36,46
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42611B - BOLT, HUB (FOR FRONT AXLE) | ||||
| 90942-02044 |
LN36,46,RN36,46 FR DISC BRAKE |
12 | ||
| 90942-02014 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 FR DISC BRAKE |
12 | ||
| 90942-02034 |
LN36,46,RN36,46..GEN,ME FR DRUM BRAKE |
12 | ||
| 42611B - BOLT, HUB (FOR FRONT AXLE) | ||||
| 90942-02044 |
LN36,46,RN36,46 FR DISC BRAKE |
12 | ||
| 90942-02014 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 FR DISC BRAKE |
12 | ||
| 90942-02034 |
LN36,46,RN36,46..GEN,ME FR DRUM BRAKE |
12 | ||
| 43323 - WASHER, CONE (FOR FRONT AXLE SHAFT) | ||||
| 42323-60010 |
LN36,46,RN36,46 |
12 | ||
| 43323 - WASHER, CONE (FOR FRONT AXLE SHAFT) | ||||
| 42323-60010 |
LN36,46,RN36,46 |
12 | ||
| 43413B - RING, DRIVE SHAFT SNAP | ||||
| 90520-31001 |
LN36,46,RN36,46 |
2 | ||
| 43413B - RING, DRIVE SHAFT SNAP | ||||
| 90520-31001 |
LN36,46,RN36,46 |
2 | ||
| 43421 - FLANGE, FRONT AXLE OUTER SHAFT | ||||
| 43421-60013 |
LN36,46,RN36,46 |
2 | ||
| 43421 - FLANGE, FRONT AXLE OUTER SHAFT | ||||
| 43421-60013 |
LN36,46,RN36,46 |
2 | ||
| 43421A - PIN, STRAIGHT (FOR FRONT AXLE OUTER SHAFT FLANGE) | ||||
| 90250-07057 |
LN36,46,RN36,46 |
4 | ||
| 43421A - PIN, STRAIGHT (FOR FRONT AXLE OUTER SHAFT FLANGE) | ||||
| 90250-07057 |
LN36,46,RN36,46 |
4 | ||
| 43421B - BOLT, STUD (FOR FRONT AXLE OUTER SHAFT FLANGE) | ||||
| 90116-08325 |
LN36,46,RN36,46 |
12 | ||
| 43421B - BOLT, STUD (FOR FRONT AXLE OUTER SHAFT FLANGE) | ||||
| 90116-08325 |
LN36,46,RN36,46 |
12 | ||
| 43422 - GASKET, FRONT AXLE OUTER SHAFT FLANGE | ||||
| 43422-60010 |
LN36,46,RN36,46 |
2 | ||
| 43422 - GASKET, FRONT AXLE OUTER SHAFT FLANGE | ||||
| 43422-60010 |
LN36,46,RN36,46 |
2 | ||
| 43501 - DRUM SUB-ASSY, FRONT BRAKE | ||||
| 43512-35050 |
LN36,46,RN36,46..GEN,ME |
2 | ||
| 43501A - PIECE, BALANCE (FOR FRONT BRAKE DRUM) | ||||
| 90937-01120 |
LN36,46,RN36,46..GEN,ME 40G,40G |
1 | ||
| 90937-01119 |
LN36,46,RN36,46..GEN,ME 30G,30G |
1 | ||
| 90937-01117 |
LN36,46,RN36,46..GEN,ME 10G,10G |
1 | ||
| 90937-01118 |
LN36,46,RN36,46..GEN,ME 20G,20G |
1 | ||
| 90937-01121 |
LN36,46,RN36,46..GEN,ME 50G,50G |
1 | ||
| 90937-01122 |
LN36,46,RN36,46..GEN,ME 60G,60G |
1 | ||
| 43501B - BOLT, SET (FOR FRONT BRAKE DRUM SETTING) | ||||
| 90113-10035 |
LN36,46,RN36,46..GEN,ME |
2 | ||
| 43510 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH | ||||
| 43510-35070 |
RN36,46..GEN |
1 | ||
| 43510-35071 |
LN36,46,RN36,46..GEN,ME |
1 | ||
| 43510A - SEAL, OIL (FOR FRONT AXLE HUB) | ||||
| 90311-62001 |
LN36,46,RN36,46 |
2 | ||
| 43510A - SEAL, OIL (FOR FRONT AXLE HUB) | ||||
| 90311-62001 |
LN36,46,RN36,46 |
2 | ||
| 43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING) | ||||
| 90368-49084 |
LN36,46,RN36,46 |
2 | ||
| 43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING) | ||||
| 90368-49084 |
LN36,46,RN36,46 |
2 | ||
| 43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING) | ||||
| 90368-45087 |
LN36,46,RN36,46 |
2 | ||
| 43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING) | ||||
| 90368-45087 |
LN36,46,RN36,46 |
2 | ||
| 43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER) | ||||
| 90214-42030 |
LN36,46,RN36,46 |
2 | ||
| 43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER) | ||||
| 90214-42030 |
LN36,46,RN36,46 |
2 | ||
| 43511 - HUB, FRONT AXLE | ||||
| 43511-60021 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 FR DISC BRAKE |
2 | ||
| 43511-60012 |
LN36,46,RN36,46..GEN,ME FR DRUM BRAKE |
2 | ||
| 43502-60020 |
LN36,46,RN36,46 FR DISC BRAKE |
2 | ||
| 43511 - HUB, FRONT AXLE | ||||
| 43511-60021 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 FR DISC BRAKE |
2 | ||
| 43511-60012 |
LN36,46,RN36,46..GEN,ME FR DRUM BRAKE |
2 | ||
| 43502-60020 |
LN36,46,RN36,46 FR DISC BRAKE |
2 | ||
| 43512 - DISC, FRONT | ||||
| 43512-35070 |
LN36,46,RN36,46 |
2 | ||
| 43512-35040 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 |
2 | ||
| 43514 - CAP, FRONT HUB GREASE | ||||
| 43423-60011 |
LN36,46,RN36,46 |
2 | ||
| 43514 - CAP, FRONT HUB GREASE | ||||
| 43423-60011 |
LN36,46,RN36,46 |
2 | ||
| 43520 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH | ||||
| 43510-35070 |
RN36,46..GEN |
1 | ||
| 43510-35071 |
LN36,46,RN36,46..GEN,ME |
1 | ||
| 43521 - NUT, FRONT WHEEL ADJUSTING | ||||
| 43521-60011 |
LN36,46,RN36,46 |
4 | ||
| 43521 - NUT, FRONT WHEEL ADJUSTING | ||||
| 43521-60011 |
LN36,46,RN36,46 |
4 | ||
| 43521 - NUT, FRONT WHEEL ADJUSTING | ||||
| 43521-60011 |
LN36,46,RN36,46 |
4 | ||
| 43521 - NUT, FRONT WHEEL ADJUSTING | ||||
| 43521-60011 |
LN36,46,RN36,46 |
4 | ||
| 43523 - WASHER, FRONT WHEEL ADJUSTING LOCK | ||||
| 90215-42025 |
LN36,46,RN36,46 |
2 | ||
| 43523 - WASHER, FRONT WHEEL ADJUSTING LOCK | ||||
| 90215-42025 |
LN36,46,RN36,46 |
2 | ||
| 43530 - HUB ASSY, FREE WHEEL | ||||
| 43530-39015 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 |
2 | ||
| 43530-39016 |
LN36,46,RN36,46 |
2 | ||
| 43530-39017 |
LN36,46,RN36,46..STD |
2 | ||
| 43531 - GASKET, FREE WHEEL HUB | ||||
| 43531-60010 |
LN36,46,RN36,46..STD |
2 | ||
| Common parts | ||||
| 90119-06024 | ||||
| 90170-08204 | ||||
| 91112-71025 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| Linked diagrams | ||||
| 4103 | ||||

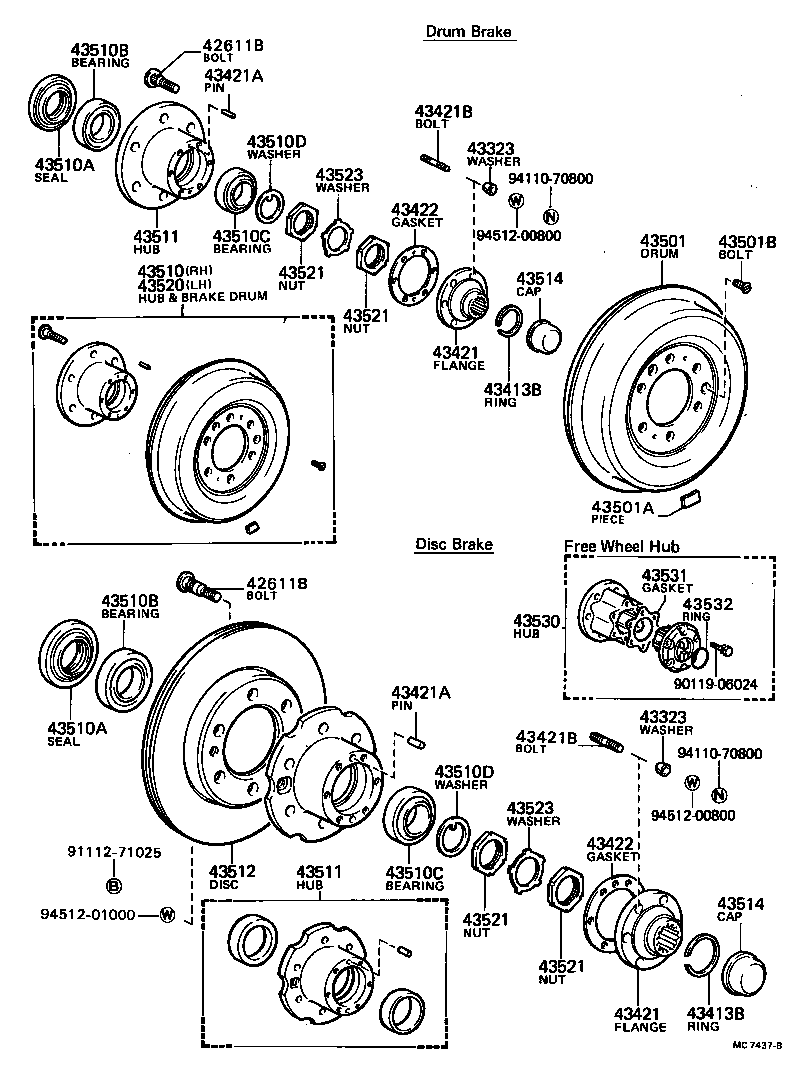

(8008-8307)LN36,46,RN36,46
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42611B - BOLT, HUB (FOR FRONT AXLE) | ||||
| 90942-02044 |
LN36,46,RN36,46 FR DISC BRAKE |
12 | ||
| 90942-02014 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 FR DISC BRAKE |
12 | ||
| 90942-02034 |
LN36,46,RN36,46..GEN,ME FR DRUM BRAKE |
12 | ||
| 42611B - BOLT, HUB (FOR FRONT AXLE) | ||||
| 90942-02044 |
LN36,46,RN36,46 FR DISC BRAKE |
12 | ||
| 90942-02014 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 FR DISC BRAKE |
12 | ||
| 90942-02034 |
LN36,46,RN36,46..GEN,ME FR DRUM BRAKE |
12 | ||
| 43323 - WASHER, CONE (FOR FRONT AXLE SHAFT) | ||||
| 42323-60010 |
LN36,46,RN36,46 |
12 | ||
| 43323 - WASHER, CONE (FOR FRONT AXLE SHAFT) | ||||
| 42323-60010 |
LN36,46,RN36,46 |
12 | ||
| 43413B - RING, DRIVE SHAFT SNAP | ||||
| 90520-31001 |
LN36,46,RN36,46 |
2 | ||
| 43413B - RING, DRIVE SHAFT SNAP | ||||
| 90520-31001 |
LN36,46,RN36,46 |
2 | ||
| 43421 - FLANGE, FRONT AXLE OUTER SHAFT | ||||
| 43421-60013 |
LN36,46,RN36,46 |
2 | ||
| 43421 - FLANGE, FRONT AXLE OUTER SHAFT | ||||
| 43421-60013 |
LN36,46,RN36,46 |
2 | ||
| 43421A - PIN, STRAIGHT (FOR FRONT AXLE OUTER SHAFT FLANGE) | ||||
| 90250-07057 |
LN36,46,RN36,46 |
4 | ||
| 43421A - PIN, STRAIGHT (FOR FRONT AXLE OUTER SHAFT FLANGE) | ||||
| 90250-07057 |
LN36,46,RN36,46 |
4 | ||
| 43421B - BOLT, STUD (FOR FRONT AXLE OUTER SHAFT FLANGE) | ||||
| 90116-08325 |
LN36,46,RN36,46 |
12 | ||
| 43421B - BOLT, STUD (FOR FRONT AXLE OUTER SHAFT FLANGE) | ||||
| 90116-08325 |
LN36,46,RN36,46 |
12 | ||
| 43422 - GASKET, FRONT AXLE OUTER SHAFT FLANGE | ||||
| 43422-60010 |
LN36,46,RN36,46 |
2 | ||
| 43422 - GASKET, FRONT AXLE OUTER SHAFT FLANGE | ||||
| 43422-60010 |
LN36,46,RN36,46 |
2 | ||
| 43501 - DRUM SUB-ASSY, FRONT BRAKE | ||||
| 43512-35050 |
LN36,46,RN36,46..GEN,ME |
2 | ||
| 43501A - PIECE, BALANCE (FOR FRONT BRAKE DRUM) | ||||
| 90937-01120 |
LN36,46,RN36,46..GEN,ME 40G,40G |
1 | ||
| 90937-01119 |
LN36,46,RN36,46..GEN,ME 30G,30G |
1 | ||
| 90937-01117 |
LN36,46,RN36,46..GEN,ME 10G,10G |
1 | ||
| 90937-01118 |
LN36,46,RN36,46..GEN,ME 20G,20G |
1 | ||
| 90937-01121 |
LN36,46,RN36,46..GEN,ME 50G,50G |
1 | ||
| 90937-01122 |
LN36,46,RN36,46..GEN,ME 60G,60G |
1 | ||
| 43501B - BOLT, SET (FOR FRONT BRAKE DRUM SETTING) | ||||
| 90113-10035 |
LN36,46,RN36,46..GEN,ME |
2 | ||
| 43510 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH | ||||
| 43510-35070 |
RN36,46..GEN |
1 | ||
| 43510-35071 |
LN36,46,RN36,46..GEN,ME |
1 | ||
| 43510A - SEAL, OIL (FOR FRONT AXLE HUB) | ||||
| 90311-62001 |
LN36,46,RN36,46 |
2 | ||
| 43510A - SEAL, OIL (FOR FRONT AXLE HUB) | ||||
| 90311-62001 |
LN36,46,RN36,46 |
2 | ||
| 43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING) | ||||
| 90368-49084 |
LN36,46,RN36,46 |
2 | ||
| 43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING) | ||||
| 90368-49084 |
LN36,46,RN36,46 |
2 | ||
| 43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING) | ||||
| 90368-45087 |
LN36,46,RN36,46 |
2 | ||
| 43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING) | ||||
| 90368-45087 |
LN36,46,RN36,46 |
2 | ||
| 43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER) | ||||
| 90214-42030 |
LN36,46,RN36,46 |
2 | ||
| 43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER) | ||||
| 90214-42030 |
LN36,46,RN36,46 |
2 | ||
| 43511 - HUB, FRONT AXLE | ||||
| 43511-60021 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 FR DISC BRAKE |
2 | ||
| 43511-60012 |
LN36,46,RN36,46..GEN,ME FR DRUM BRAKE |
2 | ||
| 43502-60020 |
LN36,46,RN36,46 FR DISC BRAKE |
2 | ||
| 43511 - HUB, FRONT AXLE | ||||
| 43511-60021 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 FR DISC BRAKE |
2 | ||
| 43511-60012 |
LN36,46,RN36,46..GEN,ME FR DRUM BRAKE |
2 | ||
| 43502-60020 |
LN36,46,RN36,46 FR DISC BRAKE |
2 | ||
| 43512 - DISC, FRONT | ||||
| 43512-35070 |
LN36,46,RN36,46 |
2 | ||
| 43512-35040 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 |
2 | ||
| 43514 - CAP, FRONT HUB GREASE | ||||
| 43423-60011 |
LN36,46,RN36,46 |
2 | ||
| 43514 - CAP, FRONT HUB GREASE | ||||
| 43423-60011 |
LN36,46,RN36,46 |
2 | ||
| 43520 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH | ||||
| 43510-35070 |
RN36,46..GEN |
1 | ||
| 43510-35071 |
LN36,46,RN36,46..GEN,ME |
1 | ||
| 43521 - NUT, FRONT WHEEL ADJUSTING | ||||
| 43521-60011 |
LN36,46,RN36,46 |
4 | ||
| 43521 - NUT, FRONT WHEEL ADJUSTING | ||||
| 43521-60011 |
LN36,46,RN36,46 |
4 | ||
| 43521 - NUT, FRONT WHEEL ADJUSTING | ||||
| 43521-60011 |
LN36,46,RN36,46 |
4 | ||
| 43521 - NUT, FRONT WHEEL ADJUSTING | ||||
| 43521-60011 |
LN36,46,RN36,46 |
4 | ||
| 43523 - WASHER, FRONT WHEEL ADJUSTING LOCK | ||||
| 90215-42025 |
LN36,46,RN36,46 |
2 | ||
| 43523 - WASHER, FRONT WHEEL ADJUSTING LOCK | ||||
| 90215-42025 |
LN36,46,RN36,46 |
2 | ||
| 43530 - HUB ASSY, FREE WHEEL | ||||
| 43530-39015 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 |
2 | ||
| 43530-39016 |
LN36,46,RN36,46 |
2 | ||
| 43530-39017 |
LN36,46,RN36,46..STD |
2 | ||
| 43531 - GASKET, FREE WHEEL HUB | ||||
| 43531-60010 |
LN36,46,RN36,46..STD |
2 | ||
| 43532 - RING, FREE WHEEL HUB | ||||
| 43532-60010 |
LN36,46,RN36,46..STD |
2 | ||
| Common parts | ||||
| 90119-06024 | ||||
| 91112-71025 | ||||
| 94110-70800 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
