RN46L-KRW (1979)
Toyota Hilux

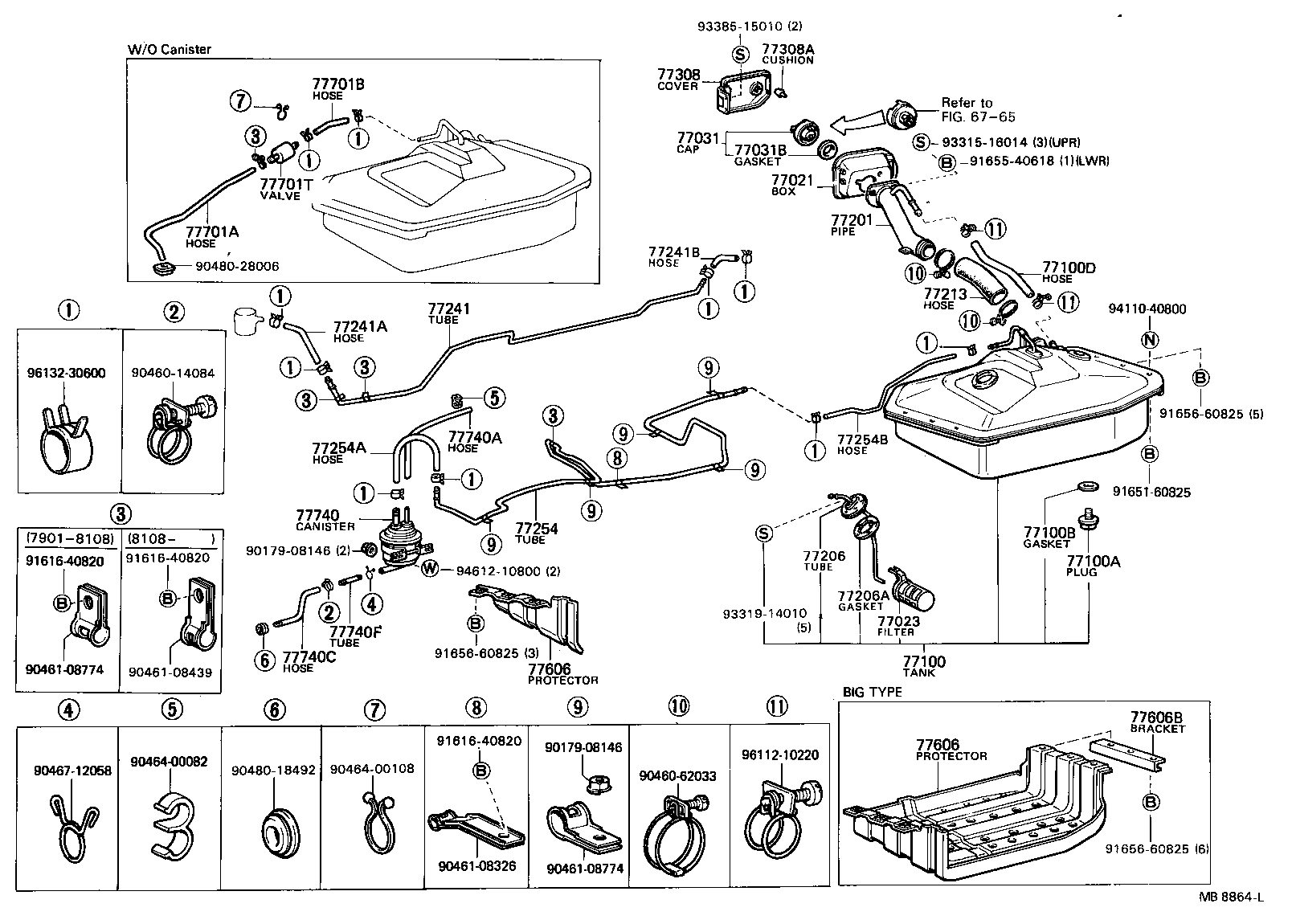

(7901-8307)RN36,46
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77021 - BOX ASSY, FUEL TANK INLET | ||||
| 65507-89108 |
LN3#,4#,RN3#,4#..CBU |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-12090 |
RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41 |
1 | ||
| 77310-12090 |
RN3#,40,41;RN46..EUR,GEN;RN46..ARL..IV3 |
1 | ||
| 77310-35060 |
LN3#,4#;RN46..ARL..CBU |
1 | ||
| 77310-14070 |
RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41 |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
LN3#,4#,RN3#,4# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77100-35120 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..T1..(EUR,GEN,ME,SA) |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
LN3#,4#,RN3#,4# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
LN3#,4#,RN3#,4# |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-21883 |
LN3#,4#,RN3#,4# L=320 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-35100 |
RN46..ARL..IV3;RN46..T1..(EUR,GEN);LN30,40,RN3#,40,41..T1 |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77203-35091 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..T1..(EUR,GEN,ME,SA) |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-35030 |
LN3#,4#,RN3#,4#..T1 |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-35101 |
RN46..ARL..IV3;RN46..T1..(EUR,GEN) |
1 | ||
| 77251-35152 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..T1..(EUR,GEN,ME,SA) |
1 | ||
| 77251-35200 |
LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN) |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06040 |
RN36;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA *H,L=320 |
1 | ||
| 95332-06032 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 *H,L=320 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06030 |
RN40,41..T1;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..T1..(EUR,GEN,ME,SA) *H,L=260 |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77305-89101 |
LN3#,4#,RN3#,4#..CBU |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-05080 |
RN3#,40,41..CBU;RN46..(EUR,GEN)..CBU |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77161-35010 |
LN3#,4#,RN3#,4#..T1 L=313 |
1 | ||
| 77161-35030 |
LN46,RN46..T1 L=977 |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77161-35010 |
LN3#,4#,RN3#,4#..T1 L=313 |
1 | ||
| 77161-35030 |
LN46,RN46..T1 L=977 |
1 | ||
| 77606B - BRACKET, FUEL TANK PROTECTOR, SIDE | ||||
| 77162-35010 |
LN36,46,RN36,46..T1 |
1 | ||
| 77701A - HOSE, FUEL, NO.1 (FOR BREATHER VALVE) | ||||
| 90446-12006 |
RN4#..T1..(EUR,GEN,ME,PHL,SA) L=256 |
1 | ||
| 77701B - HOSE, FUEL, NO.2 (FOR BREATHER VALVE) | ||||
| 95332-06010 |
RN4#..T1..(EUR,GEN,ME,PHL,SA) *H,L=100 |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10054 |
LN3#,4#,RN3#,4#..EUR,GEN,ME,PHL,SA |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 90460-14084 | ||||
| 90460-62033 | ||||
| 90461-08326 | ||||
| 90461-08439 | ||||
| 90461-08774 | ||||
| 90464-00082 | ||||
| 90464-00108 | ||||
| 90467-12058 | ||||
| 90480-18492 | ||||
| 90480-28006 | ||||
| 91616-40820 | ||||
| 91651-60825 | ||||
| 91655-40618 | ||||
| 91656-60825 | ||||
| 93315-16014 | ||||
| 93319-14010 | ||||
| 93385-15010 | ||||
| 94110-40800 | ||||
| 94612-10800 | ||||
| 96112-10220 | ||||
| 96132-30600 | ||||
| Linked diagrams | ||||
| 6765 | ||||
(7909- )LN3#,4#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77021 - BOX ASSY, FUEL TANK INLET | ||||
| 65507-89108 |
LN3#,4#,RN3#,4#..CBU |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-12090 |
RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41 |
1 | ||
| 77310-12090 |
RN3#,40,41;RN46..EUR,GEN;RN46..ARL..IV3 |
1 | ||
| 77310-35060 |
LN3#,4#;RN46..ARL..CBU |
1 | ||
| 77310-14070 |
RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41 |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
LN3#,4#,RN3#,4# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77100-35120 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..T1..(EUR,GEN,ME,SA) |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
LN3#,4#,RN3#,4# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
LN3#,4#,RN3#,4# |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-21883 |
LN3#,4#,RN3#,4# L=320 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-35100 |
RN46..ARL..IV3;RN46..T1..(EUR,GEN);LN30,40,RN3#,40,41..T1 |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77203-35091 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..T1..(EUR,GEN,ME,SA) |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-35030 |
LN3#,4#,RN3#,4#..T1 |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-35101 |
RN46..ARL..IV3;RN46..T1..(EUR,GEN) |
1 | ||
| 77251-35152 |
RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..T1..(EUR,GEN,ME,SA) |
1 | ||
| 77251-35200 |
LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN) |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06040 |
RN36;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA *H,L=320 |
1 | ||
| 95332-06032 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 *H,L=320 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06030 |
RN40,41..T1;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..T1..(EUR,GEN,ME,SA) *H,L=260 |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77255-35110 |
LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN) |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95332-06030 |
LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN) *H,L=280 |
1 | ||
| 95332-06030 |
LN3#,4#;RN46..ARL..CBU *H,L=280 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95332-06030 |
LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN) *H,L=280 |
1 | ||
| 95332-06030 |
LN3#,4#;RN46..ARL..CBU *H,L=280 |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77305-89101 |
LN3#,4#,RN3#,4#..CBU |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-05080 |
RN3#,40,41..CBU;RN46..(EUR,GEN)..CBU |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77161-35010 |
LN3#,4#,RN3#,4#..T1 L=313 |
1 | ||
| 77161-35030 |
LN46,RN46..T1 L=977 |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77161-35010 |
LN3#,4#,RN3#,4#..T1 L=313 |
1 | ||
| 77161-35030 |
LN46,RN46..T1 L=977 |
1 | ||
| 77606B - BRACKET, FUEL TANK PROTECTOR, SIDE | ||||
| 77162-35010 |
LN36,46,RN36,46..T1 |
1 | ||
| 77701A - HOSE, FUEL, NO.1 (FOR BREATHER VALVE) | ||||
| 90446-12006 |
RN4#..T1..(EUR,GEN,ME,PHL,SA) L=256 |
1 | ||
| 77701A - HOSE, FUEL, NO.1 (FOR BREATHER VALVE) | ||||
| 90446-12006 |
RN4#..T1..(EUR,GEN,ME,PHL,SA) L=256 |
1 | ||
| 77701B - HOSE, FUEL, NO.2 (FOR BREATHER VALVE) | ||||
| 95332-06010 |
RN4#..T1..(EUR,GEN,ME,PHL,SA) *H,L=100 |
1 | ||
| 77701B - HOSE, FUEL, NO.2 (FOR BREATHER VALVE) | ||||
| 95332-06010 |
RN4#..T1..(EUR,GEN,ME,PHL,SA) *H,L=100 |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10054 |
LN3#,4#,RN3#,4#..EUR,GEN,ME,PHL,SA |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10054 |
LN3#,4#,RN3#,4#..EUR,GEN,ME,PHL,SA |
1 | ||
| Common parts | ||||
| 90170-08194 | ||||
| 90179-08146 | ||||
| 90460-62033 | ||||
| 90461-08324 | ||||
| 90461-10440 | ||||
| 90464-00108 | ||||
| 90464-00232 | ||||
| 90480-01104 | ||||
| 90480-28006 | ||||
| 91616-40820 | ||||
| 91651-60825 | ||||
| 91656-40618 | ||||
| 91656-40820 | ||||
| 91656-60825 | ||||
| 93315-16014 | ||||
| 93319-14010 | ||||
| 93385-15010 | ||||
| 94110-40800 | ||||
| 96112-10220 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
