RN46L-KRW (1979)
Toyota Hilux
(7909-8307)18R..RN31,41..ARL ; (8010-8307)18R..RN36,46..EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

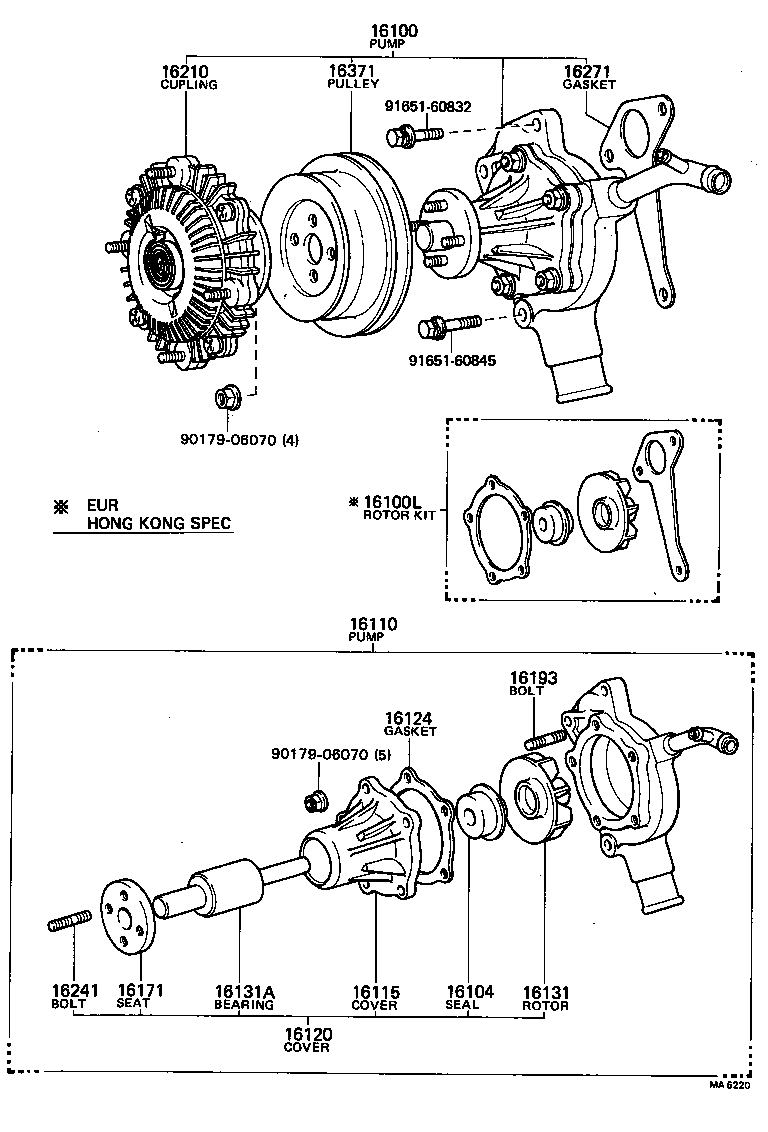

| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-39245 |
18R..RN31,36,41,46 |
1 | ||
| 16100-59049 |
L..LN3#,4# |
1 | ||
| 16100-59125 |
L..LN3#,4# |
1 | ||
| 16100-59126 |
L..LN3#,4# |
1 | ||
| 16100-39236 |
18R..RN36,46..EUR |
1 | ||
| 16100-39215 |
18R..RN36,46..ARL,EUR |
1 | ||
| 16100L - ROTOR KIT, WATER PUMP | ||||
| 04162-34010 |
18R..RN31,36,41,46..ARL,EUR |
1 | ||
| 04162-34010 |
18R..RN46..EUR;18R..RN36..ARL,EUR;18R..RN46..ARL..IV3 |
1 | ||
| 16104 - SEAL SET, WATER PUMP | ||||
| 16104-41110 |
18R..RN31,36,41,46..ARL,EUR |
1 | ||
| 16104-41111 |
18R..RN46..EUR;18R..RN36..ARL,EUR;18R..RN46..ARL..IV3 |
1 | ||
| 16104-41110 |
18R..RN36,46..ARL,EUR |
1 | ||
| 16110 - PUMP ASSY, WATER, W/O COUPLING | ||||
| 16110-34100 |
18R..RN36,46..EUR |
1 | ||
| 16115 - COVER, WATER PUMP | ||||
| 16115-41110 |
18R..RN46..EUR;18R..RN36..ARL,EUR;18R..RN46..ARL..IV3 |
1 | ||
| 16115-41110 |
18R..RN31,36,41,46..ARL,EUR |
1 | ||
| 16120 - COVER ASSY, WATER PUMP | ||||
| 16120-34090 |
18R..RN36,46..ARL,EUR |
1 | ||
| 16120-34100 |
18R..RN36,46..EUR |
1 | ||
| 16120-34090 |
18R..RN31,36,41,46..ARL,EUR |
1 | ||
| 16124 - GASKET, WATER PUMP COVER | ||||
| 16129-33030 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA |
1 | ||
| 16131 - ROTOR, WATER PUMP | ||||
| 16131-41110 |
18R..RN46..EUR;18R..RN36..ARL,EUR;18R..RN46..ARL..IV3 |
1 | ||
| 16131-41110 |
18R..RN31,36,41,46..ARL,EUR |
1 | ||
| 16131A - BEARING, WATER PUMP | ||||
| 90369-30028 |
18R..RN31,36,41,46..ARL,EUR |
1 | ||
| 90369-30028 |
18R..RN36,46..ARL,EUR |
1 | ||
| 90369-30005 |
18R..RN36,46..EUR |
1 | ||
| 16171 - SEAT, WATER PUMP PULLEY | ||||
| 16171-24030 |
18R..RN36,46..EUR |
1 | ||
| 16171-54010 |
L..LN3#,4# |
1 | ||
| 16193 - BOLT, STUD(FOR WATER PUMP COVER) | ||||
| 16193-33030 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA |
5 | ||
| 16210 - COUPLING ASSY, FLUID | ||||
| 16210-34090 |
18R..RN31,36,41,46..ARL,EUR |
1 | ||
| 16210-34090 |
18R..RN36,46..ARL,EUR |
1 | ||
| 16210-34102 |
18R..RN36,46..EUR |
1 | ||
| 16241 - BOLT, STUD(FOR WATER PUMP COUPLING) | ||||
| 16241-40030 |
18R..RN36,46 |
4 | ||
| 16193-33030 |
18R..RN36,46..EUR |
4 | ||
| 16241-40030 |
18R..RN31,36,41,46 |
4 | ||
| 16271 - GASKET, WATER PUMP | ||||
| 16271-33010 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA |
1 | ||
| 16271-54011 |
L..LN3#,4# |
1 | ||
| 16371 - PULLEY, FAN | ||||
| 16173-34100 |
18R..RN36,46..EUR |
1 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 91651-60832 | ||||
| 91651-60845 | ||||
(7909- )L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-39245 |
18R..RN31,36,41,46 |
1 | ||
| 16100-59049 |
L..LN3#,4# |
1 | ||
| 16100-59125 |
L..LN3#,4# |
1 | ||
| 16100-59126 |
L..LN3#,4# |
1 | ||
| 16100-39236 |
18R..RN36,46..EUR |
1 | ||
| 16100-39215 |
18R..RN36,46..ARL,EUR |
1 | ||
| 16171 - SEAT, WATER PUMP PULLEY | ||||
| 16171-24030 |
18R..RN36,46..EUR |
1 | ||
| 16171-54010 |
L..LN3#,4# |
1 | ||
| 16210 - COUPLING ASSY, FLUID | ||||
| 16210-34090 |
18R..RN31,36,41,46..ARL,EUR |
1 | ||
| 16210-34090 |
18R..RN36,46..ARL,EUR |
1 | ||
| 16210-34102 |
18R..RN36,46..EUR |
1 | ||
| 16241 - BOLT, STUD(FOR WATER PUMP COUPLING) | ||||
| 16241-40030 |
18R..RN36,46 |
4 | ||
| 16193-33030 |
18R..RN36,46..EUR |
4 | ||
| 16241-40030 |
18R..RN31,36,41,46 |
4 | ||
| 16271 - GASKET, WATER PUMP | ||||
| 16271-33010 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA |
1 | ||
| 16271-54011 |
L..LN3#,4# |
1 | ||
| 16371 - PULLEY, FAN | ||||
| 16173-34100 |
18R..RN36,46..EUR |
1 | ||
| Common parts | ||||
| 90119-08108 | ||||
| 90179-06070 | ||||
(8308-9508)L,2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-08176 | ||||
| 90119-08108 | ||||
| 90179-06100 | ||||
