RN46L-KR3 (1979)
Toyota Hilux

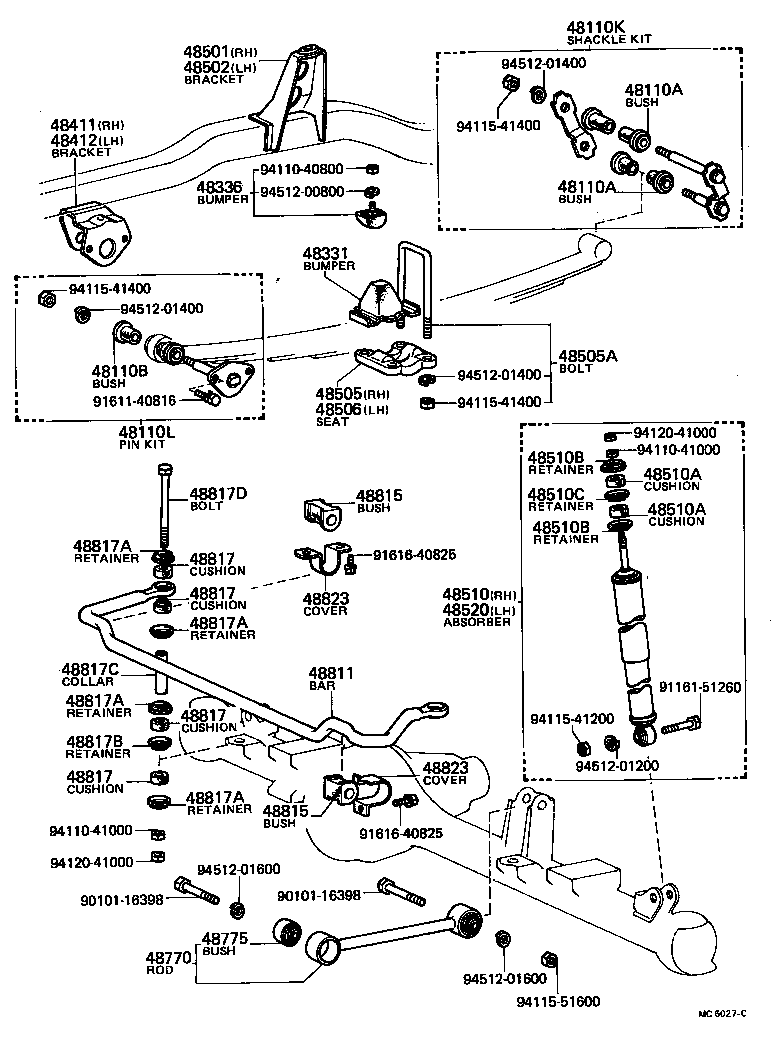

(7901-8307)LN36,46,RN36,46..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-18046 |
LN36,46,RN36,46 L=37 |
4 | ||
| 90385-18007 |
LN36,46,RN36,46 L=56 |
4 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-18046 |
LN36,46,RN36,46 L=37 |
4 | ||
| 90385-18007 |
LN36,46,RN36,46 L=56 |
4 | ||
| 48110B - BUSH(FOR FRONT SPRING PIN) | ||||
| 90385-18046 |
LN36,46,RN36,46 |
4 | ||
| 48110K - SHACKLE KIT, FRONT SPRING | ||||
| 04481-35040 |
LN36,46,RN36,46 |
2 | ||
| 48110L - PIN KIT, FRONT SPRING | ||||
| 04482-35030 |
LN36,46,RN36,46 |
2 | ||
| 48331 - BUMPER, FRONT SPRING, NO.1 | ||||
| 48304-35070 |
LN36,46,RN36,46 LH |
1 | ||
| 48304-35040 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 |
2 | ||
| 48304-35040 |
LN36,46,RN36,46 RH |
1 | ||
| 48336 - BUMPER, FRONT SPRING, NO.2 | ||||
| 48305-29045 |
LN36,46,RN36,46 |
2 | ||
| 48411 - BRACKET, FRONT SPRING(FOR FRONT RH) | ||||
| 48411-35020 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 |
1 | ||
| 48411-35021 |
LN36,46,RN36,46 |
1 | ||
| 48412 - BRACKET, FRONT SPRING(FOR FRONT LH) | ||||
| 48411-35020 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 |
1 | ||
| 48411-35021 |
LN36,46,RN36,46 |
1 | ||
| 48501 - BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER RH | ||||
| 48512-35020 |
LN36,46,RN36,46 |
1 | ||
| 48502 - BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER LH | ||||
| 48512-35020 |
LN36,46,RN36,46 |
1 | ||
| 48505 - SEAT, FRONT SPRING, RH | ||||
| 48471-35010 |
LN36,46,RN36,46 |
1 | ||
| 48505A - BOLT, U(FOR FRONT SPRING) | ||||
| 90118-14174 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 L=152,LH |
2 | ||
| 90118-14175 |
LN36,46,RN36,46 L=188,RH |
2 | ||
| 90118-14173 |
LN36,46,RN36,46 L=141,LH |
2 | ||
| 48506 - SEAT, FRONT SPRING, LH | ||||
| 48472-35010 |
LN36,46,RN36,46 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-39045 |
LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN) |
1 | ||
| 48510-39015 |
RN36;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA |
1 | ||
| 48510-39015 |
RN36,46..EUR,GEN,ME,SA OIL SHOCK |
1 | ||
| 48510-39045 |
LN36,46..EUR,GEN OIL SHOCK |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
LN36,46,RN36,46 |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
LN36,46,RN36,46 |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
LN36,46,RN36,46 |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
LN36,46,RN36,46 |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02007 |
LN36,46,RN36,46 |
2 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48510-39015 |
RN36;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA |
1 | ||
| 48510-39015 |
RN36,46..EUR,GEN,ME,SA OIL SHOCK |
1 | ||
| 48510-39045 |
LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN) |
1 | ||
| 48510-39045 |
LN36,46..EUR,GEN OIL SHOCK |
1 | ||
| 48770 - ROD SUB-ASSY, TORQUE | ||||
| 48760-35020 |
LN36,46,RN36,46..LHD |
1 | ||
| 48775 - BUSH, TORQUE ROD | ||||
| 48725-35010 |
LN36,46,RN36,46 |
2 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-35091 |
LN36,46,RN36,46..LHD..STD D=19 |
1 | ||
| 48811-35090 |
RN36,46..LHD D=19 |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-20030 |
LN36,46,RN36,46..LHD..STD D=19 |
2 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-20030 |
LN36,46,RN36,46..LHD..STD D=19 |
2 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 90948-01002 |
LN36,46,RN36,46..LHD..STD |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 90948-01002 |
LN36,46,RN36,46..LHD..STD |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 90948-01002 |
LN36,46,RN36,46..LHD..STD |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 90948-01002 |
LN36,46,RN36,46..LHD..STD |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02004 |
LN36,46,RN36,46..LHD..STD |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02004 |
LN36,46,RN36,46..LHD..STD |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02004 |
LN36,46,RN36,46..LHD..STD |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02004 |
LN36,46,RN36,46..LHD..STD |
8 | ||
| 48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR) | ||||
| 90948-02034 |
LN36,46,RN36,46..LHD..STD |
2 | ||
| 90948-02005 |
RN36,46..LHD |
2 | ||
| 48817C - COLLAR(FOR STABILIZER BAR) | ||||
| 90440-14003 |
LN36,46,RN36,46..LHD..STD |
2 | ||
| 48817D - BOLT(FOR FRONT STABILIZER) | ||||
| 90101-10058 |
LN36,46,RN36,46..LHD..STD |
2 | ||
| 48823 - COVER, STABILIZER LINK(FOR FRONT) | ||||
| 48823-35010 |
RN36,46..LHD RH |
1 | ||
| 48823-35010 |
LN36,46,RN36,46..LHD..STD |
2 | ||
| 48823-35020 |
RN36,46..LHD LH |
1 | ||
| 48823 - COVER, STABILIZER LINK(FOR FRONT) | ||||
| 48823-35010 |
RN36,46..LHD RH |
1 | ||
| 48823-35010 |
LN36,46,RN36,46..LHD..STD |
2 | ||
| 48823-35020 |
RN36,46..LHD LH |
1 | ||
| Common parts | ||||
| 90101-16398 | ||||
| 91161-51260 | ||||
| 91611-40816 | ||||
| 91616-40825 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94115-41200 | ||||
| 94115-41400 | ||||
| 94115-51600 | ||||
| 94120-41000 | ||||
| 94512-00800 | ||||
| 94512-01200 | ||||
| 94512-01400 | ||||
| 94512-01600 | ||||

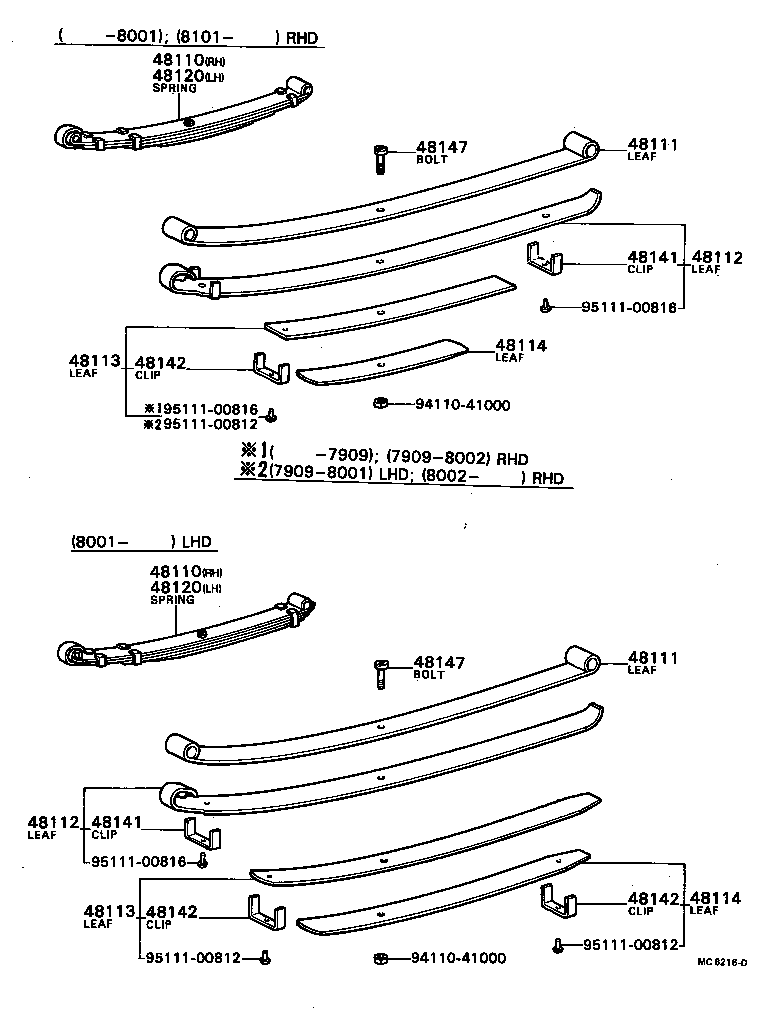

(7901-8307)LN36,46,RN36,46
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-35030 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 |
1 | ||
| 48110-35090 |
LN36,46..LHD |
1 | ||
| 48110-35061 |
RN36,46..LHD |
1 | ||
| 48110-35060 |
RN36,46..LHD |
1 | ||
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-35030 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 |
1 | ||
| 48110-35090 |
LN36,46..LHD |
1 | ||
| 48110-35061 |
RN36,46..LHD |
1 | ||
| 48110-35060 |
RN36,46..LHD |
1 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48111-35030 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 |
2 | ||
| 48111-35060 |
RN36,46..LHD |
2 | ||
| 48111-35040 |
LN36,46..LHD LH |
1 | ||
| 48111-35060 |
RN36,46..LHD RH |
1 | ||
| 48121-35020 |
RN36,46..LHD LH |
1 | ||
| 48111-35090 |
LN36,46..LHD RH |
1 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48111-35030 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 |
2 | ||
| 48111-35060 |
RN36,46..LHD |
2 | ||
| 48111-35040 |
LN36,46..LHD LH |
1 | ||
| 48111-35060 |
RN36,46..LHD RH |
1 | ||
| 48121-35020 |
RN36,46..LHD LH |
1 | ||
| 48111-35090 |
LN36,46..LHD RH |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48102-35030 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 |
2 | ||
| 48102-35060 |
RN36,46..LHD |
2 | ||
| 48102-35061 |
RN36,46..LHD RH |
1 | ||
| 48102-35040 |
LN36,46..LHD LH |
1 | ||
| 48105-35061 |
RN36,46..LHD LH |
1 | ||
| 48102-35090 |
LN36,46..LHD RH |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48102-35030 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 |
2 | ||
| 48102-35060 |
RN36,46..LHD |
2 | ||
| 48102-35061 |
RN36,46..LHD RH |
1 | ||
| 48102-35040 |
LN36,46..LHD LH |
1 | ||
| 48105-35061 |
RN36,46..LHD LH |
1 | ||
| 48102-35090 |
LN36,46..LHD RH |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48103-35030 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 |
2 | ||
| 48103-35061 |
RN36,46..LHD |
2 | ||
| 48103-35040 |
LN36,46..LHD LH |
1 | ||
| 48103-35060 |
RN36,46..LHD |
2 | ||
| 48103-35090 |
LN36,46..LHD RH |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48103-35030 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 |
2 | ||
| 48103-35061 |
RN36,46..LHD |
2 | ||
| 48103-35040 |
LN36,46..LHD LH |
1 | ||
| 48103-35060 |
RN36,46..LHD |
2 | ||
| 48103-35090 |
LN36,46..LHD RH |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48104-35040 |
LN36,46..LHD LH |
1 | ||
| 48114-35030 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 |
2 | ||
| 48104-35090 |
LN36,46..LHD RH |
1 | ||
| 48114-35060 |
RN36,46..LHD |
2 | ||
| 48104-35061 |
RN36,46..LHD |
2 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48104-35040 |
LN36,46..LHD LH |
1 | ||
| 48114-35030 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 |
2 | ||
| 48104-35090 |
LN36,46..LHD RH |
1 | ||
| 48114-35060 |
RN36,46..LHD |
2 | ||
| 48104-35061 |
RN36,46..LHD |
2 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-35030 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 |
1 | ||
| 48110-35060 |
RN36,46..LHD |
1 | ||
| 48120-35040 |
LN36,46..LHD |
1 | ||
| 48120-35020 |
RN36,46..LHD |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-35030 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 |
1 | ||
| 48110-35060 |
RN36,46..LHD |
1 | ||
| 48120-35040 |
LN36,46..LHD |
1 | ||
| 48120-35020 |
RN36,46..LHD |
1 | ||
| 48141 - CLIP, FRONT SPRING, NO.1 | ||||
| 48141-35030 |
LN36,46,RN36,46 |
4 | ||
| 48141 - CLIP, FRONT SPRING, NO.1 | ||||
| 48141-35030 |
LN36,46,RN36,46 |
4 | ||
| 48142 - CLIP, FRONT SPRING, NO.2 | ||||
| 48141-35061 |
LN36,46,RN36,46..LHD RR |
2 | ||
| 48142-35030 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 |
2 | ||
| 48142-35030 |
LN36,46,RN36,46..LHD FR |
2 | ||
| 48142 - CLIP, FRONT SPRING, NO.2 | ||||
| 48141-35061 |
LN36,46,RN36,46..LHD RR |
2 | ||
| 48142-35030 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 |
2 | ||
| 48142-35030 |
LN36,46,RN36,46..LHD FR |
2 | ||
| 48142 - CLIP, FRONT SPRING, NO.2 | ||||
| 48141-35061 |
LN36,46,RN36,46..LHD RR |
2 | ||
| 48142-35030 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 |
2 | ||
| 48142-35030 |
LN36,46,RN36,46..LHD FR |
2 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-35040 |
RN36,46..LHD |
2 | ||
| 48147-35030 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 |
2 | ||
| 48147-35040 |
LN36,46,RN36,46 |
2 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-35040 |
RN36,46..LHD |
2 | ||
| 48147-35030 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 |
2 | ||
| 48147-35040 |
LN36,46,RN36,46 |
2 | ||
| Common parts | ||||
| 94110-41000 | ||||
| 95111-00812 | ||||
| 95111-00816 | ||||
