RN41R-MSS (1981)

Toyota Hilux

Production Jan 1981 - Jul 1983
Engine 18R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )CBU

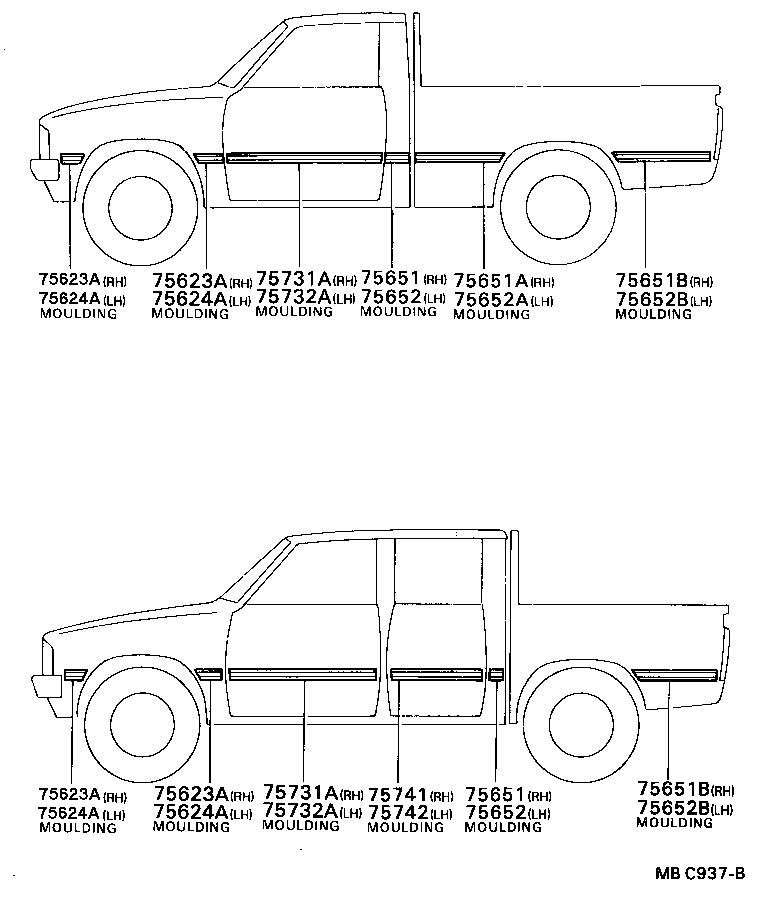

Click highlighted areas on diagram

diagram 75623A 75623A 75623A 75623A 75624A 75624A 75624A 75624A 75651 75651 75651A 75651B 75651B 75652 75652 75652A 75652B 75652B 75731A 75731A 75732A 75732A 75741 75742
Part # Description Qty Price
75623A - MOULDING, FRONT FENDER, OUTSIDE REAR RH
75613-89102

LN30,40,RN30,31,40,41..(ARL,EUR,GEN,ME,SA)..CBU

FR

 1
75615-89102

LN30,40,RN30,31,40,41..(ARL,EUR,GEN,ME,SA)..CBU

RR

 1
75623A - MOULDING, FRONT FENDER, OUTSIDE REAR RH
75613-89102

LN30,40,RN30,31,40,41..(ARL,EUR,GEN,ME,SA)..CBU

FR

 1
75615-89102

LN30,40,RN30,31,40,41..(ARL,EUR,GEN,ME,SA)..CBU

RR

 1
75623A - MOULDING, FRONT FENDER, OUTSIDE REAR RH
75613-89102

LN30,40,RN30,31,40,41..(ARL,EUR,GEN,ME,SA)..CBU

FR

 1
75615-89102

LN30,40,RN30,31,40,41..(ARL,EUR,GEN,ME,SA)..CBU

RR

 1
75623A - MOULDING, FRONT FENDER, OUTSIDE REAR RH
75613-89102

LN30,40,RN30,31,40,41..(ARL,EUR,GEN,ME,SA)..CBU

FR

 1
75615-89102

LN30,40,RN30,31,40,41..(ARL,EUR,GEN,ME,SA)..CBU

RR

 1
75624A - MOULDING, FRONT FENDER, OUTSIDE REAR LH
75614-89102

LN30,40,RN30,31,40,41..(ARL,EUR,GEN,ME,SA)..CBU

FR

 1
75616-89102

LN30,40,RN30,31,40,41..(ARL,EUR,GEN,ME,SA)..CBU

RR

 1
75624A - MOULDING, FRONT FENDER, OUTSIDE REAR LH
75614-89102

LN30,40,RN30,31,40,41..(ARL,EUR,GEN,ME,SA)..CBU

FR

 1
75616-89102

LN30,40,RN30,31,40,41..(ARL,EUR,GEN,ME,SA)..CBU

RR

 1
75624A - MOULDING, FRONT FENDER, OUTSIDE REAR LH
75614-89102

LN30,40,RN30,31,40,41..(ARL,EUR,GEN,ME,SA)..CBU

FR

 1
75616-89102

LN30,40,RN30,31,40,41..(ARL,EUR,GEN,ME,SA)..CBU

RR

 1
75624A - MOULDING, FRONT FENDER, OUTSIDE REAR LH
75614-89102

LN30,40,RN30,31,40,41..(ARL,EUR,GEN,ME,SA)..CBU

FR

 1
75616-89102

LN30,40,RN30,31,40,41..(ARL,EUR,GEN,ME,SA)..CBU

RR

 1
75651 - MOULDING, QUARTER, OUTSIDE RH
75651-89104

RN40..LHD..TW;RN40..RHD..GEN..CBU;RN40..LHD..GEN..RCB;LN4#,RN41,46..TW..CBU;LN30,40,RN30,41..GEN..RCB

 1
75651-89104

RN40..LHD..TW;LN4#,RN46..TW..CBU;RN40..RHD..GEN..CBU;RN40..LHD..GEN..RCB;LN30,40,RN30,31,41..GEN..RCB

 1
75651 - MOULDING, QUARTER, OUTSIDE RH
75651-89104

RN40..LHD..TW;RN40..RHD..GEN..CBU;RN40..LHD..GEN..RCB;LN4#,RN41,46..TW..CBU;LN30,40,RN30,41..GEN..RCB

 1
75651-89104

RN40..LHD..TW;LN4#,RN46..TW..CBU;RN40..RHD..GEN..CBU;RN40..LHD..GEN..RCB;LN30,40,RN30,31,41..GEN..RCB

 1
75651A - MOULDING, QUARTER OUTSIDE, REAR RH, NO.1
75653-89111

LN40,RN40,41..GEN..RCB..CBU

 1
75651B - MOULDING, QUARTER OUTSIDE, REAR RH, NO.2
75653-89113

LN40,RN40,41..(ARL,EUR,GEN,ME,SA)..CBU

 1
75651B - MOULDING, QUARTER OUTSIDE, REAR RH, NO.2
75653-89113

LN40,RN40,41..(ARL,EUR,GEN,ME,SA)..CBU

 1
75652 - MOULDING, QUARTER, OUTSIDE LH
75652-89104

RN40..LHD..TW;LN4#,RN46..TW..CBU;RN40..RHD..GEN..CBU;RN40..LHD..GEN..RCB;LN30,40,RN30,31,41..GEN..RCB

 1
75652-89104

RN40..LHD..TW;RN40..RHD..GEN..CBU;RN40..LHD..GEN..RCB;LN4#,RN41,46..TW..CBU;LN30,40,RN30,41..GEN..RCB

 1
75652 - MOULDING, QUARTER, OUTSIDE LH
75652-89104

RN40..LHD..TW;LN4#,RN46..TW..CBU;RN40..RHD..GEN..CBU;RN40..LHD..GEN..RCB;LN30,40,RN30,31,41..GEN..RCB

 1
75652-89104

RN40..LHD..TW;RN40..RHD..GEN..CBU;RN40..LHD..GEN..RCB;LN4#,RN41,46..TW..CBU;LN30,40,RN30,41..GEN..RCB

 1
75652A - MOULDING, QUARTER OUTSIDE, REAR LH, NO.1
75654-89111

LN40,RN40,41..GEN..RCB..CBU

 1
75731A - MOULDING, FRONT DOOR, OUTSIDE RH
75731-89102

LN30,40,RN30,31,40,41..(ARL,EUR,GEN,ME,SA)..CBU

RH

 1
75731A - MOULDING, FRONT DOOR, OUTSIDE RH
75731-89102

LN30,40,RN30,31,40,41..(ARL,EUR,GEN,ME,SA)..CBU

RH

 1
75732A - MOULDING, FRONT DOOR, OUTSIDE LH
75732-89102

LN30,40,RN30,31,40,41..(ARL,EUR,GEN,ME,SA)..CBU

LH

 1
75732A - MOULDING, FRONT DOOR, OUTSIDE LH
75732-89102

LN30,40,RN30,31,40,41..(ARL,EUR,GEN,ME,SA)..CBU

LH

 1
