RN41R-MSS (1981)

Toyota Hilux

Production Jan 1981 - Jul 1983
Engine 18R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7808-8108)LN30,40,RN30,31,40,41

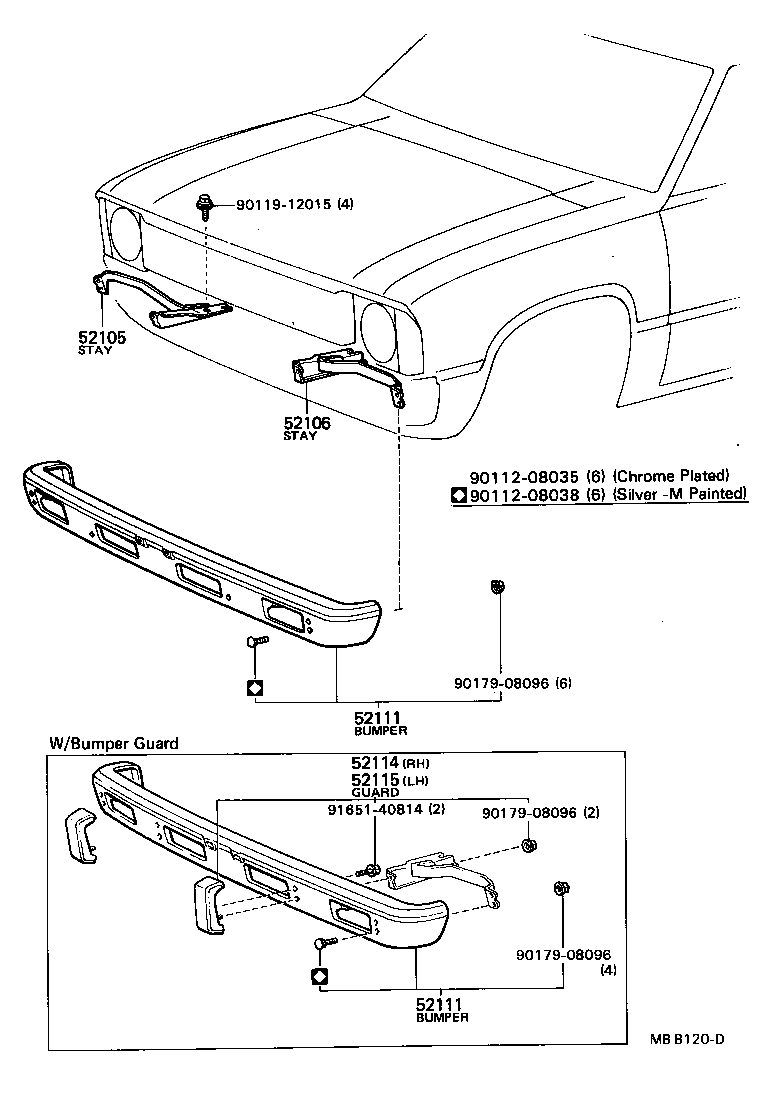

Click highlighted areas on diagram

diagram 52105 52106 52111 52111 52114 52115 9011208035 9011208038 9011912015 9017908096 9017908096 9017908096 9165140814
Part # Description Qty Price
52105 - STAY SUB-ASSY, FRONT BUMPER, RH
52011-89102

LN30,40,RN30,31,40,41

 1
52106 - STAY SUB-ASSY, FRONT BUMPER, LH
52012-89102

LN30,40,RN30,31,40,41

 1
52111 - BUMPER ASSY, FRONT
52111-39065

LN30,40,RN30,31,40,41

CHROME PLATED

 1
52111-39335

RN41..T1..(ARL,GEN,ME);LN30,40,RN30,31,40..ARL,GEN,ME,PHL

W/O BUMPER GUARD,CHROME PLATED

 1
52111-39345

LN40,RN41..RHD..SR5

W/BUMPER GUARD,CHROME PLATED

 1
52111-39335

LN30,40,RN30,31,40,41..GEN,ME,PHL

W/O BUMPER GUARD,CHROME PLATED

 1
52111-39305

RN31,41..SR5

W/O BUMPER GUARD,BLACK

 1
52111 - BUMPER ASSY, FRONT
52111-39065

LN30,40,RN30,31,40,41

CHROME PLATED

 1
52111-39335

RN41..T1..(ARL,GEN,ME);LN30,40,RN30,31,40..ARL,GEN,ME,PHL

W/O BUMPER GUARD,CHROME PLATED

 1
52111-39345

LN40,RN41..RHD..SR5

W/BUMPER GUARD,CHROME PLATED

 1
52111-39335

LN30,40,RN30,31,40,41..GEN,ME,PHL

W/O BUMPER GUARD,CHROME PLATED

 1
52111-39305

RN31,41..SR5

W/O BUMPER GUARD,BLACK

 1
Common parts
90112-08035
90112-08038
90119-12015
90179-08096
91651-40814

(8108- )LN30,40,RN30,31,40,41

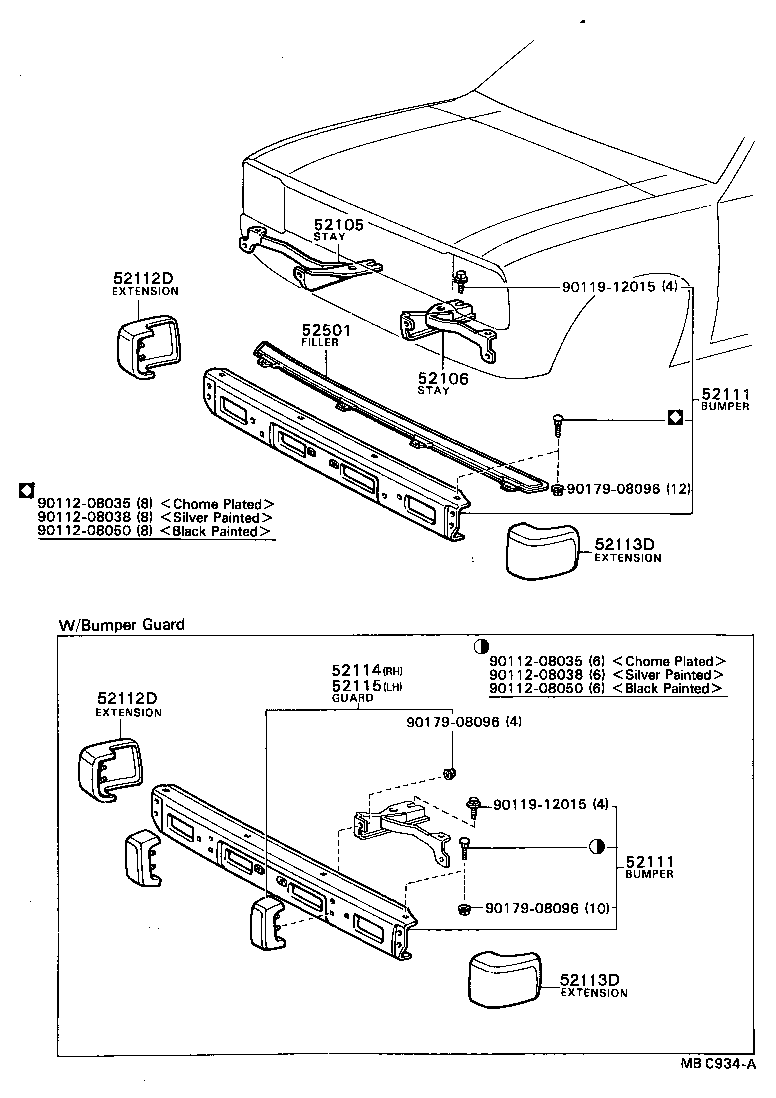

Click highlighted areas on diagram

diagram 52105 52106 52111 52111 52112D 52112D 52113D 52113D 52114 52115 52501 9011208035 9011208035 9011208038 9011208038 9011208050 9011208050 9011912015 9011912015 9017908096 9017908096 9017908096
Part # Description Qty Price
52105 - STAY SUB-ASSY, FRONT BUMPER, RH
52011-89102

LN30,40,RN30,31,40,41

 1
52106 - STAY SUB-ASSY, FRONT BUMPER, LH
52012-89102

LN30,40,RN30,31,40,41

 1
52111 - BUMPER ASSY, FRONT
52111-39065

LN30,40,RN30,31,40,41

CHROME PLATED

 1
52111-39335

RN41..T1..(ARL,GEN,ME);LN30,40,RN30,31,40..ARL,GEN,ME,PHL

W/O BUMPER GUARD,CHROME PLATED

 1
52111-39345

LN40,RN41..RHD..SR5

W/BUMPER GUARD,CHROME PLATED

 1
52111-39335

LN30,40,RN30,31,40,41..GEN,ME,PHL

W/O BUMPER GUARD,CHROME PLATED

 1
52111-39305

RN31,41..SR5

W/O BUMPER GUARD,BLACK

 1
52111 - BUMPER ASSY, FRONT
52111-39065

LN30,40,RN30,31,40,41

CHROME PLATED

 1
52111-39335

RN41..T1..(ARL,GEN,ME);LN30,40,RN30,31,40..ARL,GEN,ME,PHL

W/O BUMPER GUARD,CHROME PLATED

 1
52111-39345

LN40,RN41..RHD..SR5

W/BUMPER GUARD,CHROME PLATED

 1
52111-39335

LN30,40,RN30,31,40,41..GEN,ME,PHL

W/O BUMPER GUARD,CHROME PLATED

 1
52111-39305

RN31,41..SR5

W/O BUMPER GUARD,BLACK

 1
Common parts
90112-08035
90112-08038
90112-08050
90119-12015
90179-08096
