RN41R-MSS (1981)

Toyota Hilux

Production Jan 1981 - Jul 1983
Engine 18R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7808-8312)RN31,41..SR5

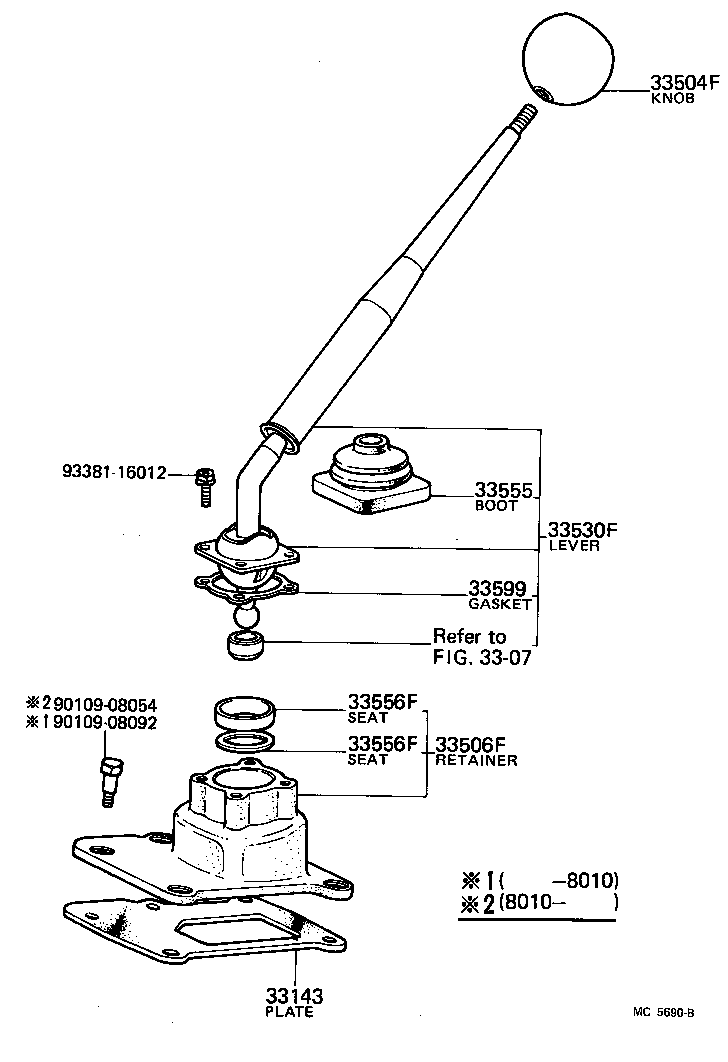

Click highlighted areas on diagram

diagram 3307 33143 33504F 33506F 33530F 33555 33556F 33556F 33599 9010908054 9010908092 9338116012
Part # Description Qty Price
33143 - PLATE, EXTENSION HOUSING OIL BAFFLE
33143-20030

RN31,41..SR5

 1
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-2005201

LN40,RN31,41..5F

URETHANE,BLACK,BLACK,TRIM2#

 1
33504-2005216

LN40,RN31,41..5F

URETHANE,BROWN,BROWN,TRIM4#

 1
33504-2005204

LN40,RN31,41..5F

URETHANE,BLUE,BLUE,TRIM8#

 1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33570-14011

RN31,41..SR5

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-35030

RN31,41..RHD..SR5

 1
33555 - BOOT, SHIFT LEVER
33555-31011

RN31,41..SR5

 1
33556F - SEAT, TRANSMISSION SHIFT LEVER BALL
33556-22010

RN31,41..SR5

T=6.5

 1
33556-20010

RN31,41..SR5

T=3.0

 1
33556F - SEAT, TRANSMISSION SHIFT LEVER BALL
33556-22010

RN31,41..SR5

T=6.5

 1
33556-20010

RN31,41..SR5

T=3.0

 1
33599 - GASKET, CONTROL SHIFT LEVER RETAINER, NO.2
33584-31020

RN31,41..SR5

 1
Common parts
90109-08054
90109-08092
93381-16012
Linked diagrams
3307
