RN41R-MS (1978)
Toyota Hilux
(7808-8108)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
LN3#,4#,RN3#,4# 12V 3.4W,12V 3.4W |
12 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-89134 |
RN31,41;RN30,40..LHD..GEN W/CLOCK |
1 | ||
| 83138-89132 |
RN3#,40,41;RN46..EUR,GEN;RN46..ARL..IV3 |
1 | ||
| 83138-89152 |
LN3#,4#;RN46..ARL..CBU |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
LN3#,4#,RN3#,4# BULB=3.4W |
12 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83102-89130 |
RN3#,40,41;RN46..EUR,GEN;RN46..ARL..IV3 |
1 | ||
| 83102-89130 |
RN36;RN46..ARL..IV3;RN30,31,4#..EUR,GEN,PHL,SA |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-89154 |
LN3#,4#;RN46..ARL..CBU MILE & KM |
1 | ||
| 83110-89135 |
RN3#,4#..EUR,GEN MILE & KM |
1 | ||
| 83110-89132 |
RN3#,4#..EUR,GEN,PHL,SA KM |
1 | ||
| 83110-89152 |
LN3#,4#;RN46..ARL..CBU KM |
1 | ||
| 83111 - MECHANISM, SPEEDOMETER | ||||
| 83112-89152 |
LN3#,4#;RN46..ARL..CBU KM |
1 | ||
| 83112-89132 |
RN3#,4#..EUR,GEN,PHL,SA KM |
1 | ||
| 83112-89135 |
RN3#,4#..EUR,GEN MILE |
1 | ||
| 83112-89154 |
LN3#,4#;RN46..ARL..CBU MILE |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-89152 |
LN3#,4#;RN46..ARL..CBU |
1 | ||
| 83132-89130 |
RN3#,40,41;RN46..EUR,GEN;RN46..ARL..IV3 |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-89131 |
RN31,36,41;RN46..EUR,GEN;RN46..ARL..IV3;RN30,40..LHD..GEN W/CLOCK OR TACHOMETER |
1 | ||
| 83134-89130 |
RN3#,40,41;RN46..EUR,GEN;RN46..ARL..IV3 |
1 | ||
| 83134-89237 |
LN3#,4#;RN46..ARL..CBU |
1 | ||
| 83135 - POINTER, SPEEDOMETER | ||||
| 83135-89130 |
LN3#,4#,RN3#,4# |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-89114 |
LN3#,4#,RN3#,4# |
2 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-89114 |
LN3#,4#,RN3#,4# |
2 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-89113 |
RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41 |
1 | ||
| 83145-89220 |
LN3#,4#,RN3#,4#..EUR,GEN,PHL,SA |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-89112 |
RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41 |
1 | ||
| 83145-89213 |
LN3#,4#,RN3#,4# |
1 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83145-89223 |
LN3#,4#;RN46..ARL..CBU |
1 | ||
| 83145D - LENS, METER, NO.5 | ||||
| 83145-89111 |
RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41 |
1 | ||
| 83145-89219 |
LN3#,4#,RN3#,4#..EUR,GEN,PHL,SA |
1 | ||
| 83145E - LENS, METER, NO.6 | ||||
| 83145-89119 |
RN30,31,40,41..EUR,GEN,PHL W/TACHOMETER |
1 | ||
| 83145-89119 |
RN30,31,40,41..EUR,GEN,PHL |
1 | ||
| 83145G - SWITCH ASSY, COMBINATION METER | ||||
| 83125-89110 |
LN3#,4#;RN46..ARL..CBU |
1 | ||
| 83145H - KNOB, COMBINATION METER | ||||
| 83145-89120 |
LN3#,4#;RN46..ARL..CBU |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83270-89143 |
RN31,41..SR5..CBU |
1 | ||
| 83270-89167 |
RN41..SR5;RN46..EUR,GEN;RN46..ARL..IV3;RN31,36..(4F,5F)..(SR5,STD) |
1 | ||
| 83270-89143 |
RN41..SR5;RN46..EUR,GEN;RN46..ARL..IV3;RN31,36..(4F,5F)..(SR5,STD) |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83310-89130 |
LN3#,4#,RN3#,4# |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83410-89173 |
LN3#,4#,RN3#,4# |
1 | ||
| 83410-89130 |
RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41 |
1 | ||
| 83410-89192 |
LN3#,4#,RN3#,4#..GEN MIDDLE EAST COUNTRY SPEC |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-14012 |
RN41..4H..GEN;RN36,41..4F,5F;RN46..ARL..IV3;LN36,46,RN31,46..EUR,GEN,SA |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-89102 |
RN41..4H..GEN;RN36,41..4F,5F;RN46..ARL..IV3;LN36,46,RN31,46..EUR,GEN,SA |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-14012 |
RN41..4H..GEN;RN36,41..4F,5F;RN46..ARL..IV3;LN36,46,RN31,46..EUR,GEN,SA |
1 | ||
| Common parts | ||||
| 83161-20080 | ||||
| 83161-20360 | ||||
| 83161-20380 | ||||
| 83161-20400 | ||||
| 83165-20020 | ||||
| 83165-20100 | ||||
| 90159-40029 | ||||
| 90183-04083 | ||||
| 93540-13016 | ||||
| 93540-14012 | ||||
| 94115-40400 | ||||
(7808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-89120 |
RN31,41..RHD..SR5 |
1 | ||
| 83710-89124 |
RN31,41..RHD..SR5 |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-89120 |
RN31,41..RHD..SR5 |
1 | ||
| 83710-89124 |
RN31,41..RHD..SR5 |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-89120 |
RN31,41..RHD..SR5 |
1 | ||
| 83710-89124 |
RN31,41..RHD..SR5 |
1 | ||
| 83710B - BUSH, SPEEDOMETER DRIVE CABLE | ||||
| 90389-02001 |
RN31,41..RHD..SR5 |
1 | ||
| Common parts | ||||
| 90461-08382 | ||||
| 90461-08488 | ||||
| 90461-10349 | ||||
| 90461-10395 | ||||
| 90464-00165 | ||||

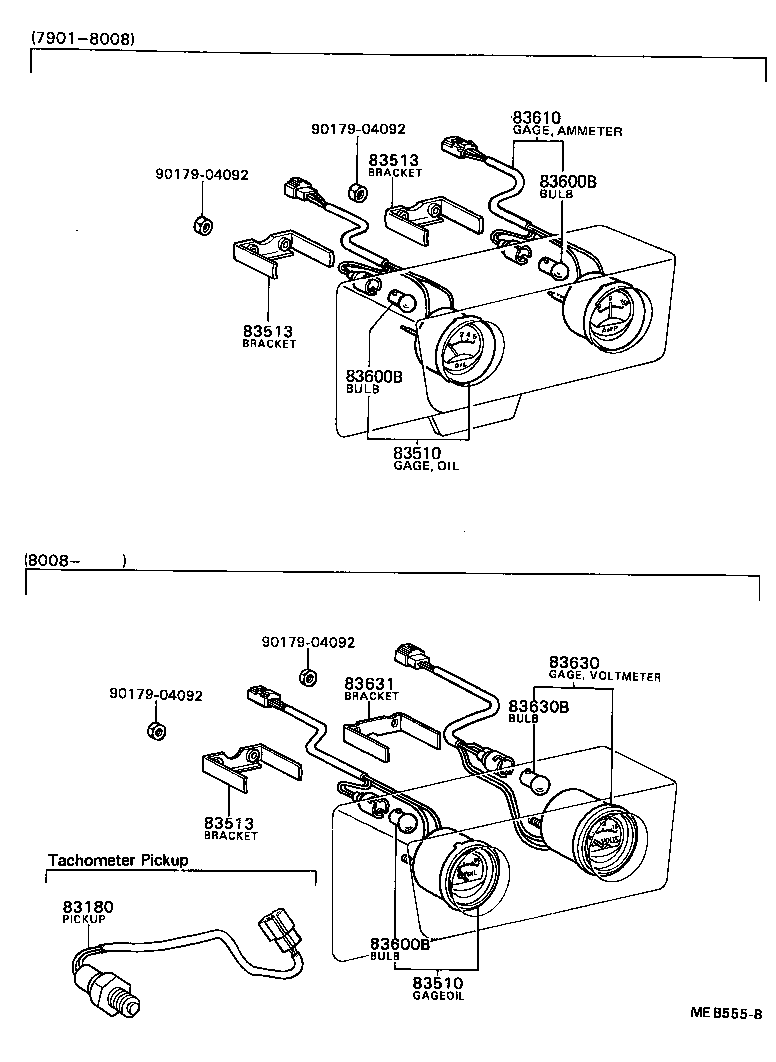

(7901- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-04092 | ||||
