RN41R-KRPQ (1982)
Toyota Hilux
Production
Aug 1982
-
Jul 1983
Engine
18R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7808-8312)18R..GEN,ME,SA ; (7901-7909)18R..RN31,41..ARL ; (7901-8010)18R..RN36,46.

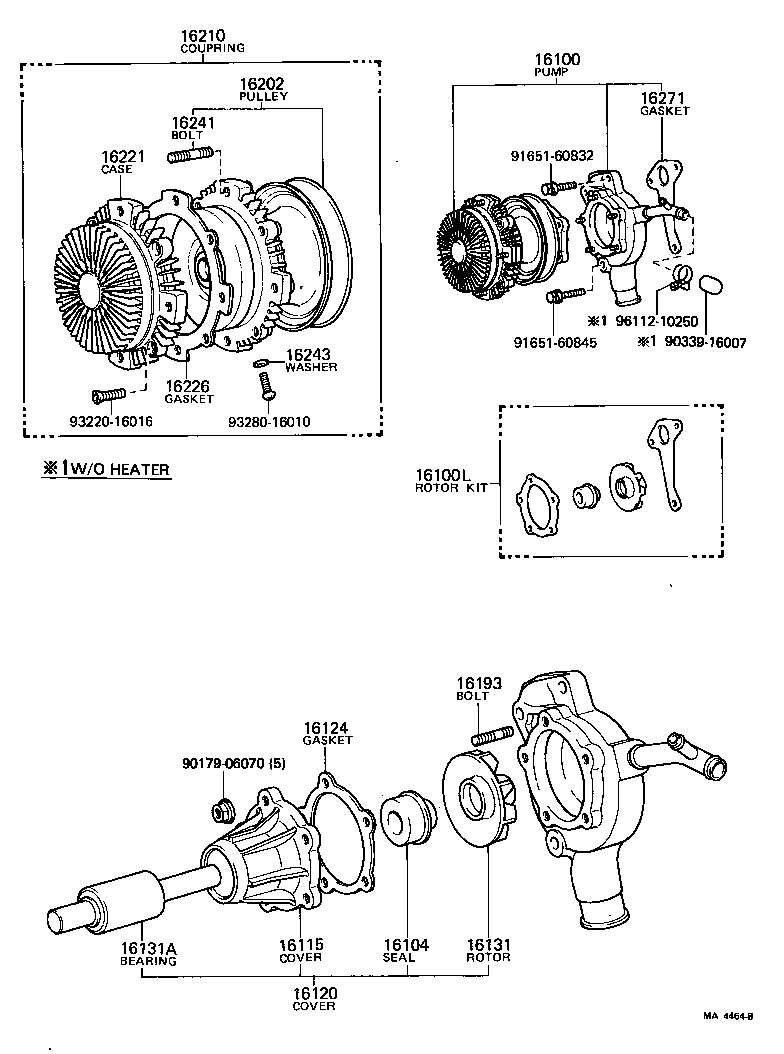

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-39245 |
18R..RN31,36,41,46 |
1 | ||
| 16124 - GASKET, WATER PUMP COVER | ||||
| 16129-33030 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA |
1 | ||
| 16193 - BOLT, STUD(FOR WATER PUMP COVER) | ||||
| 16193-33030 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA |
5 | ||
| 16241 - BOLT, STUD(FOR WATER PUMP COUPLING) | ||||
| 16241-40030 |
18R..RN31,36,41,46 |
4 | ||
| 16243 - WASHER, PLATE(FOR WATER PUMP) | ||||
| 16243-40030 |
18R..RN31,36,41,46 |
1 | ||
| 16271 - GASKET, WATER PUMP | ||||
| 16271-33010 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA |
1 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 90339-16007 | ||||
| 91651-60832 | ||||
| 91651-60845 | ||||
| 93220-16016 | ||||
| 93280-16010 | ||||
| 96112-10250 | ||||
