RN41R-JRQ3 (1979)

Toyota Hilux

Production Jan 1979 - Jul 1983
Engine 18R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7808-8307)18R..T1..ARL

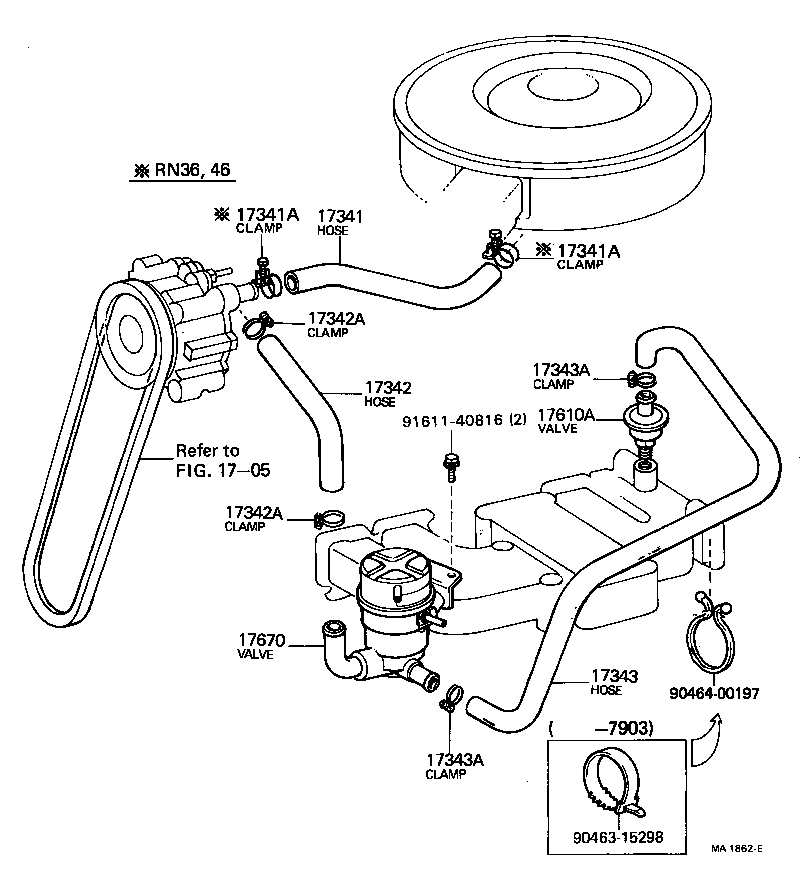

Click highlighted areas on diagram

diagram 1705 17341 17341A 17341A 17342 17342A 17342A 17343 17343A 17343A 17610A 17670 9046315298 9046400197 9161140816
Part # Description Qty Price
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-34030

18R..RN31,41..T1..ARL

 1
17342 - HOSE, NO.2(FOR AIR INJECTION SYSTEM)
17342-34020

18R..RN46..ARL..IV3;18R..RN31,36,41..T1..ARL

 1
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
96112-10300

18R..RN46..ARL..IV3;18R..RN31,36,41..T1..ARL

 2
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
96112-10300

18R..RN46..ARL..IV3;18R..RN31,36,41..T1..ARL

 2
17343 - HOSE, NO.3(FOR AIR INJECTION SYSTEM)
17343-34021

18R..RN31,36,41,46

 1
17343-34040

18R..RN31,36,41,46

 1
17343-34021

18R..RN46..ARL..IV3;18R..RN31,36,41..T1..ARL

 1
17343A - CLAMP OR CLIP, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3
96112-10270

18R..RN46..ARL..IV3;18R..RN31,36,41..T1..ARL

 2
17343A - CLAMP OR CLIP, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3
96112-10270

18R..RN46..ARL..IV3;18R..RN31,36,41..T1..ARL

 2
17610A - VALVE, CHECK(FOR AIR INJECTION SYSTEM)
90917-10039

18R..RN46..ARL..IV3;18R..RN31,36,41..T1..ARL

 1
17670 - VALVE ASSY, AIR BY-PASS
17670-34030

18R..RN46..ARL..IV3;18R..RN31,36,41..T1..ARL

 1
Common parts
90463-15298
90464-00197
91611-40816
Linked diagrams
1705
