RN41R-JRQ3 (1979)
Toyota Hilux
(7808-8307)18R..RN31,41..T1..ARL

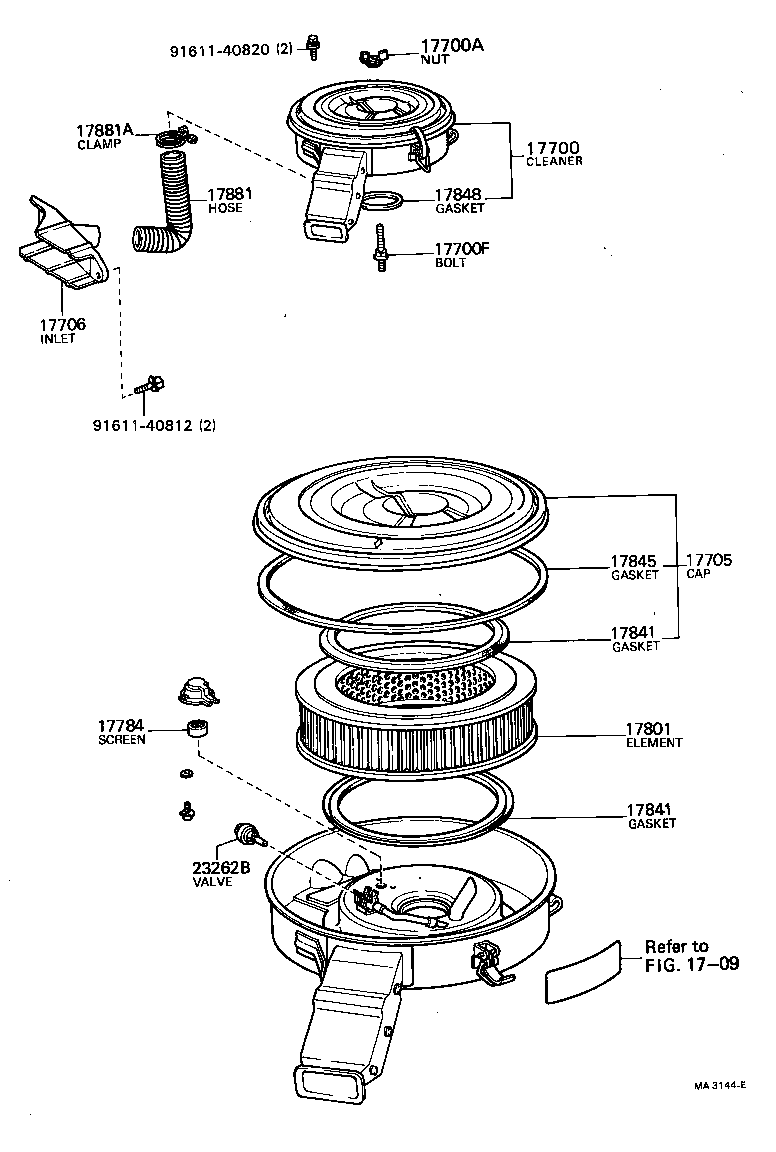

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-34354 |
18R..RN31,41..ARL W/HOT AIR INTAKE |
1 | ||
| 17700-34355 |
18R..RN31,41..T1..ARL W/HOT AIR INTAKE |
1 | ||
| 17700-36153 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17700-34590 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
18R..RN46..ARL..IV3;12R#,18R..RN3#,40,41;18R..RN46..EUR,GEN,ME,SA |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06143 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-34141 |
18R..RN31,41..ARL |
1 | ||
| 17705-34141 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17705-34190 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17705-34191 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17705-34142 |
18R..RN31,41..T1..ARL |
1 | ||
| 17706 - INLET SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17895-34060 |
18R..RN31,41..T1..ARL W/HOT AIR INTAKE |
1 | ||
| 17784 - SCREEN, AIR CLEANER | ||||
| 17784-31010 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-34070 |
18R..RN31,41..ARL,GEN DUST AREA,PAPER ELEMENT TYPE |
1 | ||
| 17801-34060 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-33011 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-33011 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-33011 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 90430-72003 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 90430-72114 |
18R..RN31,41..ARL |
1 | ||
| 90430-72114 |
18R..RN31,41 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-34110 |
18R..RN31,41..T1..ARL W/HOT AIR INTAKE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10460 |
18R..RN31,41..T1..ARL W/HOT AIR INTAKE,ID=46 |
1 | ||
| 23262B - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05025 |
18R..RN31,41..T1..ARL |
1 | ||
| Common parts | ||||
| 91611-40812 | ||||
| 91611-40820 | ||||
| Linked diagrams | ||||
| 1709 | ||||
(7808-8312)18R ; (7808- )12R#..GEN,ME,PHL,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-34354 |
18R..RN31,41..ARL W/HOT AIR INTAKE |
1 | ||
| 17700-34355 |
18R..RN31,41..T1..ARL W/HOT AIR INTAKE |
1 | ||
| 17700-36153 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17700-34590 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
18R..RN46..ARL..IV3;12R#,18R..RN3#,40,41;18R..RN46..EUR,GEN,ME,SA |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06143 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-34070 |
18R..RN31,41..ARL,GEN DUST AREA,PAPER ELEMENT TYPE |
1 | ||
| 17801-34060 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 90430-72003 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 90430-72114 |
18R..RN31,41..ARL |
1 | ||
| 90430-72114 |
18R..RN31,41 |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 90430-72003 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 90430-72114 |
18R..RN31,41..ARL |
1 | ||
| 90430-72114 |
18R..RN31,41 |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 90430-72003 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 90430-72114 |
18R..RN31,41..ARL |
1 | ||
| 90430-72114 |
18R..RN31,41 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-34110 |
18R..RN31,41..T1..ARL W/HOT AIR INTAKE |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-34110 |
18R..RN31,41..T1..ARL W/HOT AIR INTAKE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10460 |
18R..RN31,41..T1..ARL W/HOT AIR INTAKE,ID=46 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10460 |
18R..RN31,41..T1..ARL W/HOT AIR INTAKE,ID=46 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10460 |
18R..RN31,41..T1..ARL W/HOT AIR INTAKE,ID=46 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10460 |
18R..RN31,41..T1..ARL W/HOT AIR INTAKE,ID=46 |
1 | ||
| Common parts | ||||
| 90119-08171 | ||||
| 90179-08096 | ||||
| 91656-40820 | ||||
| Linked diagrams | ||||
| 1709 | ||||
(7901-8307)18R..RN31,41..ARL,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-34354 |
18R..RN31,41..ARL W/HOT AIR INTAKE |
1 | ||
| 17700-34355 |
18R..RN31,41..T1..ARL W/HOT AIR INTAKE |
1 | ||
| 17700-36153 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17700-34590 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
18R..RN46..ARL..IV3;12R#,18R..RN3#,40,41;18R..RN46..EUR,GEN,ME,SA |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06143 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-34141 |
18R..RN31,41..ARL |
1 | ||
| 17705-34141 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17705-34190 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17705-34191 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17705-34142 |
18R..RN31,41..T1..ARL |
1 | ||
| 17784 - SCREEN, AIR CLEANER | ||||
| 17784-31010 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17789 - CAP, AIR CLEANER SCREEN | ||||
| 17789-31020 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17789-31010 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-34070 |
18R..RN31,41..ARL,GEN DUST AREA,PAPER ELEMENT TYPE |
1 | ||
| 17801-34060 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-33011 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-33011 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-33011 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 90430-72003 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 90430-72114 |
18R..RN31,41..ARL |
1 | ||
| 90430-72114 |
18R..RN31,41 |
1 | ||
| Common parts | ||||
| 91611-40820 | ||||
| Linked diagrams | ||||
| 1709 | ||||
(7909- )L..ARL,GEN,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-34354 |
18R..RN31,41..ARL W/HOT AIR INTAKE |
1 | ||
| 17700-34355 |
18R..RN31,41..T1..ARL W/HOT AIR INTAKE |
1 | ||
| 17700-36153 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17700-34590 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-34070 |
18R..RN31,41..ARL,GEN DUST AREA,PAPER ELEMENT TYPE |
1 | ||
| 17801-34060 |
18R..RN31,41..ARL,GEN PAPER ELEMENT TYPE |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-34110 |
18R..RN31,41..T1..ARL W/HOT AIR INTAKE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10460 |
18R..RN31,41..T1..ARL W/HOT AIR INTAKE,ID=46 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10460 |
18R..RN31,41..T1..ARL W/HOT AIR INTAKE,ID=46 |
1 | ||
| Common parts | ||||
| 90119-08171 | ||||
| 90179-08096 | ||||
| 90179-08143 | ||||
| 91651-40616 | ||||
| 91656-40616 | ||||
| 91656-40816 | ||||
| Linked diagrams | ||||
| 1709 | ||||
