RN41R-JRQ (1979)
Toyota Hilux
(7808-8312)18R..GEN,ME,SA ; (7901-7909)18R..RN31,41..ARL ; (7901-8010)18R..RN36,46.

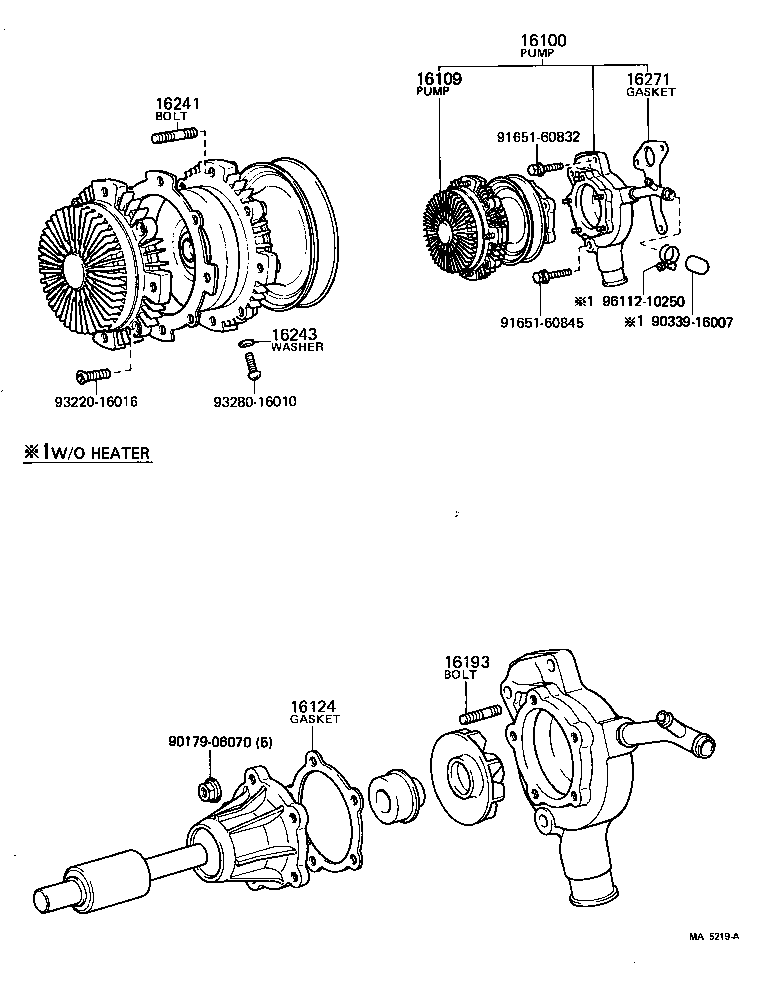

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-39245 |
18R..RN31,36,41,46 |
1 | ||
| 16100-59049 |
L..LN3#,4# |
1 | ||
| 16100-39215 |
18R..RN31,41..ARL |
1 | ||
| 16100-59125 |
L..LN3#,4# |
1 | ||
| 16100-59126 |
L..LN3#,4# |
1 | ||
| 16100-39295 |
18R..RN31,41..ARL |
1 | ||
| 16100L - ROTOR KIT, WATER PUMP | ||||
| 04162-34010 |
18R..RN31,36,41,46..ARL,EUR |
1 | ||
| 16104 - SEAL SET, WATER PUMP | ||||
| 16104-41110 |
18R..RN31,36,41,46..ARL,EUR |
1 | ||
| 16104-41110 |
18R..RN31,41..ARL |
1 | ||
| 16104-41111 |
18R..RN31,41..ARL |
1 | ||
| 16115 - COVER, WATER PUMP | ||||
| 16115-41110 |
18R..RN31,41..ARL |
1 | ||
| 16115-41110 |
18R..RN31,36,41,46..ARL,EUR |
1 | ||
| 16120 - COVER ASSY, WATER PUMP | ||||
| 16120-34101 |
18R..RN31,41..ARL |
1 | ||
| 16120-34090 |
18R..RN31,36,41,46..ARL,EUR |
1 | ||
| 16124 - GASKET, WATER PUMP COVER | ||||
| 16129-33030 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA |
1 | ||
| 16131 - ROTOR, WATER PUMP | ||||
| 16131-41110 |
18R..RN31,41..ARL |
1 | ||
| 16131-41110 |
18R..RN31,36,41,46..ARL,EUR |
1 | ||
| 16131A - BEARING, WATER PUMP | ||||
| 90369-30005 |
18R..RN31,41..ARL |
1 | ||
| 90369-30028 |
18R..RN31,36,41,46..ARL,EUR |
1 | ||
| 16193 - BOLT, STUD(FOR WATER PUMP COVER) | ||||
| 16193-33030 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA |
5 | ||
| 16202 - PULLEY & BEARING CASE SUB-ASSY, FLUID COUPLING | ||||
| 16202-34090 |
18R..RN31,36,41,46..ARL,EUR |
1 | ||
| 16210 - COUPLING ASSY, FLUID | ||||
| 16210-34090 |
18R..RN31,36,41,46..ARL,EUR |
1 | ||
| 16210-34130 |
18R..RN31,41..ARL |
1 | ||
| 16221 - CASE, FLUID COUPLING | ||||
| 16221-45010 |
18R..RN31,36,41,46..ARL,EUR |
1 | ||
| 16226 - GASKET, FLUID COUPLING CASE | ||||
| 16226-45010 |
18R..RN31,36,41,46..ARL,EUR |
1 | ||
| 16241 - BOLT, STUD(FOR WATER PUMP COUPLING) | ||||
| 16193-33030 |
18R..RN31,41..ARL |
4 | ||
| 16241-40030 |
18R..RN31,36,41,46 |
4 | ||
| 16243 - WASHER, PLATE(FOR WATER PUMP) | ||||
| 16243-40030 |
18R..RN31,36,41,46 |
1 | ||
| 16271 - GASKET, WATER PUMP | ||||
| 16271-33010 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA |
1 | ||
| 16271-54011 |
L..LN3#,4# |
1 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 90339-16007 | ||||
| 91651-60832 | ||||
| 91651-60845 | ||||
| 93220-16016 | ||||
| 93280-16010 | ||||
| 96112-10250 | ||||
(7808-7909)18R..RN31,41..ARL ; (7901-8307)18R..RN36,46..ARL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-39245 |
18R..RN31,36,41,46 |
1 | ||
| 16100-59049 |
L..LN3#,4# |
1 | ||
| 16100-39215 |
18R..RN31,41..ARL |
1 | ||
| 16100-59125 |
L..LN3#,4# |
1 | ||
| 16100-59126 |
L..LN3#,4# |
1 | ||
| 16100-39295 |
18R..RN31,41..ARL |
1 | ||
| 16109 - PUMP SUB-ASSY, WATER | ||||
| 16109-34110 |
18R..RN31,36,41,46 |
1 | ||
| 16124 - GASKET, WATER PUMP COVER | ||||
| 16129-33030 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA |
1 | ||
| 16193 - BOLT, STUD(FOR WATER PUMP COVER) | ||||
| 16193-33030 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA |
5 | ||
| 16241 - BOLT, STUD(FOR WATER PUMP COUPLING) | ||||
| 16193-33030 |
18R..RN31,41..ARL |
4 | ||
| 16241-40030 |
18R..RN31,36,41,46 |
4 | ||
| 16243 - WASHER, PLATE(FOR WATER PUMP) | ||||
| 16243-40030 |
18R..RN31,36,41,46 |
1 | ||
| 16271 - GASKET, WATER PUMP | ||||
| 16271-33010 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA |
1 | ||
| 16271-54011 |
L..LN3#,4# |
1 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 90339-16007 | ||||
| 91651-60832 | ||||
| 91651-60845 | ||||
| 93220-16016 | ||||
| 93280-16010 | ||||
| 96112-10250 | ||||
(7909-8307)18R..RN31,41..ARL ; (8010-8307)18R..RN36,46..EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-39245 |
18R..RN31,36,41,46 |
1 | ||
| 16100-59049 |
L..LN3#,4# |
1 | ||
| 16100-39215 |
18R..RN31,41..ARL |
1 | ||
| 16100-59125 |
L..LN3#,4# |
1 | ||
| 16100-59126 |
L..LN3#,4# |
1 | ||
| 16100-39295 |
18R..RN31,41..ARL |
1 | ||
| 16100L - ROTOR KIT, WATER PUMP | ||||
| 04162-34010 |
18R..RN31,36,41,46..ARL,EUR |
1 | ||
| 16104 - SEAL SET, WATER PUMP | ||||
| 16104-41110 |
18R..RN31,36,41,46..ARL,EUR |
1 | ||
| 16104-41110 |
18R..RN31,41..ARL |
1 | ||
| 16104-41111 |
18R..RN31,41..ARL |
1 | ||
| 16110 - PUMP ASSY, WATER, W/O COUPLING | ||||
| 16110-34100 |
18R..RN31,41..ARL |
1 | ||
| 16115 - COVER, WATER PUMP | ||||
| 16115-41110 |
18R..RN31,41..ARL |
1 | ||
| 16115-41110 |
18R..RN31,36,41,46..ARL,EUR |
1 | ||
| 16120 - COVER ASSY, WATER PUMP | ||||
| 16120-34101 |
18R..RN31,41..ARL |
1 | ||
| 16120-34090 |
18R..RN31,36,41,46..ARL,EUR |
1 | ||
| 16124 - GASKET, WATER PUMP COVER | ||||
| 16129-33030 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA |
1 | ||
| 16131 - ROTOR, WATER PUMP | ||||
| 16131-41110 |
18R..RN31,41..ARL |
1 | ||
| 16131-41110 |
18R..RN31,36,41,46..ARL,EUR |
1 | ||
| 16131A - BEARING, WATER PUMP | ||||
| 90369-30005 |
18R..RN31,41..ARL |
1 | ||
| 90369-30028 |
18R..RN31,36,41,46..ARL,EUR |
1 | ||
| 16171 - SEAT, WATER PUMP PULLEY | ||||
| 16171-54010 |
L..LN3#,4# |
1 | ||
| 16171-24030 |
18R..RN31,41..ARL |
1 | ||
| 16193 - BOLT, STUD(FOR WATER PUMP COVER) | ||||
| 16193-33030 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA |
5 | ||
| 16210 - COUPLING ASSY, FLUID | ||||
| 16210-34090 |
18R..RN31,36,41,46..ARL,EUR |
1 | ||
| 16210-34130 |
18R..RN31,41..ARL |
1 | ||
| 16241 - BOLT, STUD(FOR WATER PUMP COUPLING) | ||||
| 16193-33030 |
18R..RN31,41..ARL |
4 | ||
| 16241-40030 |
18R..RN31,36,41,46 |
4 | ||
| 16271 - GASKET, WATER PUMP | ||||
| 16271-33010 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA |
1 | ||
| 16271-54011 |
L..LN3#,4# |
1 | ||
| 16371 - PULLEY, FAN | ||||
| 16173-34100 |
18R..RN31,41..ARL |
1 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 91651-60832 | ||||
| 91651-60845 | ||||
(7909- )L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-39245 |
18R..RN31,36,41,46 |
1 | ||
| 16100-59049 |
L..LN3#,4# |
1 | ||
| 16100-39215 |
18R..RN31,41..ARL |
1 | ||
| 16100-59125 |
L..LN3#,4# |
1 | ||
| 16100-59126 |
L..LN3#,4# |
1 | ||
| 16100-39295 |
18R..RN31,41..ARL |
1 | ||
| 16171 - SEAT, WATER PUMP PULLEY | ||||
| 16171-54010 |
L..LN3#,4# |
1 | ||
| 16171-24030 |
18R..RN31,41..ARL |
1 | ||
| 16210 - COUPLING ASSY, FLUID | ||||
| 16210-34090 |
18R..RN31,36,41,46..ARL,EUR |
1 | ||
| 16210-34130 |
18R..RN31,41..ARL |
1 | ||
| 16241 - BOLT, STUD(FOR WATER PUMP COUPLING) | ||||
| 16193-33030 |
18R..RN31,41..ARL |
4 | ||
| 16241-40030 |
18R..RN31,36,41,46 |
4 | ||
| 16271 - GASKET, WATER PUMP | ||||
| 16271-33010 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA |
1 | ||
| 16271-54011 |
L..LN3#,4# |
1 | ||
| 16371 - PULLEY, FAN | ||||
| 16173-34100 |
18R..RN31,41..ARL |
1 | ||
| Common parts | ||||
| 90119-08108 | ||||
| 90179-06070 | ||||
