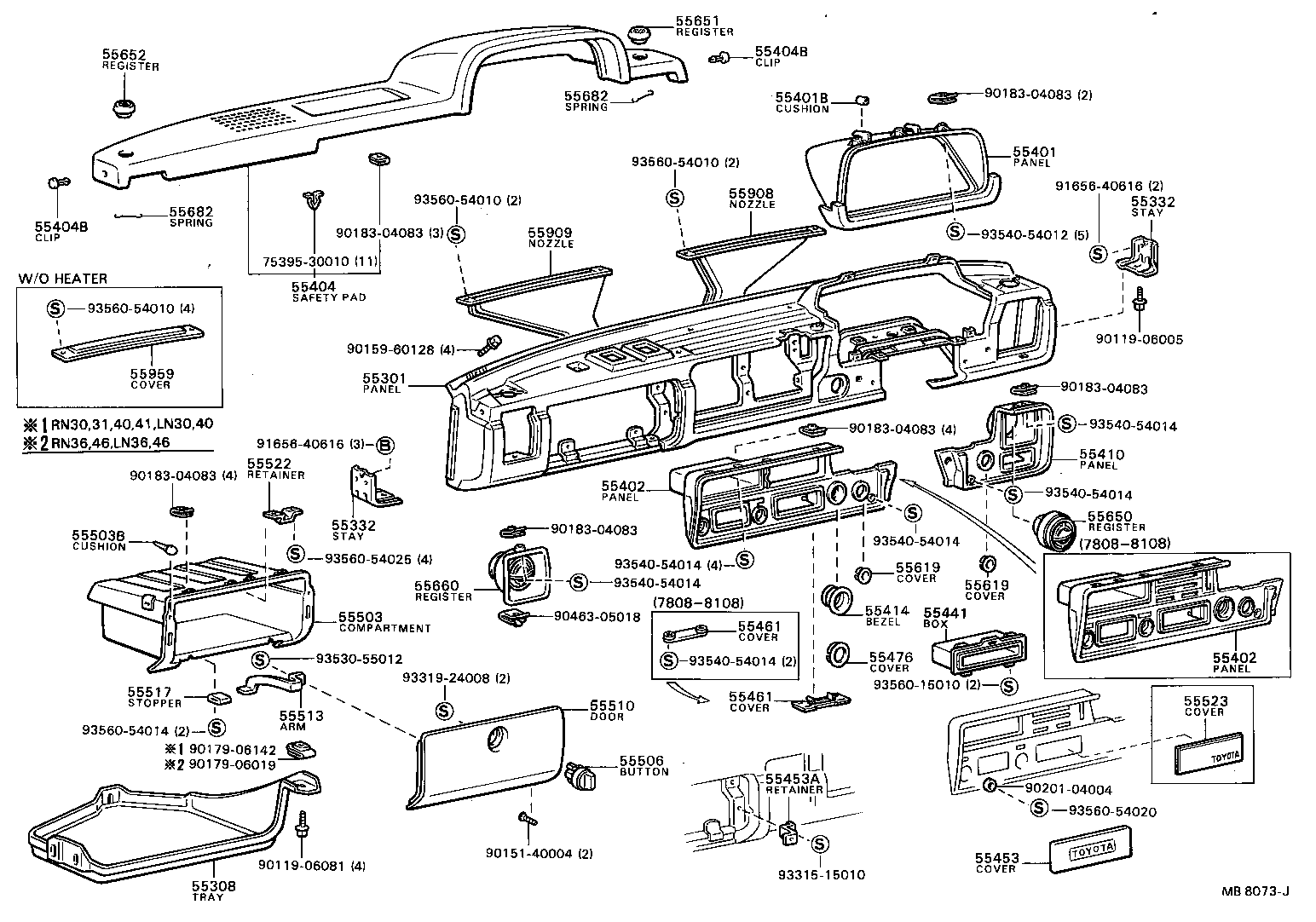

RN41R-JR3 (1978)
Toyota Hilux
(7808- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-89113 |
RN46..ARL..IV3;RN46..RHD..(EUR,GEN);LN30,40,RN3#,40,41..RHD |
1 | ||
| 55301-89117 |
LN3#,4#,RN3#,4#..RHD |
1 | ||
| 55308 - TRAY SUB-ASSY, INSTRUMENT PANEL UNDER | ||||
| 55611-89101 |
LN3#,4#,RN3#,4#..RHD |
1 | ||
| 55332 - STAY, INSTRUMENT PANEL | ||||
| 55327-89102 |
LN3#,4#,RN3#,4# LH |
1 | ||
| 55326-89101 |
LN3#,4#,RN3#,4# RH |
1 | ||
| 55332 - STAY, INSTRUMENT PANEL | ||||
| 55327-89102 |
LN3#,4#,RN3#,4# LH |
1 | ||
| 55326-89101 |
LN3#,4#,RN3#,4# RH |
1 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55411-8910304 |
LN3#,4#,RN3#,4# BLUE,BLUE,TRIM8# |
1 | ||
| 55411-8910305 |
LN3#,4#,RN3#,4# BEIGE,BEIGE,TRIM4# |
1 | ||
| 55411-8910301 |
LN3#,4#,RN3#,4# BLACK,BLACK,TRIM2# |
1 | ||
| 55401B - CUSHION, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55419-89101 |
LN3#,4#,RN3#,4# |
2 | ||
| 55402 - PANEL SUB-ASSY, INSTRUMENT LAYOUT, CENTER | ||||
| 55434-89102 |
RN46..ARL..IV3;RN46..RHD..(EUR,GEN);LN30,40,RN3#,40,41..RHD..STD W/*HEA |
1 | ||
| 55434-89103 |
LN30,40,RN30,36,4#..RHD..STD..(GEN,SA) W/*BV |
1 | ||
| 55434-89101 |
LN30,40,RN30,36,4#..RHD..STD..(GEN,SA) |
1 | ||
| 55405-89111 |
LN3#,4#..RHD..(GEN,SA) W/*BV |
1 | ||
| 55405-89111 |
RN30,36,4#..RHD..STD..GEN W/*BV |
1 | ||
| 55405-89112 |
LN3#,4#,RN3#,4#..RHD..STD W/*HEA & *BV |
1 | ||
| 55434-89123 |
LN3#,4#,RN30,36,4#..RHD..STD..(GEN,SA) |
1 | ||
| 55402 - PANEL SUB-ASSY, INSTRUMENT LAYOUT, CENTER | ||||
| 55434-89102 |
RN46..ARL..IV3;RN46..RHD..(EUR,GEN);LN30,40,RN3#,40,41..RHD..STD W/*HEA |
1 | ||
| 55434-89103 |
LN30,40,RN30,36,4#..RHD..STD..(GEN,SA) W/*BV |
1 | ||
| 55434-89101 |
LN30,40,RN30,36,4#..RHD..STD..(GEN,SA) |
1 | ||
| 55405-89111 |
LN3#,4#..RHD..(GEN,SA) W/*BV |
1 | ||
| 55405-89111 |
RN30,36,4#..RHD..STD..GEN W/*BV |
1 | ||
| 55405-89112 |
LN3#,4#,RN3#,4#..RHD..STD W/*HEA & *BV |
1 | ||
| 55434-89123 |
LN3#,4#,RN30,36,4#..RHD..STD..(GEN,SA) |
1 | ||
| 55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER | ||||
| 55401-8910104 |
RN46..RHD..GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41..RHD..(ARL,GEN,SA) W/O SIDE DEFROSTER,BLUE,BLUE,TRIM8# |
1 | ||
| 55401-8910204 |
RN30..4F..SA;RN3#,4#..RHD..(EUR,GEN) W/SIDE DEFROSTER,BLUE,BLUE,TRIM8# |
1 | ||
| 55401-8910101 |
RN46..RHD..GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41..RHD..(ARL,GEN,SA) W/O SIDE DEFROSTER,BLACK,BLACK,TRIM2# |
1 | ||
| 55401-8910201 |
RN30..4F..SA;RN3#,4#..RHD..(EUR,GEN) W/SIDE DEFROSTER,BLACK,BLACK,TRIM2# |
1 | ||
| 55401-8910205 |
RN30..4F..SA;RN3#,4#..RHD..(EUR,GEN) W/SIDE DEFROSTER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 55401-8910601 |
RN30..4F..SA;RN3#,4#..RHD..(EUR,GEN) W/SIDE DEFROSTER,BLACK,BLACK,TRIM2# |
1 | ||
| 55401-8910601 |
LN3#,4#..RHD..(EUR,GEN,SA) W/SIDE DEFROSTER,BLACK,BLACK,TRIM2# |
1 | ||
| 55401-8910604 |
RN30..4F..SA;RN3#,4#..RHD..(EUR,GEN) W/SIDE DEFROSTER,BLUE,BLUE,TRIM8# |
1 | ||
| 55401-8910105 |
RN46..RHD..GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41..RHD..(ARL,GEN,SA) W/O SIDE DEFROSTER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 55401-8910604 |
LN3#,4#..RHD..(EUR,GEN,SA) W/SIDE DEFROSTER,BLUE,BLUE,TRIM8# |
1 | ||
| 55401-8910505 |
LN3#,4#,RN3#,4#..RHD..(ARL,GEN,SA) W/O SIDE DEFROSTER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 55401-8910605 |
RN30..4F..SA;RN3#,4#..RHD..(EUR,GEN) W/SIDE DEFROSTER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 55401-8910504 |
LN3#,4#,RN3#,4#..RHD..(ARL,GEN,SA) W/O SIDE DEFROSTER,BLUE,BLUE,TRIM8# |
1 | ||
| 55401-8910605 |
LN3#,4#..RHD..(EUR,GEN,SA) W/SIDE DEFROSTER,BEIGE,BEIGE,TRIM4# |
1 | ||
| 55401-8910506 |
LN3#,4#,RN3#,4#..RHD..(ARL,GEN,SA) W/O SIDE DEFROSTER,BROWN,BROWN,TRIM4# |
1 | ||
| 55401-8910604 |
RN41..RHD..(GEN,SA)..ECB..CBU;LN3#,4#,RN30,36,4#..RHD..STD..(EUR,GEN,SA) W/SIDE DEFROSTER,BLUE,BLUE,TRIM8# |
1 | ||
| 55401-8910606 |
RN41..RHD..(GEN,SA)..ECB..CBU;LN3#,4#,RN30,36,4#..RHD..STD..(EUR,GEN,SA) W/SIDE DEFROSTER,BROWN,BROWN,TRIM4# |
1 | ||
| 55401-8910501 |
LN3#,4#,RN3#,4#..RHD..(ARL,GEN,SA) W/O SIDE DEFROSTER,BLACK,BLACK,TRIM2# |
1 | ||
| 55401-8910601 |
RN41..RHD..(GEN,SA)..ECB..CBU;LN3#,4#,RN30,36,4#..RHD..STD..(EUR,GEN,SA) W/SIDE DEFROSTER,BLACK,BLACK,TRIM2# |
1 | ||
| 55404B - CLIP, SAFETY PAD SET | ||||
| 55466-8910104 |
LN3#,4#,RN3#,4# BLUE,BLUE,TRIM8# |
2 | ||
| 55466-8910101 |
LN3#,4#,RN3#,4# BLACK,BLACK,TRIM2# |
2 | ||
| 55466-8910105 |
LN3#,4#,RN3#,4# BEIGE,BEIGE,TRIM4# |
2 | ||
| 55404B - CLIP, SAFETY PAD SET | ||||
| 55466-8910104 |
LN3#,4#,RN3#,4# BLUE,BLUE,TRIM8# |
2 | ||
| 55466-8910101 |
LN3#,4#,RN3#,4# BLACK,BLACK,TRIM2# |
2 | ||
| 55466-8910105 |
LN3#,4#,RN3#,4# BEIGE,BEIGE,TRIM4# |
2 | ||
| 55410 - PANEL ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-89108 |
LN3#,4#,RN3#,4#..RHD..(DLX,STD) |
1 | ||
| 55414 - BEZEL, CIGAR LIGHTER HOLE | ||||
| 55477-89101 |
LN3#,4#,RN3#,4# |
1 | ||
| 55453 - COVER, RADIO TUNER OPENING | ||||
| 55522-8910203 |
LN3#,4#,RN3#,4#..(DLX,STD)..(ARL,EUR,GEN,PHL,SA) DARK GRAY-M,GRAY,TRIM2#,4#,8# |
1 | ||
| 55522-8910103 |
LN3#,4#,RN3#,4#..DLX,STD GRAY,GRAY,TRIM2#,4#,8# |
1 | ||
| 55453A - RETAINER, RADIO TUNER OPENING, NO.1 | ||||
| 55437-89101 |
RN31..SR5..IV3;LN3#,4#,RN3#,4#..RHD..(DLX,STD) |
1 | ||
| 55461 - COVER, HEATER CONTROL HOLE | ||||
| 55548-89102 |
RN41..(DLX,STD)..(GEN,ME);LN30,40,RN30,31,40..(DLX,STD)..(GEN,ME,PHL,SA) |
1 | ||
| 55535-8910103 |
LN3#,4#,RN3#,4#..(DLX,STD)..(GEN,PHL,SA) GRAY,GRAY,TRIM2#,4#,8# |
1 | ||
| 55461 - COVER, HEATER CONTROL HOLE | ||||
| 55548-89102 |
RN41..(DLX,STD)..(GEN,ME);LN30,40,RN30,31,40..(DLX,STD)..(GEN,ME,PHL,SA) |
1 | ||
| 55535-8910103 |
LN3#,4#,RN3#,4#..(DLX,STD)..(GEN,PHL,SA) GRAY,GRAY,TRIM2#,4#,8# |
1 | ||
| 55476 - COVER, CIGARETTE LIGHTER HOLE | ||||
| 55532-89102 |
LN3#,4#,RN3#,4#..STD |
1 | ||
| 55503 - COMPARTMENT SUB-ASSY, GLOVE | ||||
| 55506-89101 |
LN3#,4#,RN3#,4# |
1 | ||
| 55503B - CUSHION(FOR GLOVE COMPARTMENT) | ||||
| 90541-04006 |
RN3#,40,41;RN46..EUR,GEN;RN46..ARL..IV3 |
2 | ||
| 55506 - BUTTON SUB-ASSY, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55560-12020 |
RN31,41..ARL,GEN,SA;LN3#,4#,RN30,36,40,46..STD |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55501-8910401 |
LN3#,4#,RN3#,4# BLACK,BLACK,TRIM2# |
1 | ||
| 55501-8910406 |
LN3#,4#,RN3#,4# BROWN,BROWN,TRIM4# |
1 | ||
| 55501-8910405 |
LN3#,4#,RN3#,4# BEIGE,BEIGE,TRIM4# |
1 | ||
| 55501-8910404 |
LN3#,4#,RN3#,4# BLUE,BLUE,TRIM8# |
1 | ||
| 55513 - ARM, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55556-89101 |
LN3#,4#,RN3#,4#..RHD |
1 | ||
| 55517 - STOPPER, GLOVE COMPARTMENT DOOR ARM | ||||
| 55517-89104 |
LN3#,4#,RN3#,4# |
1 | ||
| 55522 - RETAINER, GLOVE COMPARTMENT MALE | ||||
| 55561-89102 |
LN3#,4#,RN3#,4# |
1 | ||
| 55619 - COVER, SWITCH HOLE | ||||
| 55539-89102 |
RN31,41..RHD |
2 | ||
| 55619 - COVER, SWITCH HOLE | ||||
| 55539-89102 |
RN31,41..RHD |
2 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-89103 |
LN3#,4#,RN3#,4#..RHD |
1 | ||
| 55651 - REGISTER, INSTRUMENT PANEL, NO.1 | ||||
| 55671-8911201 |
LN3#,4#..GEN,SA BLACK,BLACK,TRIM2# |
1 | ||
| 55671-8911204 |
RN3#,4#..EUR,GEN BLUE,BLUE,TRIM8# |
1 | ||
| 55671-8911204 |
RN31,41..(GEN,ME,SA)..ECB;LN30,40,RN30,40..EUR,GEN,ME,SA BLUE,BLUE,TRIM8# |
1 | ||
| 55671-8911205 |
LN3#,4#..GEN,SA BEIGE,BEIGE,TRIM4# |
1 | ||
| 55671-8911201 |
RN31,41..(GEN,ME,SA)..ECB;LN30,40,RN30,40..EUR,GEN,ME,SA BLACK,BLACK,TRIM2# |
1 | ||
| 55671-8911205 |
RN3#,4#..EUR,GEN BEIGE,BEIGE,TRIM4# |
1 | ||
| 55671-8911206 |
RN41..(GEN,ME,SA)..ECB;LN30,40,RN30,31,40..EUR,GEN,ME,SA BROWN,BROWN,TRIM4# |
1 | ||
| 55671-8911204 |
LN3#,4#..GEN,SA BLUE,BLUE,TRIM8# |
1 | ||
| 55671-8911204 |
RN41..(GEN,ME,SA)..ECB;LN30,40,RN30,31,40..EUR,GEN,ME,SA BLUE,BLUE,TRIM8# |
1 | ||
| 55671-8911201 |
RN3#,4#..EUR,GEN BLACK,BLACK,TRIM2# |
1 | ||
| 55671-8911201 |
RN41..(GEN,ME,SA)..ECB;LN30,40,RN30,31,40..EUR,GEN,ME,SA BLACK,BLACK,TRIM2# |
1 | ||
| 55671-8911206 |
LN30,40,RN30,31,40,41..EUR,GEN,ME,SA BROWN,BROWN,TRIM4# |
1 | ||
| 55652 - REGISTER, INSTRUMENT PANEL, NO.2 | ||||
| 55671-8911304 |
RN3#,4#..EUR,GEN BLUE,BLUE,TRIM8# |
1 | ||
| 55671-8911301 |
RN3#,4#..EUR,GEN BLACK,BLACK,TRIM2# |
1 | ||
| 55671-8911304 |
LN3#,4#..GEN,SA BLUE,BLUE,TRIM8# |
1 | ||
| 55671-8911301 |
LN3#,4#..GEN,SA BLACK,BLACK,TRIM2# |
1 | ||
| 55671-8911305 |
RN3#,4#..EUR,GEN BEIGE,BEIGE,TRIM4# |
1 | ||
| 55671-8911304 |
RN41..(GEN,ME,SA)..ECB;LN30,40,RN30,31,40..EUR,GEN,ME,SA BLUE,BLUE,TRIM8# |
1 | ||
| 55671-8911304 |
RN31,41..(GEN,ME,SA)..ECB;LN30,40,RN30,40..EUR,GEN,ME,SA BLUE,BLUE,TRIM8# |
1 | ||
| 55671-8911301 |
RN41..(GEN,ME,SA)..ECB;LN30,40,RN30,31,40..EUR,GEN,ME,SA BLACK,BLACK,TRIM2# |
1 | ||
| 55671-8911306 |
LN30,40,RN30,31,40,41..EUR,GEN,ME,SA BROWN,BROWN,TRIM4# |
1 | ||
| 55671-8911305 |
LN3#,4#..GEN,SA BEIGE,BEIGE,TRIM4# |
1 | ||
| 55671-8911306 |
RN41..(GEN,ME,SA)..ECB;LN30,40,RN30,31,40..EUR,GEN,ME,SA BROWN,BROWN,TRIM4# |
1 | ||
| 55671-8911301 |
RN31,41..(GEN,ME,SA)..ECB;LN30,40,RN30,40..EUR,GEN,ME,SA BLACK,BLACK,TRIM2# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55650-8910103 |
LN3#,4#,RN3#,4#..RHD..(DLX,STD) DARK GRAY-M,GRAY,TRIM2#,4#,8# |
1 | ||
| 55682 - SPRING, INSTRUMENT PANEL REGISTER SUPPORT | ||||
| 55686-89101 |
LN3#,4#..GEN,SA |
2 | ||
| 55686-89101 |
RN31,41..(GEN,ME,SA)..ECB;LN30,40,RN30,40..EUR,GEN,ME,SA |
2 | ||
| 55686-89101 |
RN3#,4#..EUR,GEN |
2 | ||
| 55686-89101 |
RN41..(GEN,ME,SA)..ECB;LN30,40,RN30,31,40..EUR,GEN,ME,SA |
2 | ||
| 55682 - SPRING, INSTRUMENT PANEL REGISTER SUPPORT | ||||
| 55686-89101 |
LN3#,4#..GEN,SA |
2 | ||
| 55686-89101 |
RN31,41..(GEN,ME,SA)..ECB;LN30,40,RN30,40..EUR,GEN,ME,SA |
2 | ||
| 55686-89101 |
RN3#,4#..EUR,GEN |
2 | ||
| 55686-89101 |
RN41..(GEN,ME,SA)..ECB;LN30,40,RN30,31,40..EUR,GEN,ME,SA |
2 | ||
| 55908 - NOZZLE SUB-ASSY, DEFROSTER, RH | ||||
| 55950-89101 |
LN3#,4#,RN3#,4# |
1 | ||
| 55909 - NOZZLE SUB-ASSY, DEFROSTER, LH | ||||
| 55960-89101 |
LN3#,4#,RN3#,4# |
1 | ||
| 55959 - COVER, DEFROSTER NOZZLE OPENING, NO.1 | ||||
| 55959-89101 |
RN30,31,40,41..EUR,GEN |
2 | ||
| 55959-89101 |
RN31,41..GEN,ME |
2 | ||
| Common parts | ||||
| 75395-30010 | ||||
| 90119-06005 | ||||
| 90119-06081 | ||||
| 90151-40004 | ||||
| 90159-60128 | ||||
| 90179-06019 | ||||
| 90179-06142 | ||||
| 90183-04083 | ||||
| 90201-04004 | ||||
| 90463-05018 | ||||
| 91656-40616 | ||||
| 93315-15010 | ||||
| 93319-24008 | ||||
| 93530-55012 | ||||
| 93540-54012 | ||||
| 93540-54014 | ||||
| 93560-15010 | ||||
| 93560-54010 | ||||
| 93560-54014 | ||||
| 93560-54020 | ||||
| 93560-54025 | ||||
