RN41R-JD3 (1978)

Toyota Hilux

Production Aug 1978 - Aug 1981
Engine 18R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )LN3#,4#

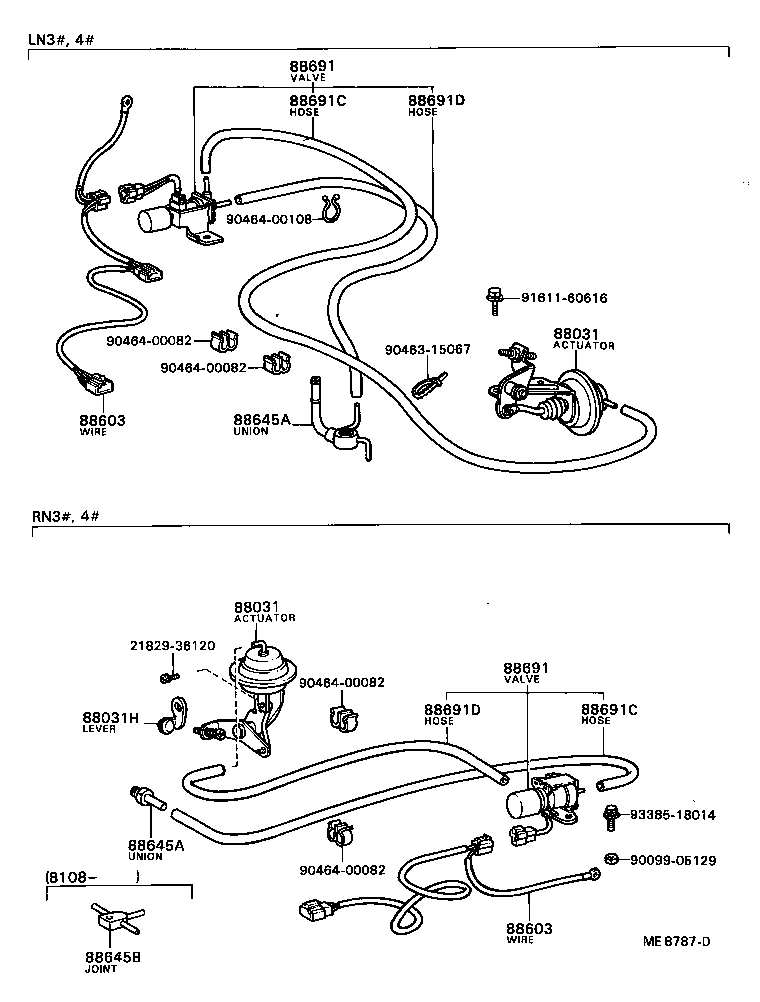

Click highlighted areas on diagram

diagram 2182936120 88031 88031 88031H 88603 88603 88645A 88645A 88645B 88691 88691 88691C 88691C 88691D 88691D 9009905129 9046315067 9046400082 9046400082 9046400082 9046400082 9046400108 9161160616 9338518014
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-30060

LN3#,4#..GEN

 1
21099-36110

RN46..GEN;RN46..ARL..IV3;RN31,36,41..ARL,GEN,SA

 1
88031 - ACTUATOR SET, IDLE-UP
88031-30060

LN3#,4#..GEN

 1
21099-36110

RN46..GEN;RN46..ARL..IV3;RN31,36,41..ARL,GEN,SA

 1
88031H - LEVER(FOR IDLE-UP ACTUATOR)
21409-36110

RN31,41..RHD..(GEN,SA)

 1
88603 - WIRE, IDLE UP DEVICE
88648-89105

RN46..RHD..GEN;RN46..ARL..IV3;RN3#,40,41..RHD..(ARL,GEN,SA)

 1
88603 - WIRE, IDLE UP DEVICE
88648-89105

RN46..RHD..GEN;RN46..ARL..IV3;RN3#,40,41..RHD..(ARL,GEN,SA)

 1
88645A - UNION (FOR IDLE UP DEVICE)
90404-51093

RN46..GEN;RN46..ARL..IV3;RN3#,40,41..ARL,GEN,SA

 1
88645A - UNION (FOR IDLE UP DEVICE)
90404-51093

RN46..GEN;RN46..ARL..IV3;RN3#,40,41..ARL,GEN,SA

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-89109

LN3#,4#..GEN

 1
88690-89113

RN46..GEN;RN46..ARL..IV3;RN31,36,41..ARL,GEN

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-89109

LN3#,4#..GEN

 1
88690-89113

RN46..GEN;RN46..ARL..IV3;RN31,36,41..ARL,GEN

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
88689-89101

LN3#,4#..GEN

L=1500

 1
95411-10060

RN31,36,41;RN46..EUR,GEN;RN46..ARL..IV3

*H,L=450,MARK=#0

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
88689-89101

LN3#,4#..GEN

L=1500

 1
95411-10060

RN31,36,41;RN46..EUR,GEN;RN46..ARL..IV3

*H,L=450,MARK=#0

 1
88691D - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.2
95411-19960

RN31,36,41;RN46..EUR,GEN;RN46..ARL..IV3

*H,L=390,MARK=#*

 1
95411-10095

LN3#,4#..GEN

*H,L=650,MARK=#0

 1
88691D - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.2
95411-19960

RN31,36,41;RN46..EUR,GEN;RN46..ARL..IV3

*H,L=390,MARK=#*

 1
95411-10095

LN3#,4#..GEN

*H,L=650,MARK=#0

 1
Common parts
21829-36120
90099-05129
90463-15067
90464-00082
90464-00108
91611-60616
93385-18014
