RN41R-JD3 (1978)

Toyota Hilux

Production Aug 1978 - Aug 1981
Engine 18R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )LN30,40,RN30,31,40,41..T1

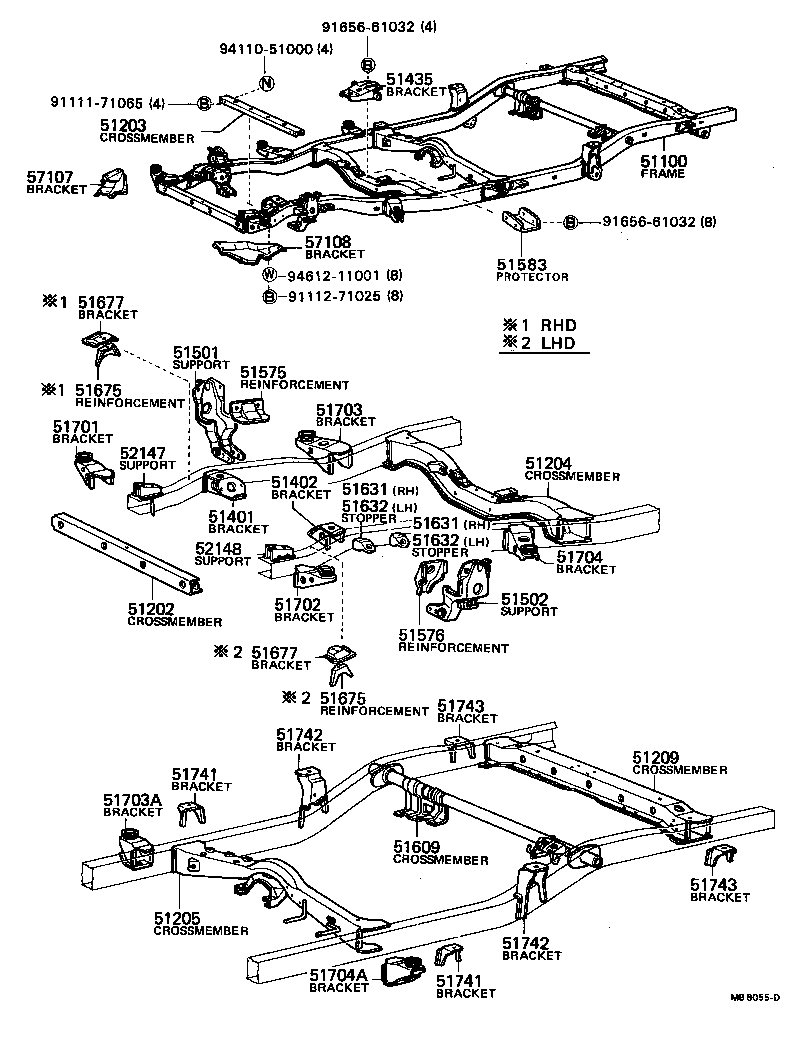

Click highlighted areas on diagram

diagram 51100 51202 51203 51204 51205 51209 51401 51402 51435 51501 51502 51575 51576 51583 51609 51631 51631 51632 51632 51675 51675 51677 51677 51701 51702 51703 51703A 51704 51704A 51741 51741 51742 51742 51743 51743 52147 52148 57107 57108 9111171065 9111271025 9165661032 9165661032 9411051000 9461211001
Part # Description Qty Price
51100 - FRAME ASSY
51001-35830

RN41..RHD..GEN..ECB

 1
51202 - CROSSMEMBER SUB-ASSY, FRAME, NO.1
51201-35070

LN30,40,RN30,31,40,41

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-35110

LN30,40,RN30,31,40,41

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-35150

LN30,40,RN30,31,40,41..RHD

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51204-35140

LN40,RN40,41..T1

 1
51209 - CROSSMEMBER SUB-ASSY, FRAME, NO.8
51209-35080

LN3#,4#,RN3#,4#

 1
51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51401-35140

RN31,41

 1
51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51402-35140

RN31,41

 1
51435 - BRACKET, ENGINE REAR MOUNTING
51431-35020

LN30,40,RN30,31,40,41..4F,4H

 1
51501 - SUPPORT SUB-ASSY, SUSPENSION ARM, RH
51501-35010

LN30,40,RN30,31,40,41

 1
51502 - SUPPORT SUB-ASSY, SUSPENSION ARM, LH
51502-35010

LN30,40,RN30,31,40,41

 1
51575 - REINFORCEMENT, SUSPENSION ARM SUPPORT, NO.1
51573-35010

LN30,40,RN30,31,40,41

 2
51576 - REINFORCEMENT, SUSPENSION ARM SUPPORT, NO.2
51575-35020

LN30,40,RN30,31,40,41

 2
51609 - CROSSMEMBER SUB-ASSY, REAR SHOCK ABSORBER SUPPORT
51205-35080

LN3#,4#,RN3#,4#..T1

 1
51631 - STOPPER, FRONT SUSPENSION REBOUND, RH
51632-35020

LN30,40,RN30,31,40,41

FR

 1
51631-35020

LN30,40,RN30,31,40,41

RR

 1
51631 - STOPPER, FRONT SUSPENSION REBOUND, RH
51632-35020

LN30,40,RN30,31,40,41

FR

 1
51631-35020

LN30,40,RN30,31,40,41

RR

 1
51632 - STOPPER, FRONT SUSPENSION REBOUND, LH
51631-35020

LN30,40,RN30,31,40,41

FR

 1
51632-35020

LN30,40,RN30,31,40,41

RR

 1
51632 - STOPPER, FRONT SUSPENSION REBOUND, LH
51631-35020

LN30,40,RN30,31,40,41

FR

 1
51632-35020

LN30,40,RN30,31,40,41

RR

 1
51675 - REINFORCEMENT, STEERING GEAR BOX SUPPORT
51675-35070

LN30,40,RN30,31,40,41

 1
51675 - REINFORCEMENT, STEERING GEAR BOX SUPPORT
51675-35070

LN30,40,RN30,31,40,41

 1
51677 - BRACKET, STEERING GEAR BOX
51679-35010

LN30,40,RN30,31,40,41..RHD

 1
51677 - BRACKET, STEERING GEAR BOX
51679-35010

LN30,40,RN30,31,40,41..RHD

 1
51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51701-35050

LN30,40,RN30,31,40,41

 1
51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH
51701-35050

LN30,40,RN30,31,40,41

 1
51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51703-35010

LN30,40,RN30,31,40,41

 1
51703A - BRACKET SUB-ASSY, CAB REAR MOUNTING, RH
51705-35040

LN3#,46,RN36,46;LN40,RN30,31,40,41..GEN,ME,PHL,SA

 1
51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
51703-35010

LN30,40,RN30,31,40,41

 1
51704A - BRACKET SUB-ASSY, CAB REAR MOUNTING, LH
51705-35040

LN3#,46,RN36,46;LN40,RN30,31,40,41..GEN,ME,PHL,SA

 1
51741 - BRACKET, REAR BODY MOUNTING, NO.1
51741-35050

LN3#,4#,RN3#,4#..T1

 2
51741 - BRACKET, REAR BODY MOUNTING, NO.1
51741-35050

LN3#,4#,RN3#,4#..T1

 2
51742 - BRACKET, BODY MOUNTING, NO.2
51743-35060

LN3#,4#,RN3#,4#..T1

LH

 1
51742-35040

LN3#,4#,RN3#,4#..T1

RH

 1
51742 - BRACKET, BODY MOUNTING, NO.2
51743-35060

LN3#,4#,RN3#,4#..T1

LH

 1
51742-35040

LN3#,4#,RN3#,4#..T1

RH

 1
51743 - BRACKET, BODY MOUNTING, NO.3
51741-35050

LN3#,4#,RN3#,4#

 2
51743 - BRACKET, BODY MOUNTING, NO.3
51741-35050

LN3#,4#,RN3#,4#

 2
52147 - SUPPORT, FRONT BUMPER, RH
52147-35010

LN30,40,RN30,31,40,41

 1
52148 - SUPPORT, FRONT BUMPER, LH
52148-35010

LN30,40,RN30,31,40,41

 1
57107 - BRACKET SUB-ASSY, STRUT BAR, RH
57107-35020

LN30,40,RN30,31,40,41

 1
57108 - BRACKET SUB-ASSY, STRUT BAR, LH
57108-35020

LN30,40,RN30,31,40,41

 1
Common parts
91111-71065
91112-71025
91656-61032
94110-51000
94612-11001
