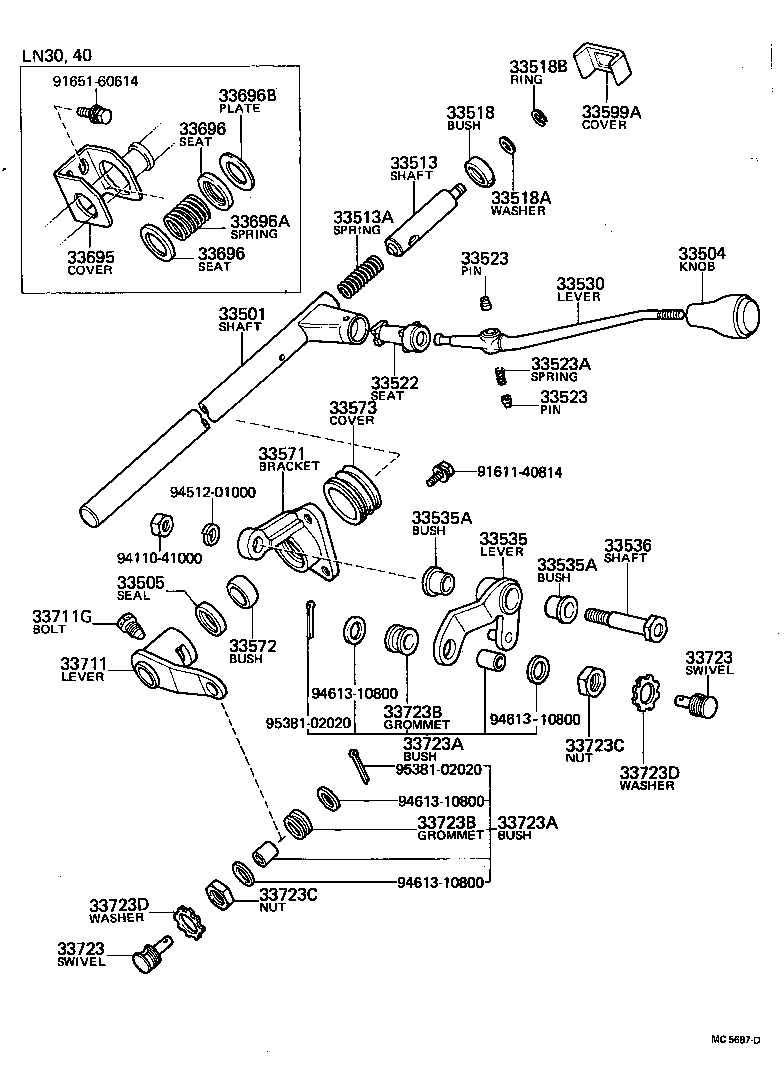

RN41R-JD3 (1978)
Toyota Hilux
(7808- )4H,5H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33501 - SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT) | ||||
| 33501-35110 |
RN30,31,40,41..4H |
1 | ||
| 33504 - KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT) | ||||
| 33504-30110 |
LN30,40,RN30,31,40,41..4H,5H |
1 | ||
| 33505 - SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT) | ||||
| 33505-30010 |
LN30,40,RN30,31,40,41..4H,5H |
1 | ||
| 33513 - SHAFT, CONTROL SHAFT BRACKET, UPPER | ||||
| 33513-35040 |
LN30,40,RN30,31,40,41..4H,5H |
1 | ||
| 33513A - SPRING, COMPRESSION (FOR BRACKET UPPER SHAFT) | ||||
| 90501-16690 |
LN30,40,RN30,31,40,41..4H,5H |
1 | ||
| 33518 - BUSH, UPPER CONTROL SHAFT PIECE | ||||
| 33518-35010 |
LN30,40,RN30,31,40,41..4H,5H |
1 | ||
| 33518A - WASHER, PLATE (FOR UPPER CONTROL SHAFT PIECE BUSH) | ||||
| 90201-08056 |
LN30,40,RN30,31,40,41..4H,5H |
1 | ||
| 33518B - RING, E (FOR UPPER CONTROL SHAFT PIECE BUSH) | ||||
| 90523-06019 |
LN30,40,RN30,31,40,41..4H,5H |
1 | ||
| 33522 - SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT) | ||||
| 33522-30030 |
LN30,40,RN30,31,40,41..4H,5H |
1 | ||
| 33523 - PIN, SHIFT LEVER (FOR COLUMN SHIFT) | ||||
| 33523-30010 |
LN30,40,RN30,31,40,41..4H,5H |
2 | ||
| 33523 - PIN, SHIFT LEVER (FOR COLUMN SHIFT) | ||||
| 33523-30010 |
LN30,40,RN30,31,40,41..4H,5H |
2 | ||
| 33523A - SPRING, COMPRESSION | ||||
| 90501-04062 |
LN30,40,RN30,31,40,41..4H,5H |
1 | ||
| 33530 - LEVER ASSY, SHIFT (FOR COLUMN SHIFT) | ||||
| 33541-35100 |
LN30,40,RN30,31,40,41..4H,5H |
1 | ||
| 33535 - LEVER, CONTROL SELECT (FOR COLUMN SHIFT) | ||||
| 33535-35060 |
LN30,40,RN30,31,40,41..4H,5H |
1 | ||
| 33535A - BUSH (FOR CONTROL SELECT LEVER) | ||||
| 90386-13007 |
LN30,40,RN30,31,40,41..4H,5H |
2 | ||
| 33535A - BUSH (FOR CONTROL SELECT LEVER) | ||||
| 90386-13007 |
LN30,40,RN30,31,40,41..4H,5H |
2 | ||
| 33536 - SHAFT, CONTROL SELECT LEVER (FOR COLUMN SHIFT) | ||||
| 33536-25010 |
LN30,40,RN30,31,40,41..4H,5H |
1 | ||
| 33571 - BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT) | ||||
| 33571-35070 |
LN30,40,RN30,31,40,41..4H,5H |
1 | ||
| 33572 - BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT) | ||||
| 33572-35020 |
LN30,40,RN30,31,40,41..4H,5H |
1 | ||
| 33573 - COVER, CONTROL SHAFT DUST, LOWER | ||||
| 33577-35010 |
LN30,40,RN30,31,40,41..4H,5H |
1 | ||
| 33599A - COVER, UPPER BRACKET | ||||
| 33599-35010 |
RN30,31,40,41..4H |
1 | ||
| 33711 - LEVER, CONTROL SHAFT (FOR COLUMN SHIFT) | ||||
| 33527-35070 |
LN30,40,RN30,31,40,41..4H,5H |
1 | ||
| 33711G - BOLT, CONTROL SHAFT LEVER LOCK | ||||
| 33218-35010 |
LN30,40,RN30,31,40,41..4H,5H |
1 | ||
| 33723 - SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT) | ||||
| 33723-12020 |
LN30,40,RN30,31,40,41..4H,5H |
2 | ||
| 33723 - SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT) | ||||
| 33723-12020 |
LN30,40,RN30,31,40,41..4H,5H |
2 | ||
| 33723A - BUSH (FOR COLUMN SHIFT CONTROL SHAFT) | ||||
| 90999-99017 |
LN30,40,RN30,31,40,41..4H,5H |
2 | ||
| 33723A - BUSH (FOR COLUMN SHIFT CONTROL SHAFT) | ||||
| 90999-99017 |
LN30,40,RN30,31,40,41..4H,5H |
2 | ||
| 33723B - GROMMET (FOR COLUMN SHIFT CONTROL SHAFT) | ||||
| 90480-17177 |
LN30,40,RN30,31,40,41..4H,5H |
2 | ||
| 33723B - GROMMET (FOR COLUMN SHIFT CONTROL SHAFT) | ||||
| 90480-17177 |
LN30,40,RN30,31,40,41..4H,5H |
2 | ||
| 33723C - NUT, HEXAGON (FOR CONTROL ROD SETTING) | ||||
| 90170-18159 |
LN30,40,RN30,31,40,41..4H,5H |
2 | ||
| 33723C - NUT, HEXAGON (FOR CONTROL ROD SETTING) | ||||
| 90170-18159 |
LN30,40,RN30,31,40,41..4H,5H |
2 | ||
| 33723D - WASHER, TOOTHED (FOR CONTROL ROD SETTING) | ||||
| 90205-18012 |
LN30,40,RN30,31,40,41..4H,5H |
2 | ||
| 33723D - WASHER, TOOTHED (FOR CONTROL ROD SETTING) | ||||
| 90205-18012 |
LN30,40,RN30,31,40,41..4H,5H |
2 | ||
| Common parts | ||||
| 91611-40814 | ||||
| 91651-60614 | ||||
| 94110-41000 | ||||
| 94512-01000 | ||||
| 94613-10800 | ||||
| 95381-02020 | ||||

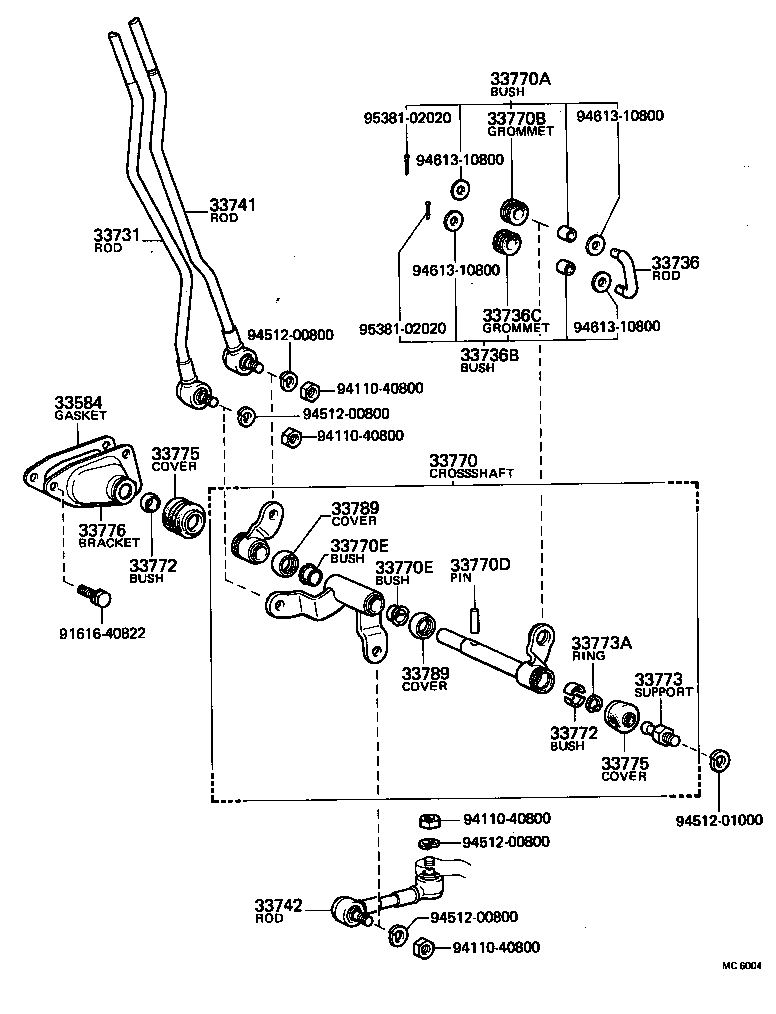

(7808- )RN31,41..4H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33584 - GASKET, CONTROL SHIFT LEVER RETAINER (FOR COLUMN SHIFT) | ||||
| 33584-35020 |
LN30,40,RN30,31,40,41..4H,5H |
1 | ||
| 33731 - ROD, GEAR SELECTING, NO.1 (FOR COLUMN SHIFT) | ||||
| 33720-35110 |
RN31,41..4H |
1 | ||
| 33736 - ROD, GEAR SELECTING, NO.2(FOR COLUMN SHIFT) | ||||
| 33777-35010 |
RN31,41..4H |
1 | ||
| 33736B - BUSH(FOR GEAR SELECTING ROD, NO.2) | ||||
| 90999-99017 |
RN30,31,40,41..4H |
1 | ||
| 33736C - GROMMET(FOR GEAR SELECTING ROD, NO.2) | ||||
| 90480-17177 |
RN30,31,40,41..4H |
1 | ||
| 33741 - ROD, GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT) | ||||
| 33710-35080 |
LN30,40,RN30,31,40,41..4H,5H |
1 | ||
| 33742 - ROD, GEAR SHIFTING, NO.2(FOR COLUMN SHIFT) | ||||
| 33730-35010 |
RN30,31,40,41..4H |
1 | ||
| 33770 - SHAFT ASSY, CROSS (FOR COLUMN SHIFT) | ||||
| 33770-35070 |
RN31,41..4H |
1 | ||
| 33770A - BUSH (FOR CROSS SHAFT) | ||||
| 90999-99017 |
RN30,31,40,41..4H |
1 | ||
| 33770B - GROMET (FOR COLUMN SHIFT CROSS SHAFT) | ||||
| 90480-17177 |
RN30,31,40,41..4H |
1 | ||
| 33770D - PIN (FOR CROSS SHAFT) | ||||
| 90256-06001 |
LN30,40,RN31,41..4H,5H |
1 | ||
| 33770E - BUSH (FOR CROSS SHAFT) | ||||
| 90386-13007 |
LN30,40,RN31,41..4H,5H |
2 | ||
| 33770E - BUSH (FOR CROSS SHAFT) | ||||
| 90386-13007 |
LN30,40,RN31,41..4H,5H |
2 | ||
| 33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT) | ||||
| 33772-35011 |
LN30,40,RN30,31,40,41..4H,5H FRAME SIDE |
2 | ||
| 33772-20010 |
LN30,40,RN30,31,40,41..4H,5H MISSION SIDE |
4 | ||
| 33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT) | ||||
| 33772-35011 |
LN30,40,RN30,31,40,41..4H,5H FRAME SIDE |
2 | ||
| 33772-20010 |
LN30,40,RN30,31,40,41..4H,5H MISSION SIDE |
4 | ||
| 33773 - SUPPORT, CROSS SHAFT, NO.1 (FOR COLUM SHIFT) | ||||
| 33773-20011 |
LN30,40,RN30,31,40,41..4H,5H |
2 | ||
| 33773A - RING, HOLE SNAP (FOR CROSS SHAFT SUPPORT SNAP) | ||||
| 96151-01600 |
LN30,40,RN30,31,40,41..4H,5H |
2 | ||
| 33775 - COVER, CROSS SHAFT DUST (FOR COLUMN SHIFT) | ||||
| 33775-35020 |
LN30,40,RN31,41..4H,5H FRAME SIDE |
1 | ||
| 33775-20020 |
LN30,40,RN30,31,40,41..4H,5H MISSION SIDE |
2 | ||
| 33775 - COVER, CROSS SHAFT DUST (FOR COLUMN SHIFT) | ||||
| 33775-35020 |
LN30,40,RN31,41..4H,5H FRAME SIDE |
1 | ||
| 33775-20020 |
LN30,40,RN30,31,40,41..4H,5H MISSION SIDE |
2 | ||
| 33776 - BRACKET, CROSS SHAFT, NO.1 (FOR COLUMN SHIFT) | ||||
| 33776-35070 |
LN30,40,RN31,41..4H,5H |
1 | ||
| 33789 - COVER, CROSS SHAFT DUST(FOR COLUMN SHIFT) | ||||
| 33789-12010 |
RN31,41..4H |
2 | ||
| 33789 - COVER, CROSS SHAFT DUST(FOR COLUMN SHIFT) | ||||
| 33789-12010 |
RN31,41..4H |
2 | ||
| Common parts | ||||
| 91616-40822 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94613-10800 | ||||
| 95381-02020 | ||||
