RN41R-JD3 (1978)

Toyota Hilux

Production Aug 1978 - Aug 1981
Engine 18R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )

Click highlighted areas on diagram

diagram 31301 31301 31301A 31301A 31301B 31301B 31301C 31301C 31301C 31301C 31301F 31301F 31305 31321 31321 31324 31324 31324A 31324A 31453A 31453A 31453B 31453B 9046816012 9046816012 9411041000 9411041000 9412040800 9412040800 9451201000 9451201000
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-35100

LN3#,4#,RN3#,4#..RHD

 1
31301 - PEDAL SUB-ASSY, CLUTCH
31301-35100

LN3#,4#,RN3#,4#..RHD

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90506-14019

LN3#,4#,RN3#,4#

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90506-14019

LN3#,4#,RN3#,4#

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06008

LN3#,4#,RN3#,4#

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06008

LN3#,4#,RN3#,4#

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

LN3#,4#,RN3#,4#

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

LN3#,4#,RN3#,4#

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

LN3#,4#,RN3#,4#

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

LN3#,4#,RN3#,4#

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90109-08001

RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41

 1
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90109-08001

RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41

 1
31321 - PAD, CLUTCH PEDAL
31321-14010

LN3#,4#,RN3#,4#

 1
31321 - PAD, CLUTCH PEDAL
31321-14010

LN3#,4#,RN3#,4#

 1
31324 - SHAFT, CLUTCH PEDAL
91121-51060

LN3#,4#,RN3#,4#

 1
31324 - SHAFT, CLUTCH PEDAL
91121-51060

LN3#,4#,RN3#,4#

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

LN3#,4#,RN3#,4#

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

LN3#,4#,RN3#,4#

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08018

RN3#,40,41;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA

L=29.5

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08018

RN3#,40,41;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA

L=29.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

LN3#,4#,RN3#,4#

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

LN3#,4#,RN3#,4#

 1
Common parts
90468-16012
94110-41000
94120-40800
94512-01000

(7808- )RHD

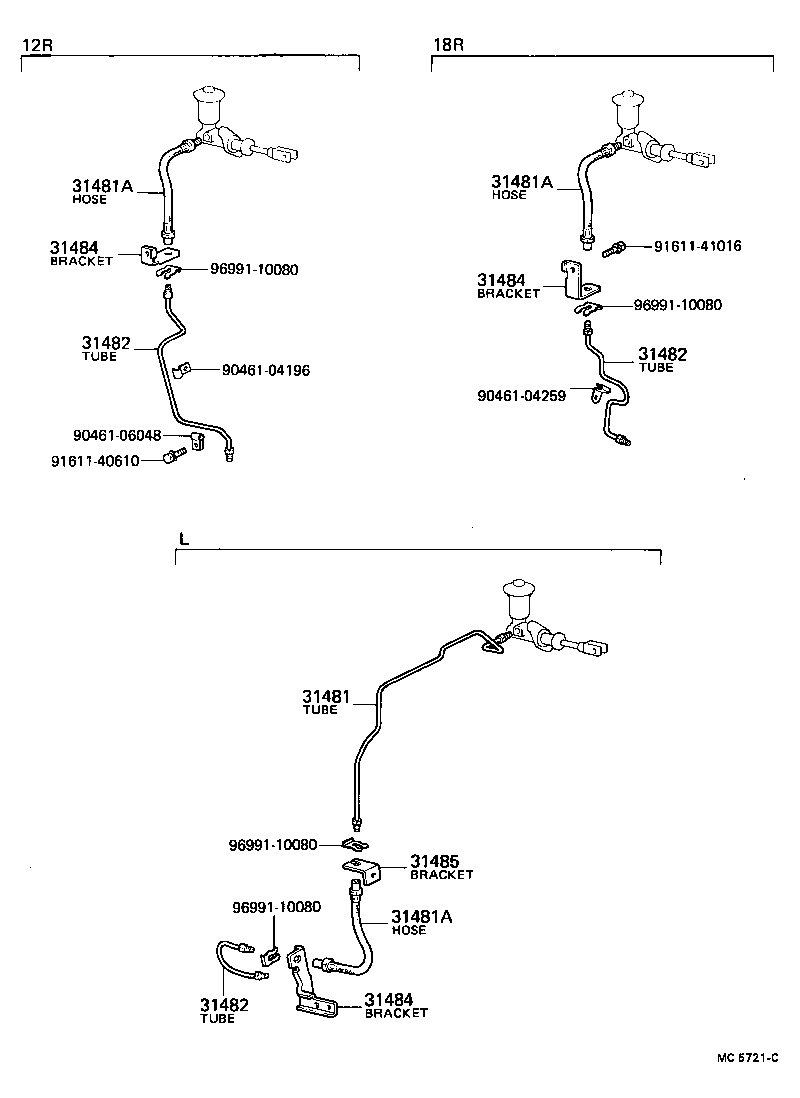

Click highlighted areas on diagram

diagram 31481 31481A 31481A 31481A 31482 31482 31482 31484 31484 31484 31485 9046104196 9046104259 9046106048 9161140610 9161141016 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
31481A - HOSE, CLUTCH, NO.1
96910-31263

RN3#,4#..RHD

 1
31481A - HOSE, CLUTCH, NO.1
96910-31263

RN3#,4#..RHD

 1
31481A - HOSE, CLUTCH, NO.1
96910-31263

RN3#,4#..RHD

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-35110

RN31,41

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-35110

RN31,41

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-35110

RN31,41

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-35070

RN31,36,41;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-35070

RN31,36,41;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-35070

RN31,36,41;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31485-35100

LN3#,4#;RN46..ARL..CBU

 1
Common parts
90461-04196
90461-04259
90461-06048
91611-40610
91611-41016
96991-10080
