RN41R-JD (1978)

Toyota Hilux

Production Aug 1978 - Aug 1981
Engine 18R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7808-8108)

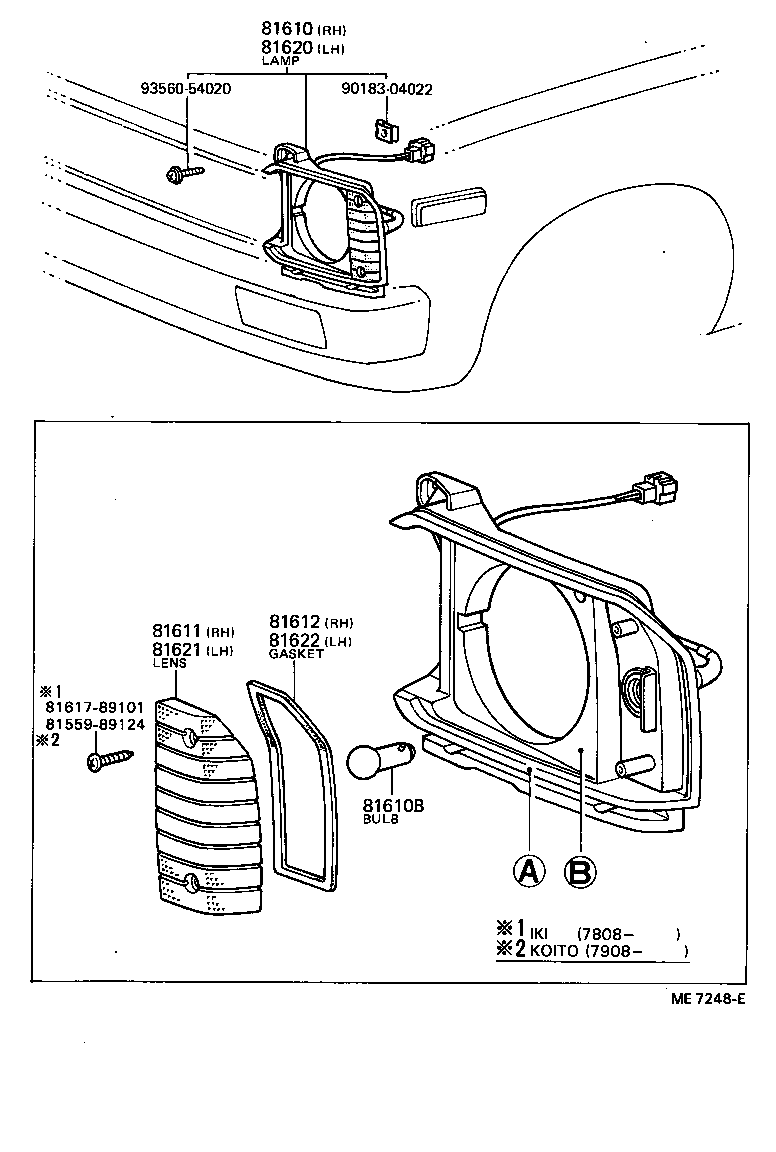

Click highlighted areas on diagram

diagram 8155989124 81610 81610B 81611 81612 8161789101 81620 81621 81622 9018304022 9356054020
Part # Description Qty Price
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-39155

RN31,41..DLX

A=BLACK-M /B=DARK GRAY-M,IKI

 1
81610-39335

RN31,41..DLX

A=BLACK-M /B=DARK GRAY-M,KOITO

 1
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-11050

LN3#,4#,RN3#,4#

12V 5W,12V 5W

 2
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-89111

LN30,40,RN30,31,40,41

KOITO

 1
81611-89101

LN3#,4#,RN3#,4#

IKI

 1
81612 - GASKET, PARKING AND CLEARANCE LAMP LENS, RH
81612-89111

LN30,40,RN30,31,40,41

KOITO

 1
81612-89101

LN3#,4#,RN3#,4#

IKI

 1
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-39155

RN31,41..DLX

A=BLACK-M /B=DARK GRAY-M,IKI

 1
81620-39335

RN31,41..DLX

A=BLACK-M /B=DARK GRAY-M,KOITO

 1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-89111

LN30,40,RN30,31,40,41

KOITO

 1
81621-89101

LN3#,4#,RN3#,4#

IKI

 1
81622 - GASKET, PARKING AND CLEARANCE LAMP LENS, LH
81612-89111

LN30,40,RN30,31,40,41

KOITO

 1
81622-89101

LN3#,4#,RN3#,4#

IKI

 1
Common parts
81559-89124
81617-89101
90183-04022
93560-54020
