RN41R-JD (1978)

Toyota Hilux

Production Aug 1978 - Aug 1981
Engine 18R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )LN30,40,RN30,31,40,41..4F,4H

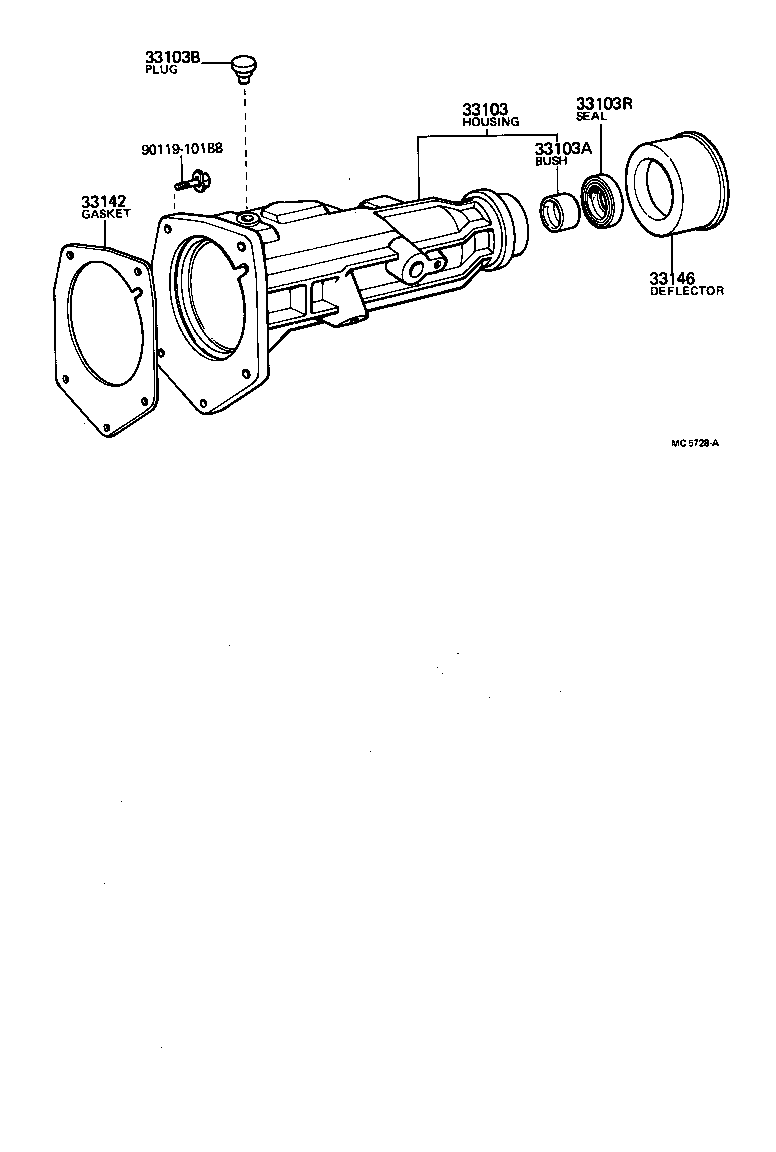

Click highlighted areas on diagram

diagram 33103 33103A 33103B 33103R 33142 33146 9011910188
Part # Description Qty Price
33103 - HOUSING SUB-ASSY, EXTENSION(MTM)
33103-35050

RN30,31,40,41..4H

 1
33103A - BUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90999-72023

LN30,40,RN30,31,40,41..4F,4H

 1
33103B - PLUG, BREATHER(FOR TRANSMISSION EXTENSION HOUSING)
90930-03001

LN30,40,RN30,31,40,41..4F,4H

 1
33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90311-38043

LN30,40,RN30,31,40,41..4F,4H

 1
33142 - GASKET, EXTENSION HOUSING(MTM)
33142-26010

LN30,40,RN30,31,40,41..4F,4H

 1
33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM)
33146-30010

LN30,40,RN30,31,40,41

 1
Common parts
90119-10188
