RN40R-KRS (1978)

Toyota Hilux

Production Aug 1978 - Mar 1984
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )12R#

Click highlighted areas on diagram

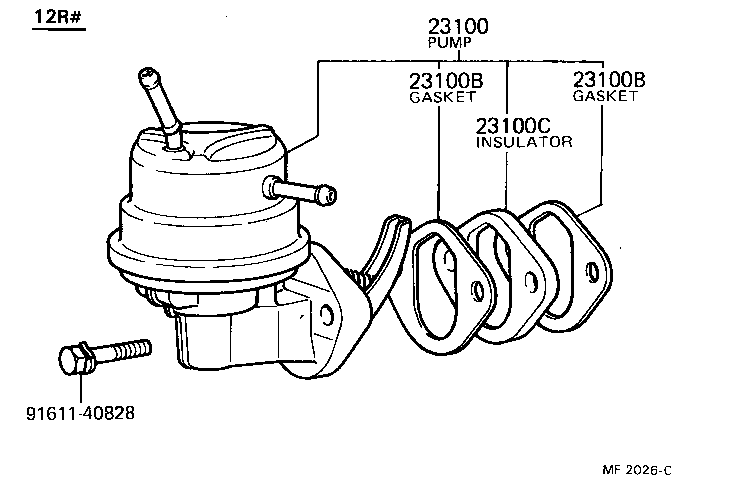

diagram 23100 23100B 23100B 23100C 9161140828
Part # Description Qty Price
23100 - PUMP ASSY, FUEL
23100-39255

12R#..RN30,40

 1
23100-39256

12R#..RN30,40

 1
23100B - GASKET, FUEL PUMP
90923-05005

18R..RN46..ARL..IV3;12R#,18R..RN3#,40,41;18R..RN46..EUR,GEN,ME,SA

 2
23100B - GASKET, FUEL PUMP
90923-05005

18R..RN46..ARL..IV3;12R#,18R..RN3#,40,41;18R..RN46..EUR,GEN,ME,SA

 2
23100C - INSULATOR, FUEL PUMP
90923-06001

18R..RN46..ARL..IV3;12R#,18R..RN3#,40,41;18R..RN46..EUR,GEN,ME,SA

 1
Common parts
91611-40828
