RN40R-JRW3 (1978)
Toyota Hilux
Production
Aug 1978
-
Aug 1981
Engine
12R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7808- )

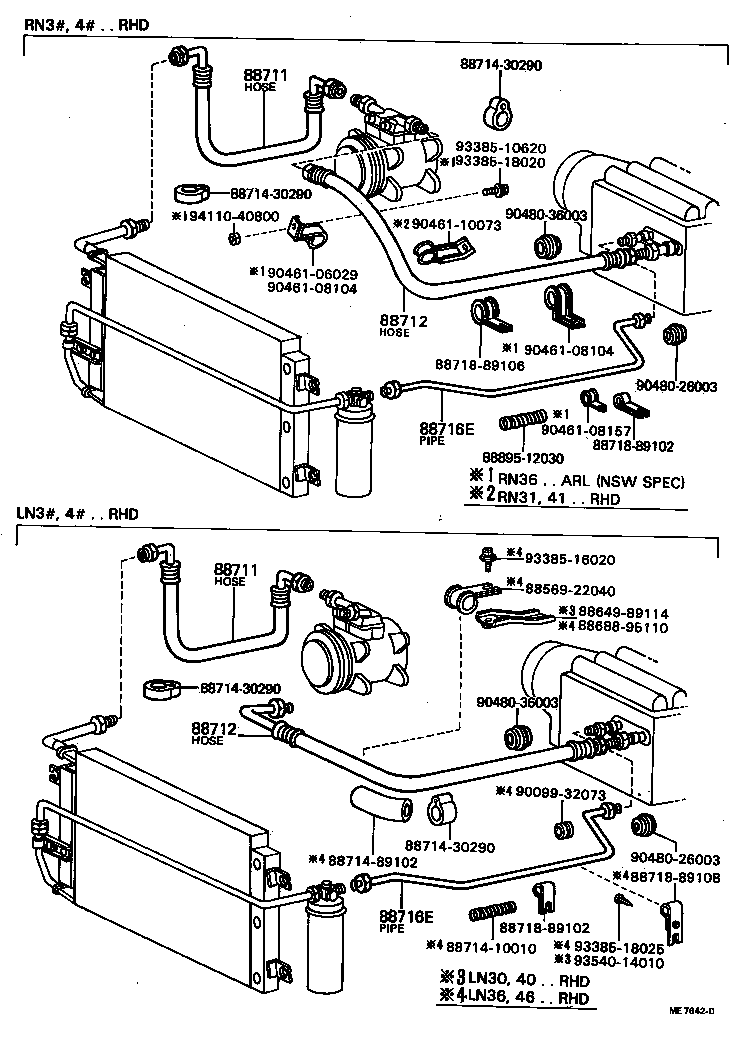

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88467-22040 | ||||
| 88718-89105 | ||||
| 88718-95111 | ||||
| 88893-89116 | ||||
| 88893-89117 | ||||
| 90099-32073 | ||||
| 90099-32107 | ||||
| 90099-32108 | ||||
| 90463-15419 | ||||
| 90467-07050 | ||||
| 93385-16016 | ||||
| 93385-16020 | ||||
| 93385-18014 | ||||
| 93385-18030 | ||||
| 93540-15012 | ||||
| 94110-40600 | ||||
| 94120-40800 | ||||
(7808- )RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-89106 |
RN30,40..RHD |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-89106 |
RN30,40..RHD |
1 | ||
| Common parts | ||||
| 88569-22040 | ||||
| 88649-89114 | ||||
| 88688-95110 | ||||
| 88714-10010 | ||||
| 88714-30290 | ||||
| 88714-89102 | ||||
| 88718-89102 | ||||
| 88718-89106 | ||||
| 88718-89108 | ||||
| 88895-12030 | ||||
| 90099-32073 | ||||
| 90461-06029 | ||||
| 90461-08104 | ||||
| 90461-08157 | ||||
| 90461-10073 | ||||
| 90480-26003 | ||||
| 90480-36003 | ||||
| 93385-10620 | ||||
| 93385-16020 | ||||
| 93385-18020 | ||||
| 93385-18025 | ||||
| 93540-14010 | ||||
| 94110-40800 | ||||
