RN40R-JRW3 (1978)

Toyota Hilux

Production Aug 1978 - Aug 1981
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )RHD

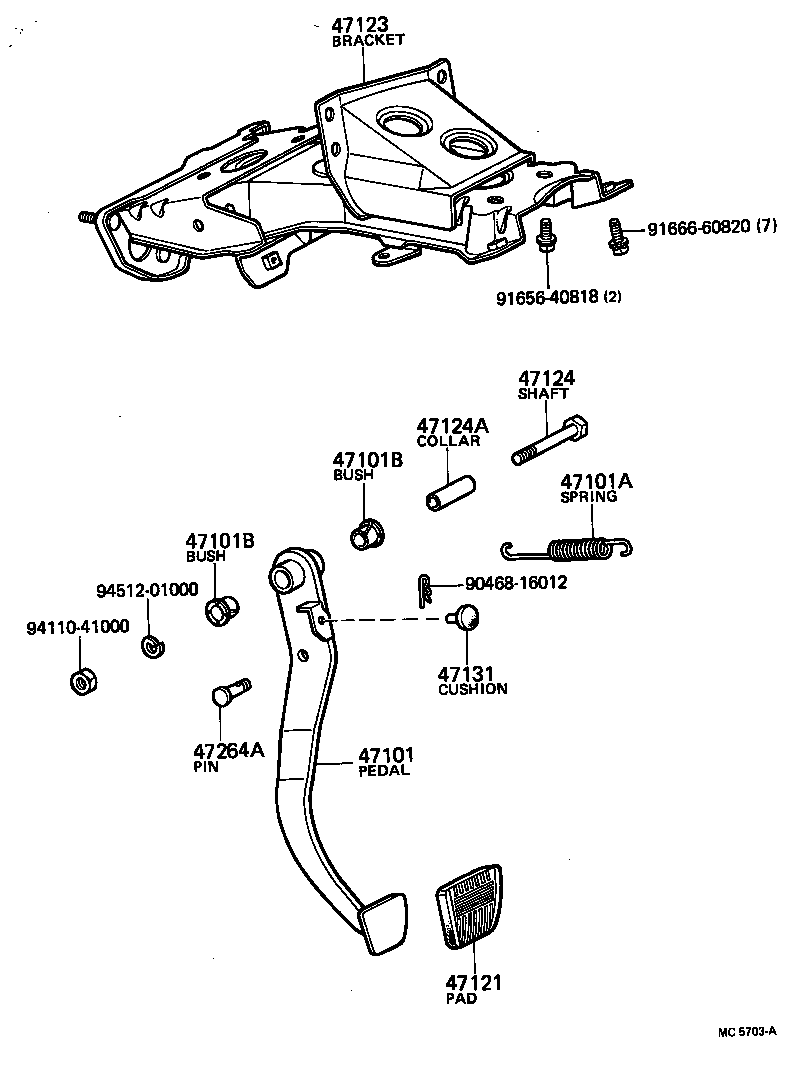

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47121 47123 47124 47124A 47131 47264A 9046816012 9165640818 9166660820 9411041000 9451201000
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-35150

LN3#,4#,RN3#,4#..RHD

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90506-14021

LN3#,4#,RN3#,4#

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13007

LN3#,4#,RN3#,4#

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13007

LN3#,4#,RN3#,4#

 2
47121 - PAD, BRAKE PEDAL
31321-14010

LN3#,4#,RN3#,4#

 1
47123 - BRACKET, BRAKE PEDAL
55106-89111

RN46..ARL..IV3;RN3#,40,41..RHD;RN46..RHD..(EUR,GEN)

 1
55106-89116

LN30,40..RHD

 1
55106-89115

RN46..ARL..IV3;RN3#,40,41..RHD;RN46..RHD..(EUR,GEN)

 1
55106-89115

LN3#,4#,RN3#,4#..RHD

 1
55106-89113

LN30,40..RHD

 1
47124 - SHAFT, BRAKE PEDAL
91121-51060

LN3#,4#,RN3#,4#..RHD

 1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
90387-10003

LN3#,4#,RN3#,4#..RHD

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06008

LN3#,4#,RN3#,4#

 1
47264A - PIN(FOR PUSH ROD)
90249-10048

LN3#,4#,RN3#,4#

 1
Common parts
90468-16012
91656-40818
91666-60820
94110-41000
94512-01000
