RN40R-JRW3 (1978)

Toyota Hilux

Production Aug 1978 - Aug 1981
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )12R..ARL,EUR,GEN

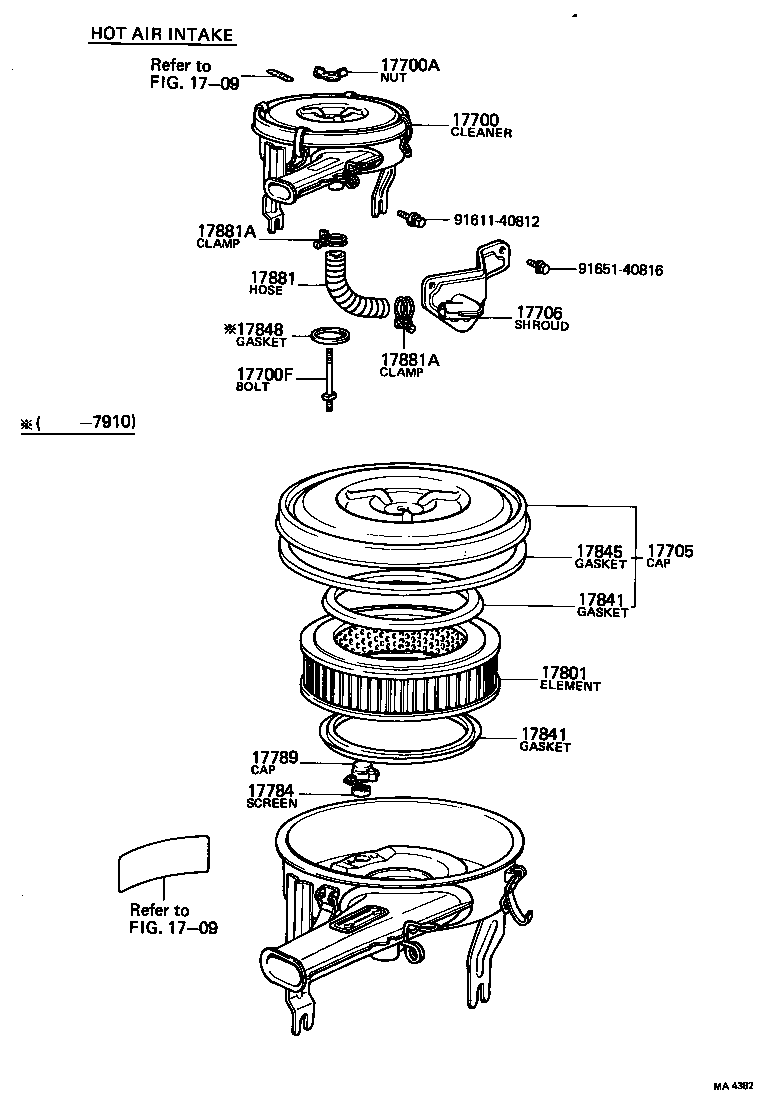

Click highlighted areas on diagram

diagram 1709 1709 17700 17700A 17700F 17705 17706 17784 17789 17801 17841 17841 17845 17848 17881 17881A 17881A 9161140812 9165140816
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-31380

12R..RN30,40..ARL,EUR,GEN

W/HOT AIR INTAKE

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-06003

18R..RN46..ARL..IV3;12R#,18R..RN3#,40,41;18R..RN46..EUR,GEN,ME,SA

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06106

12R#..RN30,40

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-31032

12R#..RN30,40..ARL,EUR,GEN,PHL

WHITE

 1
17706 - INLET SUB-ASSY, AIR CLEANER, NO.2
17895-31011

12R..RN30,40..ARL,EUR,GEN

W/HOT AIR INTAKE

 1
17784 - SCREEN, AIR CLEANER
17784-31010

12R#..RN30,40..ARL,EUR,GEN,PHL

 1
17789 - CAP, AIR CLEANER SCREEN
17789-31020

12R#..RN30,40..ARL,EUR,GEN,PHL

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-25010

12R#..RN30,40..ARL,EUR,GEN,PHL

PAPER ELEMENT TYPE

 1
17841 - GASKET, FILTER ELEMENT
17841-31020

12R#..RN30,40..ARL,EUR,GEN,PHL

 2
17841 - GASKET, FILTER ELEMENT
17841-31020

12R#..RN30,40..ARL,EUR,GEN,PHL

 2
17845 - GASKET, AIR CLEANER CAP
17845-31020

12R#..RN30,40..ARL,EUR,GEN,PHL

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
90430-63187

12R#..RN30,40

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-25012

12R..RN30,40..ARL,EUR,GEN

W/HOT AIR INTAKE

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10460

12R..RN30,40..ARL,EUR,GEN

W/HOT AIR INTAKE,ID=46

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10460

12R..RN30,40..ARL,EUR,GEN

W/HOT AIR INTAKE,ID=46

 2
Common parts
91611-40812
91651-40816
Linked diagrams
1709
