RN40R-JRSN3 (1978)

Toyota Hilux

Production Aug 1978 - Aug 1981
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )12R#

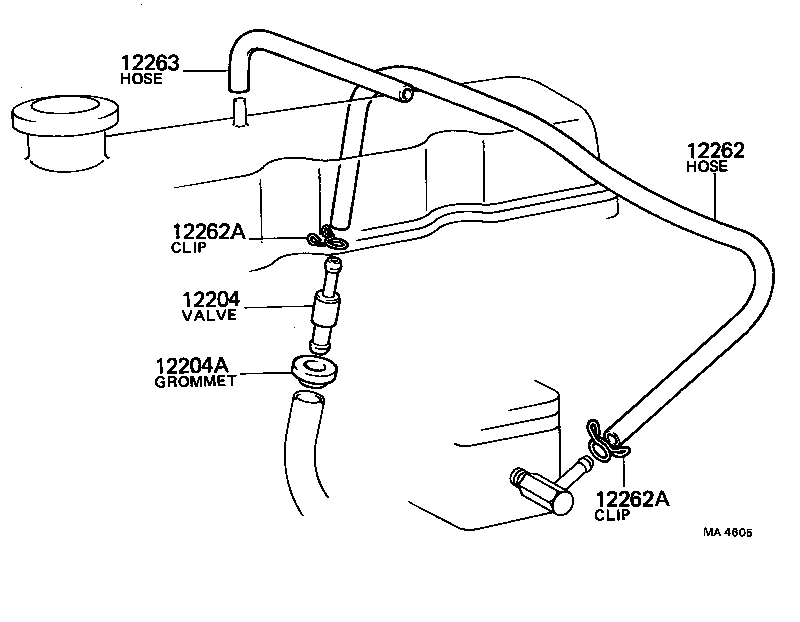

Click highlighted areas on diagram

diagram 12204 12204A 12262 12262A 12262A 12263
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-41010

12R#..RN30,40

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18180

18R..RN46..ARL..IV3;12R#,18R..RN3#,40,41;18R..RN46..EUR,GEN,ME,SA

 1
12262 - HOSE, VENTILATION, NO.2
90445-14013

12R#..RN30,40

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-13103

12R#..RN30,40

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-13103

12R#..RN30,40

 2
12263 - HOSE, VENTILATION, NO.3
90910-05132

12R..RN30,40..GEN,ME,SA

CYCLONE AIR CLEANER

 1
