RN40R-JRS3 (1978)
Toyota Hilux
(7808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44608-14040 |
LN40,RN30,40..LHD..EUR;LN30,40,RN30,40..GEN,PHL,SA JKC |
1 | ||
| 44606-35100 |
RN30,36,40;RN46..EUR,GEN;RN46..ARL..IV3;RN31,41..SR5..(ARL,SA) AISIN |
1 | ||
| 44606-35100 |
LN3#,4#,RN30,36,40,46;RN31,41..(SR5,STD)..(ARL,SA) AISIN |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-35120 |
RN30,40..RHD..(GEN,SA) 6 INCHES,FR DRUM,JKC |
1 | ||
| 44610-35100 |
RN30,40..RHD 7.5 INCHES,FR DRUM,AISIN |
1 | ||
| 44610-35300 |
LN30,40..RHD..(GEN,SA) 6 INCHES,FR DRUM,JKC |
1 | ||
| 44610-35101 |
RN30,40..RHD 7.5 INCHES,FR DRUM,AISIN |
1 | ||
| 44610-35320 |
LN30,40..RHD 7.5 INCHES,FR DRUM,AISIN |
1 | ||
| 44610K - BOOSTER KIT, BRAKE | ||||
| 04443-35070 |
RN30,40..RHD..(GEN,SA) 6 INCHES,JKC |
1 | ||
| 04443-35230 |
LN30,40..RHD..(GEN,SA) 6 INCHES,JKC |
1 | ||
| 04443-35060 |
RN30,40..RHD 7.5 INCHES,AISIN |
1 | ||
| 04443-35230 |
RN30,40..RHD..(GEN,SA) 6 INCHES,JKC |
1 | ||
| 44626 - RETAINER, BOOSTER ROD CUP | ||||
| 44626-60010 |
RN30,36,40;RN46..EUR,GEN;RN46..ARL..IV3;RN31,41..SR5..(ARL,SA) AISIN |
1 | ||
| 44626-60010 |
LN3#,4#,RN30,36,40,46;RN31,41..(SR5,STD)..(ARL,SA) AISIN |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44629-30090 |
RN30,36,40;RN46..EUR,GEN;RN46..ARL..IV3;RN31,41..SR5..(ARL,SA) AISIN |
1 | ||
| 44629-30090 |
LN3#,4#,RN30,36,40,46;RN31,41..(SR5,STD)..(ARL,SA) AISIN |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-14170 |
LN30,40..RHD;LN36,46,RN30,36,40,46 7.5 INCHES,AISIN |
1 | ||
| 44642-14130 |
LN30,40,RN30,40..RHD..(GEN,SA) 6 INCHES,JKC |
1 | ||
| 44643 - RETAINER, DIAPHRAGM | ||||
| 44643-60010 |
RN30,36,40;RN46..EUR,GEN;RN46..ARL..IV3;RN31,41..SR5..(ARL,SA) AISIN |
1 | ||
| 44643-60010 |
LN3#,4#,RN30,36,40,46;RN31,41..(SR5,STD)..(ARL,SA) AISIN |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44628-60010 |
LN3#,4#,RN30,36,40,46;RN31,41..(SR5,STD)..(ARL,SA) AISIN |
1 | ||
| 44645-22020 |
LN40,RN30,40..LHD..EUR;LN30,40,RN30,40..GEN,PHL,SA JKC |
1 | ||
| 44628-60010 |
RN30,36,40;RN46..EUR,GEN;RN46..ARL..IV3;RN31,41..SR5..(ARL,SA) AISIN |
1 | ||
| 44657A - RING, SNAP(FOR BOOSTER AIR VALVE STOPPER) | ||||
| 96150-01600 |
LN3#,4#,RN30,36,40,46;RN31,41..(SR5,STD)..(ARL,SA) AISIN |
1 | ||
| 96150-01600 |
RN30,36,40;RN46..EUR,GEN;RN46..ARL..IV3;RN31,41..SR5..(ARL,SA) AISIN |
1 | ||
| 44657B - WASHER, PLATE(FOR BOOSTER AIR VALVE STOPPER) | ||||
| 44645-20100 |
RN30,36,40;RN46..EUR,GEN;RN46..ARL..IV3;RN31,41..SR5..(ARL,SA) AISIN |
1 | ||
| 44645-20100 |
LN3#,4#,RN30,36,40,46;RN31,41..(SR5,STD)..(ARL,SA) AISIN |
1 | ||
| 44662 - RETAINER, REACTION, NO.1 | ||||
| 44662-35100 |
LN30,40,RN30,40..RHD 7.5 INCHES,FR DRUM,AISIN |
1 | ||
| 44662B - LEVER, REACTION | ||||
| 44661-35100 |
RN30,36,40;RN46..EUR,GEN;RN46..ARL..IV3;RN31,41..SR5..(ARL,SA) AISIN |
3 | ||
| 44661-35100 |
LN3#,4#,RN30,36,40,46;RN31,41..(SR5,STD)..(ARL,SA) AISIN |
3 | ||
| 44662C - PLATE, REACTION, NO.1 | ||||
| 44607-35100 |
LN30,40,RN30,40..RHD FR DRUM |
1 | ||
| 44669 - RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER | ||||
| 44669-60010 |
RN30,36,40;RN46..EUR,GEN;RN46..ARL..IV3;RN31,41..SR5..(ARL,SA) AISIN |
1 | ||
| 44669-60010 |
LN3#,4#,RN30,36,40,46;RN31,41..(SR5,STD)..(ARL,SA) AISIN |
1 | ||
| 44683 - CONNECTOR, BOOSTER BODY | ||||
| 44682-20150 |
LN30,40,RN30,40..RHD 7.5 INCHES,AISIN |
1 | ||
| 44683A - LOCK, CONNECTOR | ||||
| 44683-20100 |
LN3#,4#,RN30,36,40,46;RN31,41..(SR5,STD)..(ARL,SA) AISIN |
1 | ||
| 44683-20100 |
RN30,36,40;RN46..EUR,GEN;RN46..ARL..IV3;RN31,41..SR5..(ARL,SA) AISIN |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
RN30,40;RN31,41..SR5..(ARL,SA) AISIN |
1 | ||
| 90480-24438 |
RN30,40..4F..EUR;RN30,40..GEN,PHL,SA JKC |
1 | ||
| 90480-24439 |
RN30,40;RN31,41..(SR5,STD)..(ARL,SA) AISIN |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-22090 |
RN30,40..4F..EUR;RN30,31,40,41..GEN,PHL,SA JKC |
1 | ||
| 44730-20060 |
RN30,40 AISIN |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-20060 |
RN30,31,40,41..STD;RN31,41..LHD..(DLX,SR5) 7.5 INCHES |
1 | ||
| 44758-35030 |
RN30,40..GEN,PHL,SA 6 INCHES |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-35010 |
RN30,31,40,41 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-35010 |
RN30,31,40,41 |
1 | ||
| Common parts | ||||
| 90179-08136 | ||||
| 93319-14008 | ||||
(7808- )RN3#,4#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-22090 |
RN30,40..4F..EUR;RN30,31,40,41..GEN,PHL,SA JKC |
1 | ||
| 44730-20060 |
RN30,40 AISIN |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-22090 |
RN30,40..4F..EUR;RN30,31,40,41..GEN,PHL,SA JKC |
1 | ||
| 44730-20060 |
RN30,40 AISIN |
1 | ||
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 44773-35070 |
RN30,40..RHD |
1 | ||
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 44773-35070 |
RN30,40..RHD |
1 | ||
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 44773-35070 |
RN30,40..RHD |
1 | ||
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 44773-35070 |
RN30,40..RHD |
1 | ||
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 44773-35070 |
RN30,40..RHD |
1 | ||
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 44773-35070 |
RN30,40..RHD |
1 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
RN3#,40,41;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
RN3#,40,41;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
RN3#,40,41;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
RN3#,40,41;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
RN3#,40,41;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
RN3#,40,41;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA |
2 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51237 |
RN30,40 |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51237 |
RN30,40 |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51237 |
RN30,40 |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51237 |
RN30,40 |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51237 |
RN30,40 |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51237 |
RN30,40 |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-20060 |
RN30,31,40,41..STD;RN31,41..LHD..(DLX,SR5) 7.5 INCHES |
1 | ||
| 44758-35030 |
RN30,40..GEN,PHL,SA 6 INCHES |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-20060 |
RN30,31,40,41..STD;RN31,41..LHD..(DLX,SR5) 7.5 INCHES |
1 | ||
| 44758-35030 |
RN30,40..GEN,PHL,SA 6 INCHES |
1 | ||
| Common parts | ||||
| 90461-12052 | ||||
| 90461-12979 | ||||
| 90468-10008 | ||||
| 91616-40616 | ||||
| 91616-40820 | ||||
| 91651-40816 | ||||
(7909- )LN3#,4#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-22090 |
RN30,40..4F..EUR;RN30,31,40,41..GEN,PHL,SA JKC |
1 | ||
| 44730-20060 |
RN30,40 AISIN |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-22090 |
RN30,40..4F..EUR;RN30,31,40,41..GEN,PHL,SA JKC |
1 | ||
| 44730-20060 |
RN30,40 AISIN |
1 | ||
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 44773-35070 |
RN30,40..RHD |
1 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
RN3#,40,41;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA |
2 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09004 |
LN30,40 W/COOLER |
1 | ||
| 90405-09004 |
LN3#,4#..GEN W/COOLER |
1 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09004 |
LN30,40 W/COOLER |
1 | ||
| 90405-09004 |
LN3#,4#..GEN W/COOLER |
1 | ||
| Common parts | ||||
| 90179-08123 | ||||
| 91616-40616 | ||||
| 91616-40820 | ||||

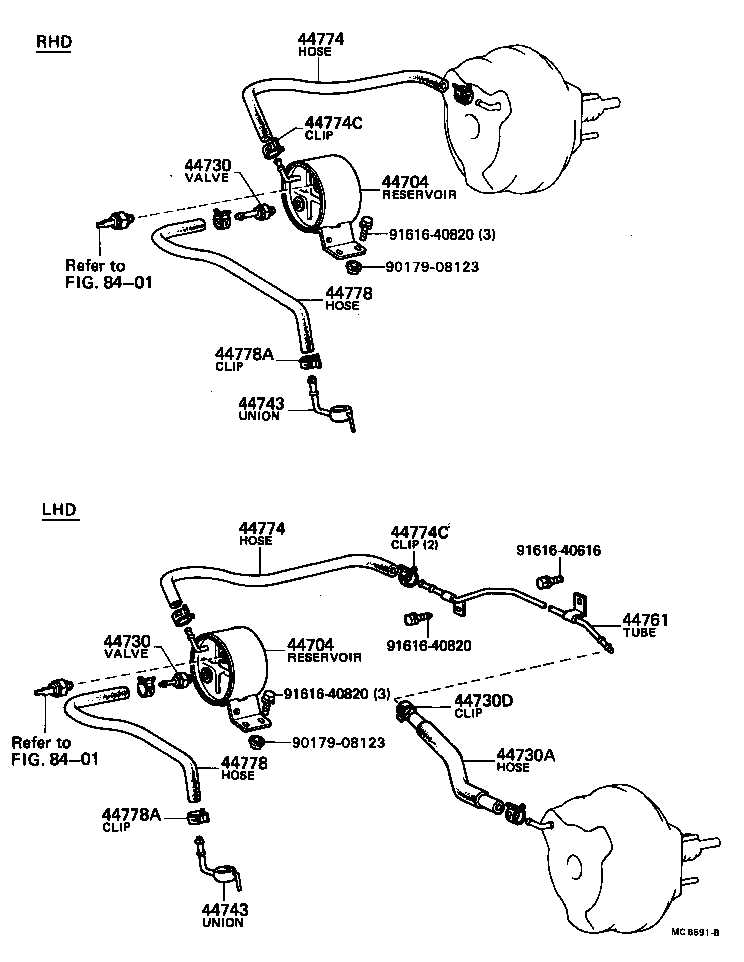

| Linked diagrams | ||||
| 8401 | ||||
