RN40R-JRQ (1978)

Toyota Hilux

Production Aug 1978 - Jul 1983
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7808-8307)12R..ARL

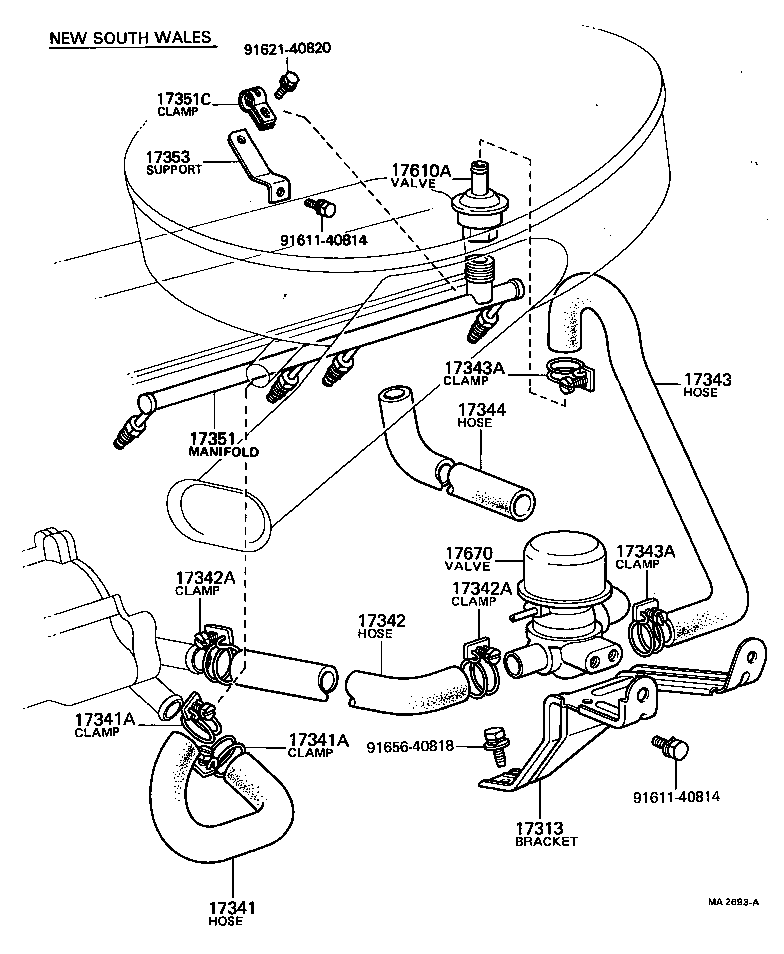

Click highlighted areas on diagram

diagram 17313 17341 17341A 17341A 17342 17342A 17342A 17343 17343A 17343A 17344 17351 17351C 17353 17610A 17670 9161140814 9161140814 9162140820 9165640818
Part # Description Qty Price
17313 - BRACKET, AIR BY-PASS VALVE
17313-31030

12R..RN30,40..ARL

NEW SOUTH WALES

 1
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-31050

12R..RN30,40..ARL

NEW SOUTH WALES

 1
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
96111-10330

12R..RN30,40..ARL

NEW SOUTH WALES

 2
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
96111-10330

12R..RN30,40..ARL

NEW SOUTH WALES

 2
17342 - HOSE, NO.2(FOR AIR INJECTION SYSTEM)
90910-05126

12R..RN30,40..ARL

NEW SOUTH WALES

 1
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
96111-10330

12R..RN30,40..ARL

NEW SOUTH WALES

 2
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
96111-10330

12R..RN30,40..ARL

NEW SOUTH WALES

 2
17343 - HOSE, NO.3(FOR AIR INJECTION SYSTEM)
17343-31021

12R..RN30,40..ARL

NEW SOUTH WALES

 1
17343A - CLAMP OR CLIP, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3
96112-10270

12R..RN30,40..ARL

NEW SOUTH WALES

 2
17343A - CLAMP OR CLIP, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3
96112-10270

12R..RN30,40..ARL

NEW SOUTH WALES

 2
17344 - HOSE, NO.4(FOR AIR INJECTION SYSTEM)
90910-05125

12R..RN30,40..ARL

NEW SOUTH WALES

 1
17351 - MANIFOLD, AIR INJECTION
17351-31020

12R..RN30,40..ARL

NEW SOUTH WALES

 1
17351C - CLAMP(FOR AIR INJECTION MANIFOLD)
90461-16013

12R..RN30,40..ARL

NEW SOUTH WALES

 1
17353 - SUPPORT, AIR INJECTION MANIFOLD
17353-31010

12R..RN30,40..ARL

NEW SOUTH WALES

 1
17610A - VALVE, CHECK(FOR AIR INJECTION SYSTEM)
90917-10045

12R..RN30,40..ARL

NEW SOUTH WALES

 1
17670 - VALVE ASSY, AIR BY-PASS
17670-31020

12R..RN30,40..ARL

NEW SOUTH WALES

 1
Common parts
91611-40814
91621-40820
91656-40818
