RN40L-KRS (1978)
Toyota Hilux
(7808- )12R#

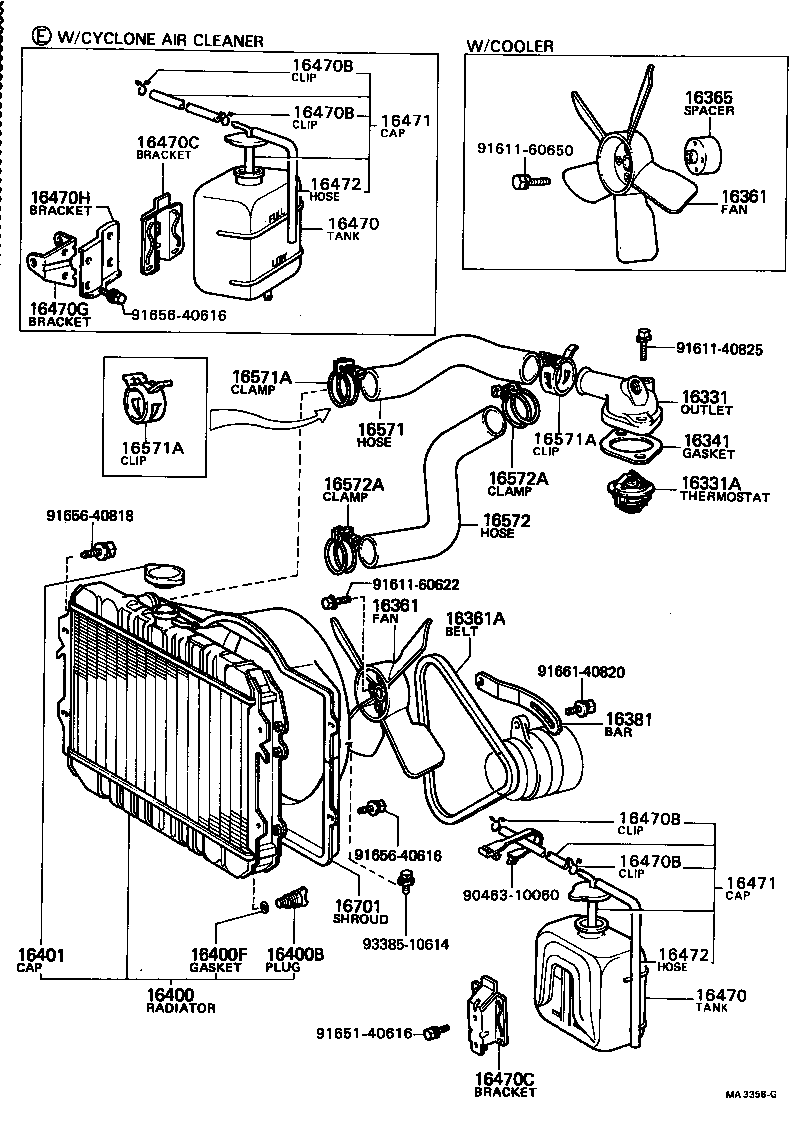

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16331 - OUTLET, WATER | ||||
| 16331-31092 |
12R..RN30,40..ARL,GEN,ME,SA |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03034 |
12R#..RN30,40 *WAX 82-95,FUJI-THOMSON |
1 | ||
| 90916-03037 |
12R#..RN30,40 *WAX 82-95,KUZEH |
1 | ||
| 90916-03042 |
L..LN30,40 *WAX 82-95,FUJI-THOMSON |
1 | ||
| 90916-03042 |
L..LN46..TW;L..LN46..T1..IV3;L..LN46..T1..GEN..CBU;L..LN3#,40..ARL,GEN,SA *WAX 82-95,FUJI-THOMSON |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-38010 |
L..LN30,40 |
1 | ||
| 16341-38010 |
18R..RN46..ARL..IV3;12R#,18R..RN3#,40,41;18R..RN46..EUR,GEN,ME,SA |
1 | ||
| 16341-38010 |
18R..RN46..EUR,GEN;18R..RN46..ARL..IV3;12R#,18R..RN3#,40,41 |
1 | ||
| 16341-41010 |
L..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN) |
1 | ||
| 16361 - FAN | ||||
| 16361-31021 |
12R#..RN30,40 4 BLADES |
1 | ||
| 16361-31050 |
12R#..RN30,40..ARL,GEN,PHL,SA W/COOLER,5 BLADES |
1 | ||
| 16361 - FAN | ||||
| 16361-31021 |
12R#..RN30,40 4 BLADES |
1 | ||
| 16361-31050 |
12R#..RN30,40..ARL,GEN,PHL,SA W/COOLER,5 BLADES |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99332-00985 |
L..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN) L=985 |
1 | ||
| 99332-11000 |
L..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN) L=1000 |
1 | ||
| 99332-10985 |
L..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN) L=985 |
1 | ||
| 99332-00890 |
12R#..RN30,40 L=890 |
1 | ||
| 16365 - SPACER, FAN | ||||
| 16365-44030 |
12R..RN30,40..ARL,GEN,SA W/COOLER |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-31012 |
12R#..RN30,40 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-31230 |
12R#..RN30,40 |
1 | ||
| 16400-54080 |
L..LN30,40 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90910-09054 |
L..LN3#,4# |
1 | ||
| 90910-09054 |
12R#,18R..RN3#,4# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96710-01007 |
L..LN3#,4# |
1 | ||
| 96710-01007 |
12R#,18R..RN3#,4# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-36010 |
12R#,18R..RN3#,4# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-89101 |
12R#..RN30,40..GEN,PHL,SA CYCLONE AIR CLEANER |
1 | ||
| 16470-89103 |
12R#,18R..RN30,31,40,41..ARL,EUR,GEN,PHL PAPER ELEMENT AIR CLEANER |
1 | ||
| 16470-89105 |
L..LN3#,4#..EUR,GEN PAPER ELEMENT AIR CLEANER |
1 | ||
| 16470-34120 |
12R#,18R..RN3#,4#..ARL,EUR,GEN,PHL PAPER ELEMENT AIR CLEANER |
1 | ||
| 16470-89104 |
12R#,18R..RN30,31,40,41..GEN,PHL,SA CYCLONE AIR CLEANER |
1 | ||
| 16470-89105 |
L..LN30,40..LHD..GEN PAPER ELEMENT AIR CLEANER |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-89101 |
12R#..RN30,40..GEN,PHL,SA CYCLONE AIR CLEANER |
1 | ||
| 16470-89103 |
12R#,18R..RN30,31,40,41..ARL,EUR,GEN,PHL PAPER ELEMENT AIR CLEANER |
1 | ||
| 16470-89105 |
L..LN3#,4#..EUR,GEN PAPER ELEMENT AIR CLEANER |
1 | ||
| 16470-34120 |
12R#,18R..RN3#,4#..ARL,EUR,GEN,PHL PAPER ELEMENT AIR CLEANER |
1 | ||
| 16470-89104 |
12R#,18R..RN30,31,40,41..GEN,PHL,SA CYCLONE AIR CLEANER |
1 | ||
| 16470-89105 |
L..LN30,40..LHD..GEN PAPER ELEMENT AIR CLEANER |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
L..LN3#,4# |
2 | ||
| 90467-11085 |
12R#,18R..RN3#,4# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
L..LN3#,4# |
2 | ||
| 90467-11085 |
12R#,18R..RN3#,4# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
L..LN3#,4# |
2 | ||
| 90467-11085 |
12R#,18R..RN3#,4# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
L..LN3#,4# |
2 | ||
| 90467-11085 |
12R#,18R..RN3#,4# |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16402-31010 |
12R#,18R..RN30,31,40,41..ARL,EUR,GEN,PHL PAPER ELEMENT AIR CLEANER |
1 | ||
| 16402-31010 |
L..LN30,40..EUR,GEN PAPER ELEMENT AIR CLEANER |
1 | ||
| 16402-89101 |
12R#,18R..RN30,31,40,41..GEN,PHL,SA CYCLONE AIR CLEANER |
1 | ||
| 16402-31010 |
L..LN30,40..LHD..GEN PAPER ELEMENT AIR CLEANER |
1 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16402-31010 |
12R#,18R..RN30,31,40,41..ARL,EUR,GEN,PHL PAPER ELEMENT AIR CLEANER |
1 | ||
| 16402-31010 |
L..LN30,40..EUR,GEN PAPER ELEMENT AIR CLEANER |
1 | ||
| 16402-89101 |
12R#,18R..RN30,31,40,41..GEN,PHL,SA CYCLONE AIR CLEANER |
1 | ||
| 16402-31010 |
L..LN30,40..LHD..GEN PAPER ELEMENT AIR CLEANER |
1 | ||
| 16470G - BRACKET, RESERVE TANK MOUNTING, NO.1 | ||||
| 53261-89101 |
12R#,18R..RN30,31,40,41..GEN,PHL,SA CYCLONE AIR CLEANER |
1 | ||
| 16470H - BRACKET, RESERVE TANK MOUNTING, NO.2 | ||||
| 53262-89102 |
12R#,18R..RN30,31,40,41..GEN,PHL,SA CYCLONE AIR CLEANER |
1 | ||
| 53262-89101 |
12R#..RN30,40..GEN,PHL,SA CYCLONE AIR CLEANER |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-89101 |
12R#..RN30,40..GEN,PHL,SA CYCLONE AIR CLEANER |
1 | ||
| 16471-34120 |
12R#,18R..RN3#,4#..ARL,EUR,GEN,PHL PAPER ELEMENT AIR CLEANER |
1 | ||
| 16471-89104 |
12R#,18R..RN30,31,40,41..GEN,PHL,SA CYCLONE AIR CLEANER |
1 | ||
| 16405-89103 |
L..LN3#,4#..EUR,GEN PAPER ELEMENT AIR CLEANER |
1 | ||
| 16471-89104 |
12R,18R..RN30,31,40,41..GEN,ME,SA CYCLONE AIR CLEANER |
1 | ||
| 16405-89103 |
L..LN30,40..LHD..GEN PAPER ELEMENT AIR CLEANER |
1 | ||
| 16471-89103 |
12R#,18R..RN30,31,40,41..ARL,EUR,GEN,PHL PAPER ELEMENT AIR CLEANER |
1 | ||
| 16405-89105 |
12R#,18R..RN30,31,40,41..ARL,EUR,GEN,PHL PAPER ELEMENT AIR CLEANER |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-89101 |
12R#..RN30,40..GEN,PHL,SA CYCLONE AIR CLEANER |
1 | ||
| 16471-34120 |
12R#,18R..RN3#,4#..ARL,EUR,GEN,PHL PAPER ELEMENT AIR CLEANER |
1 | ||
| 16471-89104 |
12R#,18R..RN30,31,40,41..GEN,PHL,SA CYCLONE AIR CLEANER |
1 | ||
| 16405-89103 |
L..LN3#,4#..EUR,GEN PAPER ELEMENT AIR CLEANER |
1 | ||
| 16471-89104 |
12R,18R..RN30,31,40,41..GEN,ME,SA CYCLONE AIR CLEANER |
1 | ||
| 16405-89103 |
L..LN30,40..LHD..GEN PAPER ELEMENT AIR CLEANER |
1 | ||
| 16471-89103 |
12R#,18R..RN30,31,40,41..ARL,EUR,GEN,PHL PAPER ELEMENT AIR CLEANER |
1 | ||
| 16405-89105 |
12R#,18R..RN30,31,40,41..ARL,EUR,GEN,PHL PAPER ELEMENT AIR CLEANER |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-89102 |
12R#,18R..RN3#,4# |
1 | ||
| 85338-89102 |
L..LN3#,4# |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-89102 |
12R#,18R..RN3#,4# |
1 | ||
| 85338-89102 |
L..LN3#,4# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16572-31091 |
12R#..RN30,40 |
1 | ||
| 16571-54050 |
L..LN3#,4# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
L..LN30,40 ENGINE SIDE,ID=37 |
1 | ||
| 96111-10440 |
18R..RN46..EUR,GEN;18R..RN46..ARL..IV3;12R#,18R..RN3#,40,41 RADIATOR SIDE,ID=44 |
1 | ||
| 96111-10440 |
L..LN30,40 RADIATOR SIDE,ID=44 |
1 | ||
| 90467-37001 |
L..LN30,40 ENGINE SIDE,ID=37 |
1 | ||
| 96111-10440 |
L..LN30,40 RADIATOR SIDE,ID=44 |
1 | ||
| 90467-37001 |
18R..RN46..EUR,GEN;18R..RN46..ARL..IV3;12R#,18R..RN3#,40,41 ENGINE SIDE,ID=37 |
1 | ||
| 90467-37001 |
12R#..RN30,40;18R..RN46..ARL..CBU ID=37 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
L..LN30,40 ENGINE SIDE,ID=37 |
1 | ||
| 96111-10440 |
18R..RN46..EUR,GEN;18R..RN46..ARL..IV3;12R#,18R..RN3#,40,41 RADIATOR SIDE,ID=44 |
1 | ||
| 96111-10440 |
L..LN30,40 RADIATOR SIDE,ID=44 |
1 | ||
| 90467-37001 |
L..LN30,40 ENGINE SIDE,ID=37 |
1 | ||
| 96111-10440 |
L..LN30,40 RADIATOR SIDE,ID=44 |
1 | ||
| 90467-37001 |
18R..RN46..EUR,GEN;18R..RN46..ARL..IV3;12R#,18R..RN3#,40,41 ENGINE SIDE,ID=37 |
1 | ||
| 90467-37001 |
12R#..RN30,40;18R..RN46..ARL..CBU ID=37 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
L..LN30,40 ENGINE SIDE,ID=37 |
1 | ||
| 96111-10440 |
18R..RN46..EUR,GEN;18R..RN46..ARL..IV3;12R#,18R..RN3#,40,41 RADIATOR SIDE,ID=44 |
1 | ||
| 96111-10440 |
L..LN30,40 RADIATOR SIDE,ID=44 |
1 | ||
| 90467-37001 |
L..LN30,40 ENGINE SIDE,ID=37 |
1 | ||
| 96111-10440 |
L..LN30,40 RADIATOR SIDE,ID=44 |
1 | ||
| 90467-37001 |
18R..RN46..EUR,GEN;18R..RN46..ARL..IV3;12R#,18R..RN3#,40,41 ENGINE SIDE,ID=37 |
1 | ||
| 90467-37001 |
12R#..RN30,40;18R..RN46..ARL..CBU ID=37 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16571-31024 |
12R#..RN30,40 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10460 |
12R#..RN30,40 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10460 |
12R#..RN30,40 |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-89104 |
12R#..RN30,40 |
1 | ||
| 16071-89101 |
12R..RN30,40 W/COOLER |
1 | ||
| Common parts | ||||
| 90463-10060 | ||||
| 91611-40825 | ||||
| 91611-60622 | ||||
| 91611-60650 | ||||
| 91651-40616 | ||||
| 91656-40616 | ||||
| 91656-40818 | ||||
| 91661-40820 | ||||
| 93385-10614 | ||||
(7909- )L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16331 - OUTLET, WATER | ||||
| 16331-31092 |
12R..RN30,40..ARL,GEN,ME,SA |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-31092 |
12R..RN30,40..ARL,GEN,ME,SA |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03034 |
12R#..RN30,40 *WAX 82-95,FUJI-THOMSON |
1 | ||
| 90916-03037 |
12R#..RN30,40 *WAX 82-95,KUZEH |
1 | ||
| 90916-03042 |
L..LN30,40 *WAX 82-95,FUJI-THOMSON |
1 | ||
| 90916-03042 |
L..LN46..TW;L..LN46..T1..IV3;L..LN46..T1..GEN..CBU;L..LN3#,40..ARL,GEN,SA *WAX 82-95,FUJI-THOMSON |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-54010 |
L..LN30,40 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-54010 |
L..LN30,40 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-38010 |
L..LN30,40 |
1 | ||
| 16341-38010 |
18R..RN46..ARL..IV3;12R#,18R..RN3#,40,41;18R..RN46..EUR,GEN,ME,SA |
1 | ||
| 16341-38010 |
18R..RN46..EUR,GEN;18R..RN46..ARL..IV3;12R#,18R..RN3#,40,41 |
1 | ||
| 16341-41010 |
L..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN) |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-38010 |
L..LN30,40 |
1 | ||
| 16341-38010 |
18R..RN46..ARL..IV3;12R#,18R..RN3#,40,41;18R..RN46..EUR,GEN,ME,SA |
1 | ||
| 16341-38010 |
18R..RN46..EUR,GEN;18R..RN46..ARL..IV3;12R#,18R..RN3#,40,41 |
1 | ||
| 16341-41010 |
L..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN) |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-54010 |
L..LN30,40 |
1 | ||
| 16361 - FAN | ||||
| 16361-31021 |
12R#..RN30,40 4 BLADES |
1 | ||
| 16361-31050 |
12R#..RN30,40..ARL,GEN,PHL,SA W/COOLER,5 BLADES |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99332-00985 |
L..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN) L=985 |
1 | ||
| 99332-11000 |
L..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN) L=1000 |
1 | ||
| 99332-10985 |
L..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN) L=985 |
1 | ||
| 99332-00890 |
12R#..RN30,40 L=890 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-31012 |
12R#..RN30,40 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-31230 |
12R#..RN30,40 |
1 | ||
| 16400-54080 |
L..LN30,40 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90910-09054 |
L..LN3#,4# |
1 | ||
| 90910-09054 |
12R#,18R..RN3#,4# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96710-01007 |
L..LN3#,4# |
1 | ||
| 96710-01007 |
12R#,18R..RN3#,4# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-36010 |
12R#,18R..RN3#,4# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-89101 |
12R#..RN30,40..GEN,PHL,SA CYCLONE AIR CLEANER |
1 | ||
| 16470-89103 |
12R#,18R..RN30,31,40,41..ARL,EUR,GEN,PHL PAPER ELEMENT AIR CLEANER |
1 | ||
| 16470-89105 |
L..LN3#,4#..EUR,GEN PAPER ELEMENT AIR CLEANER |
1 | ||
| 16470-34120 |
12R#,18R..RN3#,4#..ARL,EUR,GEN,PHL PAPER ELEMENT AIR CLEANER |
1 | ||
| 16470-89104 |
12R#,18R..RN30,31,40,41..GEN,PHL,SA CYCLONE AIR CLEANER |
1 | ||
| 16470-89105 |
L..LN30,40..LHD..GEN PAPER ELEMENT AIR CLEANER |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12030 |
L..LN3#,4#..EUR,GEN PAPER ELEMENT AIR CLEANER |
1 | ||
| 90445-12730 |
L..LN3#,4#..EUR,GEN *H,L=410,PAPER ELEMENT AIR CLEANER |
1 | ||
| 90445-12730 |
L..LN30,40..LHD..GEN *H,L=410,PAPER ELEMENT AIR CLEANER |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
L..LN3#,4# |
2 | ||
| 90467-11085 |
12R#,18R..RN3#,4# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
L..LN3#,4# |
2 | ||
| 90467-11085 |
12R#,18R..RN3#,4# |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16402-31010 |
12R#,18R..RN30,31,40,41..ARL,EUR,GEN,PHL PAPER ELEMENT AIR CLEANER |
1 | ||
| 16402-31010 |
L..LN30,40..EUR,GEN PAPER ELEMENT AIR CLEANER |
1 | ||
| 16402-89101 |
12R#,18R..RN30,31,40,41..GEN,PHL,SA CYCLONE AIR CLEANER |
1 | ||
| 16402-31010 |
L..LN30,40..LHD..GEN PAPER ELEMENT AIR CLEANER |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-89101 |
12R#..RN30,40..GEN,PHL,SA CYCLONE AIR CLEANER |
1 | ||
| 16471-34120 |
12R#,18R..RN3#,4#..ARL,EUR,GEN,PHL PAPER ELEMENT AIR CLEANER |
1 | ||
| 16471-89104 |
12R#,18R..RN30,31,40,41..GEN,PHL,SA CYCLONE AIR CLEANER |
1 | ||
| 16405-89103 |
L..LN3#,4#..EUR,GEN PAPER ELEMENT AIR CLEANER |
1 | ||
| 16471-89104 |
12R,18R..RN30,31,40,41..GEN,ME,SA CYCLONE AIR CLEANER |
1 | ||
| 16405-89103 |
L..LN30,40..LHD..GEN PAPER ELEMENT AIR CLEANER |
1 | ||
| 16471-89103 |
12R#,18R..RN30,31,40,41..ARL,EUR,GEN,PHL PAPER ELEMENT AIR CLEANER |
1 | ||
| 16405-89105 |
12R#,18R..RN30,31,40,41..ARL,EUR,GEN,PHL PAPER ELEMENT AIR CLEANER |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-89102 |
12R#,18R..RN3#,4# |
1 | ||
| 85338-89102 |
L..LN3#,4# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16572-31091 |
12R#..RN30,40 |
1 | ||
| 16571-54050 |
L..LN3#,4# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
L..LN30,40 ENGINE SIDE,ID=37 |
1 | ||
| 96111-10440 |
18R..RN46..EUR,GEN;18R..RN46..ARL..IV3;12R#,18R..RN3#,40,41 RADIATOR SIDE,ID=44 |
1 | ||
| 96111-10440 |
L..LN30,40 RADIATOR SIDE,ID=44 |
1 | ||
| 90467-37001 |
L..LN30,40 ENGINE SIDE,ID=37 |
1 | ||
| 96111-10440 |
L..LN30,40 RADIATOR SIDE,ID=44 |
1 | ||
| 90467-37001 |
18R..RN46..EUR,GEN;18R..RN46..ARL..IV3;12R#,18R..RN3#,40,41 ENGINE SIDE,ID=37 |
1 | ||
| 90467-37001 |
12R#..RN30,40;18R..RN46..ARL..CBU ID=37 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
L..LN30,40 ENGINE SIDE,ID=37 |
1 | ||
| 96111-10440 |
18R..RN46..EUR,GEN;18R..RN46..ARL..IV3;12R#,18R..RN3#,40,41 RADIATOR SIDE,ID=44 |
1 | ||
| 96111-10440 |
L..LN30,40 RADIATOR SIDE,ID=44 |
1 | ||
| 90467-37001 |
L..LN30,40 ENGINE SIDE,ID=37 |
1 | ||
| 96111-10440 |
L..LN30,40 RADIATOR SIDE,ID=44 |
1 | ||
| 90467-37001 |
18R..RN46..EUR,GEN;18R..RN46..ARL..IV3;12R#,18R..RN3#,40,41 ENGINE SIDE,ID=37 |
1 | ||
| 90467-37001 |
12R#..RN30,40;18R..RN46..ARL..CBU ID=37 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
L..LN30,40 ENGINE SIDE,ID=37 |
1 | ||
| 96111-10440 |
18R..RN46..EUR,GEN;18R..RN46..ARL..IV3;12R#,18R..RN3#,40,41 RADIATOR SIDE,ID=44 |
1 | ||
| 96111-10440 |
L..LN30,40 RADIATOR SIDE,ID=44 |
1 | ||
| 90467-37001 |
L..LN30,40 ENGINE SIDE,ID=37 |
1 | ||
| 96111-10440 |
L..LN30,40 RADIATOR SIDE,ID=44 |
1 | ||
| 90467-37001 |
18R..RN46..EUR,GEN;18R..RN46..ARL..IV3;12R#,18R..RN3#,40,41 ENGINE SIDE,ID=37 |
1 | ||
| 90467-37001 |
12R#..RN30,40;18R..RN46..ARL..CBU ID=37 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16571-31024 |
12R#..RN30,40 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10460 |
12R#..RN30,40 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10460 |
12R#..RN30,40 |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-89104 |
12R#..RN30,40 |
1 | ||
| 16071-89101 |
12R..RN30,40 W/COOLER |
1 | ||
| Common parts | ||||
| 88898-89113 | ||||
| 90099-05151 | ||||
| 90119-08108 | ||||
| 90179-06070 | ||||
| 90463-10060 | ||||
| 91611-60820 | ||||
| 91611-60840 | ||||
| 91651-40616 | ||||
| 91655-40618 | ||||
| 91656-40616 | ||||
| 91656-40818 | ||||
| 91659-41222 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
