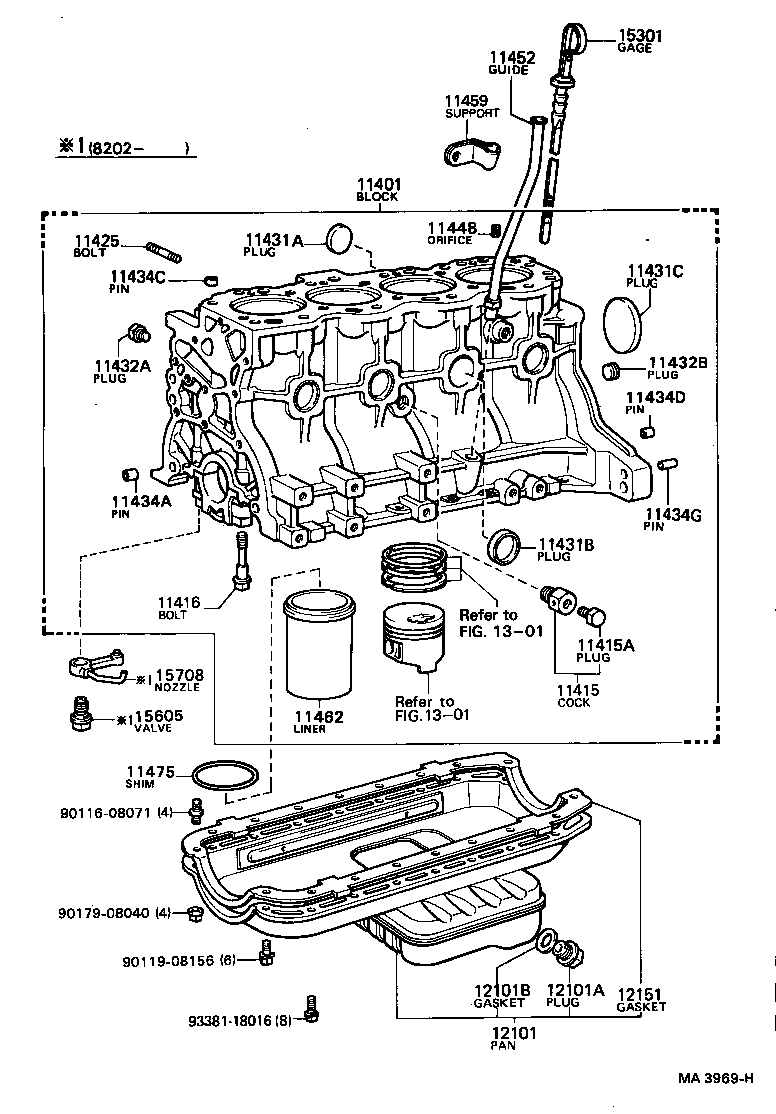

RN40L-KRP (1979)
Toyota Hilux
(7909-8304)L..LN30,40
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-59106 |
L..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN) |
1 | ||
| 11401-59067 |
L..LN3#,4# |
1 | ||
| 11401-59185 |
L..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN) |
1 | ||
| 11401-59066 |
L..LN3#,4# |
1 | ||
| 11401-59107 |
L..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN) |
1 | ||
| 11401-39127 |
12R..RN30,40 |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 96431-03833 |
L..LN30,40 |
1 | ||
| 96431-03833 |
18R..RN46..EUR,GEN;18R..RN46..ARL..IV3;12R#,18R..RN3#,40,41 |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 96431-23814 |
12R#,18R..RN3#,4# |
1 | ||
| 96431-23814 |
L..LN3#,4# |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02064 |
12R#..RN30,40 *12-1.25PX62-21 |
6 | ||
| 11425 - BOLT, STUD(FOR OIL FILTER) | ||||
| 90116-08053 |
L..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN) L=36,S=11&14 |
2 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-45000 |
12R#..RN30,40 OD=50 |
3 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-43000 |
12R#..RN30,40 OD=30 |
1 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-51025 |
L..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN) |
1 | ||
| 90345-51025 |
12R#..RN30,40 |
1 | ||
| 11432B - PLUG, W/HEAD TAPER SCREW, NO.2 | ||||
| 90344-53011 |
L..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN) |
1 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-10192 |
12R#..RN30,40 L=22,OD=10,L=22,OD=10 |
2 | ||
| 90253-11001 |
L..LN3#,4# L=11,OD=11,L=11,OD=11 |
4 | ||
| 11448 - ORIFICE, CYLINDER BLOCK OIL | ||||
| 11448-54010 |
L..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN) |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-31020 |
12R#..RN30,40 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-39245 |
12R#..RN30,40 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-18089 |
12R#,18R..RN3#,4# |
1 | ||
| 90341-18089 |
L..LN3#,4# |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-18244 |
L..LN3#,4# |
1 | ||
| 90430-18244 |
12R#,18R..RN3#,4# |
1 | ||
| 12151 - GASKET, OIL PAN | ||||
| 12151-30010 |
12R#..RN30,40 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-31050 |
12R#..RN30,40 |
1 | ||
| Common parts | ||||
| 90116-08071 | ||||
| 90119-08156 | ||||
| 90179-08040 | ||||
| 93381-18016 | ||||
| Linked diagrams | ||||
| 1301 | ||||
(8304- )L..LN30,40
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-59106 |
L..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN) |
1 | ||
| 11401-59067 |
L..LN3#,4# |
1 | ||
| 11401-59185 |
L..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN) |
1 | ||
| 11401-59066 |
L..LN3#,4# |
1 | ||
| 11401-59107 |
L..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN) |
1 | ||
| 11401-39127 |
12R..RN30,40 |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 96431-03833 |
L..LN30,40 |
1 | ||
| 96431-03833 |
18R..RN46..EUR,GEN;18R..RN46..ARL..IV3;12R#,18R..RN3#,40,41 |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 96431-23814 |
12R#,18R..RN3#,4# |
1 | ||
| 96431-23814 |
L..LN3#,4# |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02064 |
12R#..RN30,40 *12-1.25PX62-21 |
6 | ||
| 11425 - BOLT, STUD(FOR OIL FILTER) | ||||
| 90116-08053 |
L..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN) L=36,S=11&14 |
2 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-45000 |
12R#..RN30,40 OD=50 |
3 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-43000 |
12R#..RN30,40 OD=30 |
1 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-51025 |
L..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN) |
1 | ||
| 90345-51025 |
12R#..RN30,40 |
1 | ||
| 11432B - PLUG, W/HEAD TAPER SCREW, NO.2 | ||||
| 90344-53011 |
L..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN) |
1 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-10192 |
12R#..RN30,40 L=22,OD=10,L=22,OD=10 |
2 | ||
| 90253-11001 |
L..LN3#,4# L=11,OD=11,L=11,OD=11 |
4 | ||
| 11448 - ORIFICE, CYLINDER BLOCK OIL | ||||
| 11448-54010 |
L..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN) |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-31020 |
12R#..RN30,40 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-39245 |
12R#..RN30,40 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-18089 |
12R#,18R..RN3#,4# |
1 | ||
| 90341-18089 |
L..LN3#,4# |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-18244 |
L..LN3#,4# |
1 | ||
| 90430-18244 |
12R#,18R..RN3#,4# |
1 | ||
| 12151 - GASKET, OIL PAN | ||||
| 12151-30010 |
12R#..RN30,40 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-31050 |
12R#..RN30,40 |
1 | ||
| Common parts | ||||
| 90116-08071 | ||||
| 90119-08156 | ||||
| 90119-08247 | ||||
| 90179-08040 | ||||
| Linked diagrams | ||||
| 1301 | ||||
