RN40L-KR (1978)

Toyota Hilux

Production Aug 1978 - Jul 1983
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7808-7904)RN30,31,40,41 ; (7904- )LN30,40,RN30,31,40,41..EUR,GEN,ME,PHL,SA

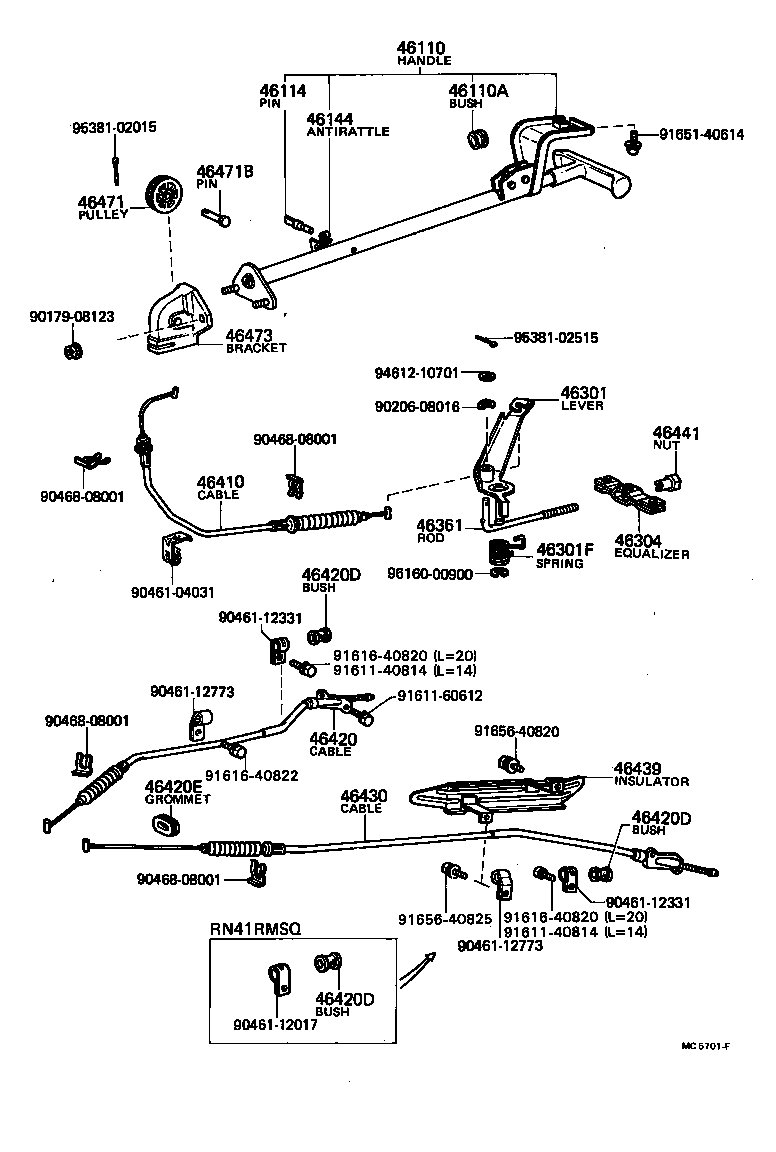

Click highlighted areas on diagram

diagram 46110 46110A 46114 46144 46301 46301F 46304 46361 46410 46420 46420D 46420D 46420D 46420E 46430 46439 46441 46471 46471B 46473 9017908123 9020608016 9046104031 9046112017 9046112331 9046112331 9046112773 9046112773 9046808001 9046808001 9046808001 9046808001 9161140814 9161140814 9161160612 9161640820 9161640820 9161640822 9165140614 9165640820 9165640825 9461210701 9538102015 9538102515 9616000900
Part # Description Qty Price
46110 - HANDLE ASSY, PARKING BRAKE CONTROL
46110-35100

LN3#,4#,RN3#,4#..LHD

 1
46110A - BUSH OR RING, O (FOR PARKING BRAKE PLUNGER)
90386-12048

LN3#,4#,RN3#,4#

 1
46114 - PIN, PARKING BRAKE PLUNGER
46114-20010

LN3#,4#,RN3#,4#

 1
46144 - ANTI-RATTLE, PARKING BRAKE PLUNGER
46144-20010

LN3#,4#,RN3#,4#

 1
46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE
46301-35090

LN30,40,RN30,31,40,41..LHD

 1
46301F - SPRING, TORSION(FOR PARKING BRAKE INTERMEDIATE LEVER)
90508-32007

LN30,40,RN30,31,40,41..LHD

 1
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46304-22020

LN30,40,RN30,31,40,41

 1
46361 - ROD, PARKING BRAKE PULL
46361-35040

LN30,40,RN30,31,40,41

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-35151

RN30,31,40,41

 1
46410-35151

LN30,40..5H;LN30,40..LHD

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-35121

RN41..SR5..GEN;RN40,41..DLX,STD

 1
46420D - GROMMET OR BUSH(FOR PARKING BRAKE CABLE CLAMP)
90385-13051

LN30,40,RN30,31,40,41

 3
46420D - GROMMET OR BUSH(FOR PARKING BRAKE CABLE CLAMP)
90385-13051

LN30,40,RN30,31,40,41

 3
46420D - GROMMET OR BUSH(FOR PARKING BRAKE CABLE CLAMP)
90385-13051

LN30,40,RN30,31,40,41

 3
46420E - GROMMET(FOR PARKING BRAKE CABLE CLAMP)
90480-01019

LN30,40,RN30,31,40,41

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-35131

RN41..SR5..GEN;RN40,41..DLX,STD

 1
46439 - INSULATOR, PARKING BRAKE CABLE HEAT
46439-35020

LN30,40,RN30,31,40,41

 1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-22010

LN30,40,RN30,31,40,41

 1
46471 - PULLEY, WIRE
46471-20010

LN3#,4#,RN3#,4#

 1
46471B - PIN, W/HOLE(FOR WIRE PULLEY SET)
90240-08070

LN3#,4#,RN3#,4#

 1
46473 - BRACKET, PULLEY
46473-35020

LN3#,4#,RN3#,4#

 1
Common parts
90179-08123
90206-08016
90461-04031
90461-12017
90461-12331
90461-12773
90468-08001
91611-40814
91611-60612
91616-40820
91616-40822
91651-40614
91656-40820
91656-40825
94612-10701
95381-02015
95381-02515
96160-00900
