RN40L-KR (1978)

Toyota Hilux

Production Aug 1978 - Jul 1983
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )12R#

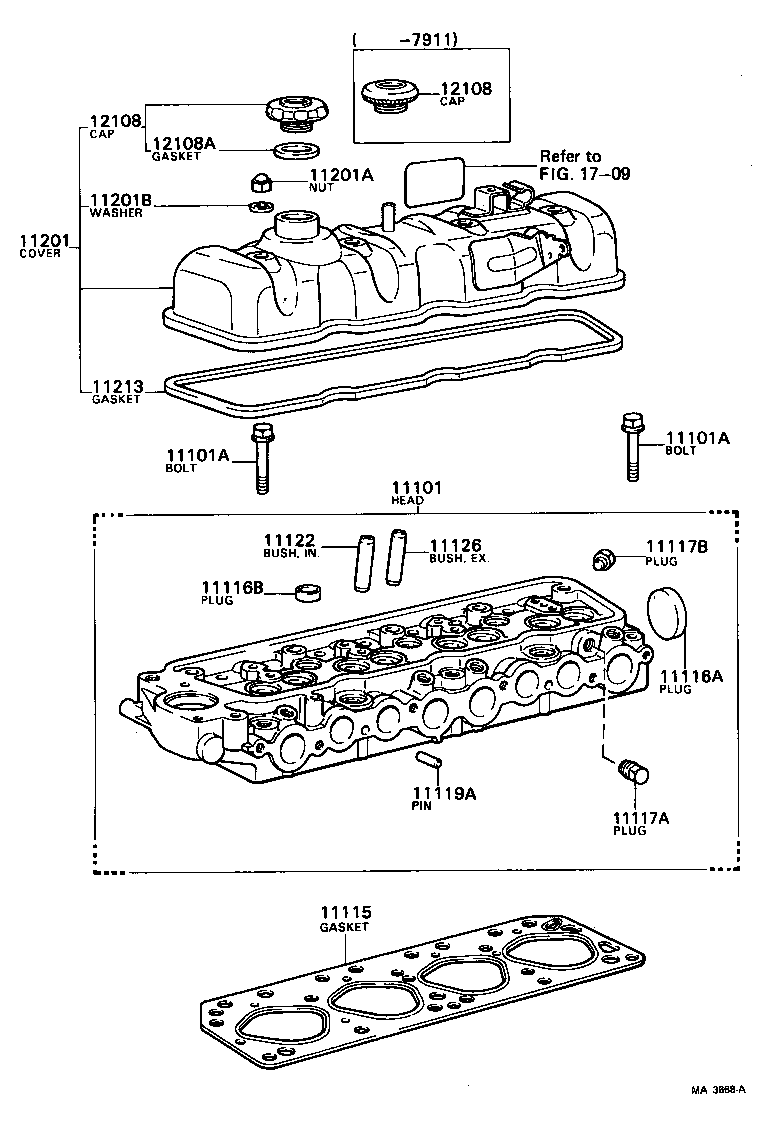

Click highlighted areas on diagram

diagram 11101 11101A 11101A 11115 11116B 11117A 11117B 11119A 11122 11126 11201 11201A 11201B 11213 12108 12108 12108A 1709
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-59075

L..LN30,40

 1
11101-59077

L..LN3#,4#

 1
11101-59078

L..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)

 1
11101-39177

12R..RN30,40

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02066

12R#..RN30,40

*12-1.25PX98-24

 5
90910-02065

12R#..RN30,40

*12-1.25PX84.5-24

 5
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02066

12R#..RN30,40

*12-1.25PX98-24

 5
90910-02065

12R#..RN30,40

*12-1.25PX84.5-24

 5
11115 - GASKET, CYLINDER HEAD
11115-54010

L..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)

 1
11115-31023

12R#..RN30,40

 1
11116B - PLUG, TIGHT, NO.2
96411-42200

12R#..RN30,40

OD=22

 3
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90345-53028

12R..RN30,40..GEN,SA

W/O HEATER

 1
11117B - PLUG, W/HEAD TAPER SCREW, NO.2
90345-51025

12R#..RN30,40

 1
11119A - PIN, STRAIGHT, NO.1
90250-08054

18R..RN46..ARL..IV3;12R#,18R..RN3#,40,41;18R..RN46..EUR,GEN,ME,SA

L=23,OD=8,L=23,OD=8

 2
11122 - BUSH, INTAKE VALVE GUIDE
11122-54010

L..LN3#,4#

STD

 4
11123-54010

L..LN3#,4#

O/S 0.05

 4
11122-23010

12R#..RN30,40

STD

 4
11123-23010

12R#..RN30,40

O/S 0.05

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11122-54010

L..LN3#,4#

STD

 4
11123-54010

L..LN3#,4#

O/S 0.05

 4
11122-23010

12R#..RN30,40

STD

 4
11123-23010

12R#..RN30,40

O/S 0.05

 4
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-39195

12R#..RN30,40

 1
11201-59045

L..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)

 1
11201-59016

L..LN30,40

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-06014

12R#..RN30,40

 4
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-10003

12R#..RN30,40

 4
11213 - GASKET, CYLINDER HEAD COVER
11213-31020

12R#..RN30,40

 1
11213-54010

L..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)

 1
12108 - CAP SUB-ASSY, OIL FILLER
12181-31020

12R#..RN30,40

 1
12180-13010

L..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)

 1
12108 - CAP SUB-ASSY, OIL FILLER
12181-31020

12R#..RN30,40

 1
12180-13010

L..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

L..LN3#,4#

 1
Linked diagrams
1709

(7909-8204)L

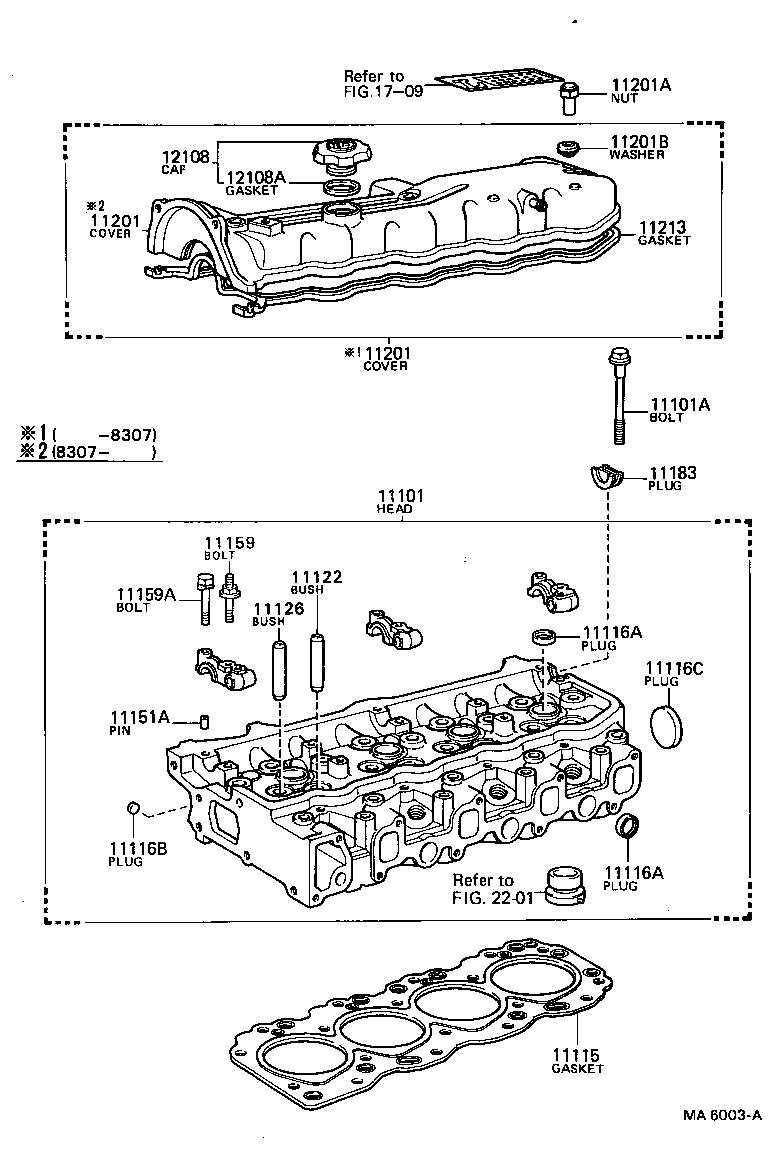

Click highlighted areas on diagram

diagram 11101 11101A 11115 11116A 11116A 11116B 11116C 11122 11126 11151A 11159 11159A 11183 11201 11201A 11201B 11213 12108 12108A 1701 1701 1709 2201
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-59075

L..LN30,40

 1
11101-59077

L..LN3#,4#

 1
11101-59078

L..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)

 1
11101-39177

12R..RN30,40

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02066

12R#..RN30,40

*12-1.25PX98-24

 5
90910-02065

12R#..RN30,40

*12-1.25PX84.5-24

 5
11115 - GASKET, CYLINDER HEAD
11115-54010

L..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)

 1
11115-31023

12R#..RN30,40

 1
11116A - PLUG, TIGHT, NO.1
96411-45000

12R#..RN30,40

OD=50

 1
11116A - PLUG, TIGHT, NO.1
96411-45000

12R#..RN30,40

OD=50

 1
11116B - PLUG, TIGHT, NO.2
96411-42200

12R#..RN30,40

OD=22

 3
11122 - BUSH, INTAKE VALVE GUIDE
11122-54010

L..LN3#,4#

STD

 4
11123-54010

L..LN3#,4#

O/S 0.05

 4
11122-23010

12R#..RN30,40

STD

 4
11123-23010

12R#..RN30,40

O/S 0.05

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11122-54010

L..LN3#,4#

STD

 4
11123-54010

L..LN3#,4#

O/S 0.05

 4
11122-23010

12R#..RN30,40

STD

 4
11123-23010

12R#..RN30,40

O/S 0.05

 4
11159 - BOLT, STUD(FOR HEAD TO CAMSHAFT BEARING CAP)
90116-08054

L..LN30,40

L=76,S=13&15

 3
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-39195

12R#..RN30,40

 1
11201-59045

L..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)

 1
11201-59016

L..LN30,40

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-06014

12R#..RN30,40

 4
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-10003

12R#..RN30,40

 4
11213 - GASKET, CYLINDER HEAD COVER
11213-31020

12R#..RN30,40

 1
11213-54010

L..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)

 1
12108 - CAP SUB-ASSY, OIL FILLER
12181-31020

12R#..RN30,40

 1
12180-13010

L..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

L..LN3#,4#

 1
Linked diagrams
1701
1709
2201

(8204- )L

Click highlighted areas on diagram

diagram 11101 11101A 11115 11116A 11116A 11116B 11116C 11122 11126 11151A 11159 11159A 11183 11201 11201 11201A 11201B 11213 12108 12108A 1709 2201
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-59075

L..LN30,40

 1
11101-59077

L..LN3#,4#

 1
11101-59078

L..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)

 1
11101-39177

12R..RN30,40

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02066

12R#..RN30,40

*12-1.25PX98-24

 5
90910-02065

12R#..RN30,40

*12-1.25PX84.5-24

 5
11115 - GASKET, CYLINDER HEAD
11115-54010

L..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)

 1
11115-31023

12R#..RN30,40

 1
11116A - PLUG, TIGHT, NO.1
96411-45000

12R#..RN30,40

OD=50

 1
11116A - PLUG, TIGHT, NO.1
96411-45000

12R#..RN30,40

OD=50

 1
11116B - PLUG, TIGHT, NO.2
96411-42200

12R#..RN30,40

OD=22

 3
11122 - BUSH, INTAKE VALVE GUIDE
11122-54010

L..LN3#,4#

STD

 4
11123-54010

L..LN3#,4#

O/S 0.05

 4
11122-23010

12R#..RN30,40

STD

 4
11123-23010

12R#..RN30,40

O/S 0.05

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11122-54010

L..LN3#,4#

STD

 4
11123-54010

L..LN3#,4#

O/S 0.05

 4
11122-23010

12R#..RN30,40

STD

 4
11123-23010

12R#..RN30,40

O/S 0.05

 4
11159 - BOLT, STUD(FOR HEAD TO CAMSHAFT BEARING CAP)
90116-08054

L..LN30,40

L=76,S=13&15

 3
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-39195

12R#..RN30,40

 1
11201-59045

L..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)

 1
11201-59016

L..LN30,40

 1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-39195

12R#..RN30,40

 1
11201-59045

L..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)

 1
11201-59016

L..LN30,40

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-06014

12R#..RN30,40

 4
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-10003

12R#..RN30,40

 4
11213 - GASKET, CYLINDER HEAD COVER
11213-31020

12R#..RN30,40

 1
11213-54010

L..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)

 1
12108 - CAP SUB-ASSY, OIL FILLER
12181-31020

12R#..RN30,40

 1
12180-13010

L..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

L..LN3#,4#

 1
Linked diagrams
1709
2201
