RN36L-KRW (1979)
Toyota Hilux
(7901-8307)LN36,46,RN36,46..T1
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

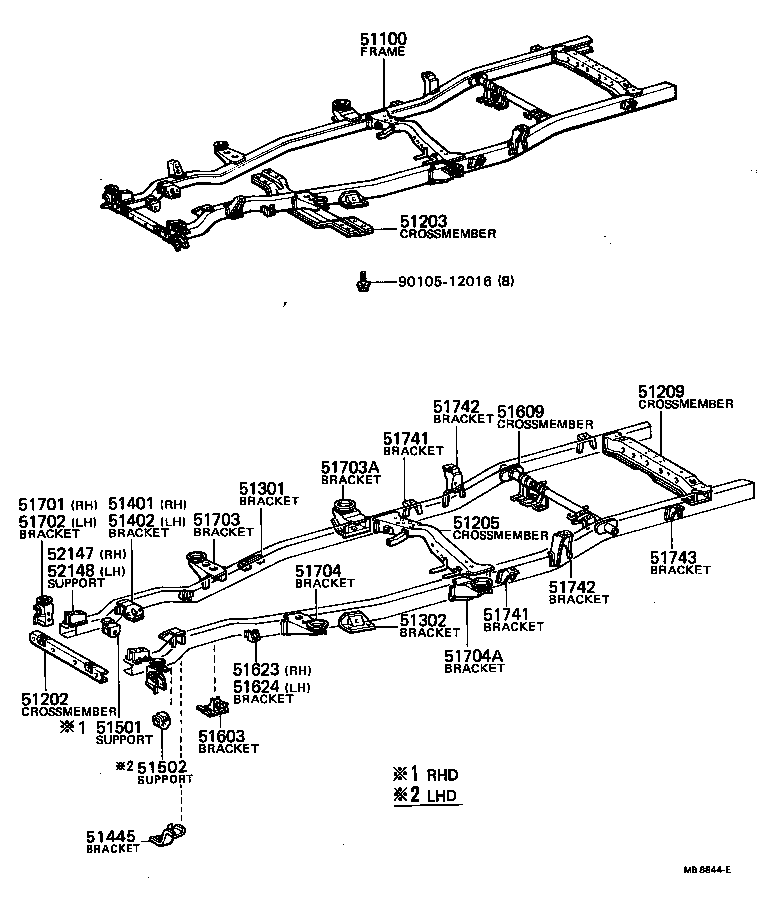

| 51100 - FRAME ASSY | ||||
| 51001-3D032 |
RN36..LHD |
1 | ||
| 51001-3D030 |
RN36..LHD |
1 | ||
| 51001-3D031 |
RN36..LHD |
1 | ||
| 51202 - CROSSMEMBER SUB-ASSY, FRAME, NO.1 | ||||
| 51201-35080 |
LN36,46,RN36,46 |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51202-35130 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 |
1 | ||
| 51202-35131 |
RN36;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51204-35150 |
RN36 |
1 | ||
| 51204-35152 |
LN36,RN36 |
1 | ||
| 51204-35151 |
RN36 |
1 | ||
| 51209 - CROSSMEMBER SUB-ASSY, FRAME, NO.8 | ||||
| 51209-35080 |
LN3#,4#,RN3#,4# |
1 | ||
| 51301 - BRACKET, FRAME NO.2 CROSSMEMBER, RH | ||||
| 51321-35030 |
LN36,46,RN36,46 |
1 | ||
| 51302 - BRACKET, FRAME NO.2 CROSSMEMBER, LH | ||||
| 51322-35010 |
LN36,46,RN36,46 |
1 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51401-35150 |
LN36,46,RN36,46 |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51402-35150 |
LN36,46,RN36,46 |
1 | ||
| 51445 - BRACKET, ENGINE UNDER COVER | ||||
| 51445-35030 |
LN36,46,RN36,46..LHD |
1 | ||
| 51502 - SUPPORT SUB-ASSY, SUSPENSION ARM, LH | ||||
| 51505-35042 |
LN36,46,RN36,46..LHD |
1 | ||
| 51505-35040 |
RN36,46..LHD |
1 | ||
| 51505-35041 |
LN36,46,RN36,46..LHD |
1 | ||
| 51603 - BRACKET SUB-ASSY, FRONT SUSPENSION BOUND | ||||
| 51603-35010 |
LN36,46,RN36,46 |
2 | ||
| 51609 - CROSSMEMBER SUB-ASSY, REAR SHOCK ABSORBER SUPPORT | ||||
| 51205-35080 |
LN3#,4#,RN3#,4#..T1 |
1 | ||
| 51623 - BRACKET, FRONT SPRING BOUND STOPPER, RH | ||||
| 51623-35010 |
LN36,46,RN36,46 |
1 | ||
| 51624 - BRACKET, FRONT SPRING BOUND STOPPER, LH | ||||
| 51624-35010 |
LN36,46,RN36,46 |
1 | ||
| 51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH | ||||
| 51701-35060 |
LN36,46,RN36,46 |
1 | ||
| 51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH | ||||
| 51701-35060 |
LN36,46,RN36,46 |
1 | ||
| 51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH | ||||
| 51703-35020 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 |
1 | ||
| 51703-35021 |
LN36,46,RN36,46 |
1 | ||
| 51703A - BRACKET SUB-ASSY, CAB REAR MOUNTING, RH | ||||
| 51705-35040 |
LN36,46,RN36,46..ARL,EUR,GEN,ME |
1 | ||
| 51705-35040 |
LN3#,46,RN36,46;LN40,RN30,31,40,41..GEN,ME,PHL,SA |
1 | ||
| 51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH | ||||
| 51704-35041 |
LN36,46,RN36,46 |
1 | ||
| 51704-35040 |
RN36;RN46..EUR,GEN;RN46..ARL..IV3 |
1 | ||
| 51704A - BRACKET SUB-ASSY, CAB REAR MOUNTING, LH | ||||
| 51705-35040 |
LN36,46,RN36,46..ARL,EUR,GEN,ME |
1 | ||
| 51705-35040 |
LN3#,46,RN36,46;LN40,RN30,31,40,41..GEN,ME,PHL,SA |
1 | ||
| 51741 - BRACKET, REAR BODY MOUNTING, NO.1 | ||||
| 51741-35050 |
LN3#,4#,RN3#,4#..T1 |
2 | ||
| 51741 - BRACKET, REAR BODY MOUNTING, NO.1 | ||||
| 51741-35050 |
LN3#,4#,RN3#,4#..T1 |
2 | ||
| 51742 - BRACKET, BODY MOUNTING, NO.2 | ||||
| 51743-35060 |
LN3#,4#,RN3#,4#..T1 LH |
1 | ||
| 51742-35040 |
LN3#,4#,RN3#,4#..T1 RH |
1 | ||
| 51742 - BRACKET, BODY MOUNTING, NO.2 | ||||
| 51743-35060 |
LN3#,4#,RN3#,4#..T1 LH |
1 | ||
| 51742-35040 |
LN3#,4#,RN3#,4#..T1 RH |
1 | ||
| 51743 - BRACKET, BODY MOUNTING, NO.3 | ||||
| 51741-35050 |
LN3#,4#,RN3#,4# |
2 | ||
| 52147 - SUPPORT, FRONT BUMPER, RH | ||||
| 52147-35020 |
LN36,46,RN36,46 |
1 | ||
| 52148 - SUPPORT, FRONT BUMPER, LH | ||||
| 52148-35020 |
LN36,46,RN36,46 |
1 | ||
| Common parts | ||||
| 90105-12016 | ||||
