RN31R-MS (1978)

Toyota Hilux

Production Aug 1978 - Aug 1981
Engine 18R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )12R#,18R

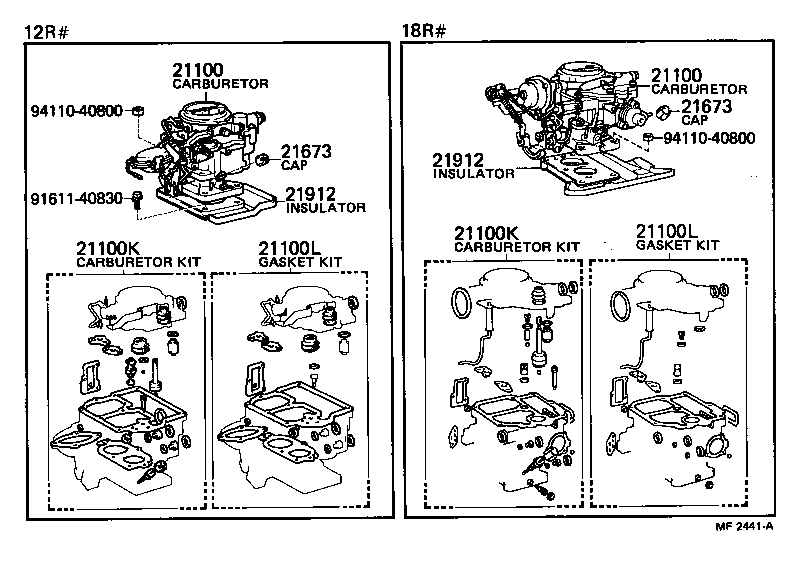

Click highlighted areas on diagram

diagram 21100 21100 21100K 21100K 21100L 21100L 21673 21673 21912 21912 9161140830 9411040800 9411040800
Part # Description Qty Price
21100 - CARBURETOR ASSY
21100-34431

18R..RN31,36,41,46..GEN,SA

 1
21100 - CARBURETOR ASSY
21100-34431

18R..RN31,36,41,46..GEN,SA

 1
21100K - CARBURETOR KIT
04211-34210

18R..RN31,36,41,46..GEN,ME,SA

 1
21100K - CARBURETOR KIT
04211-34210

18R..RN31,36,41,46..GEN,ME,SA

 1
21100L - GASKET KIT, CARBURETOR
04212-36010

18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA

 1
21100L - GASKET KIT, CARBURETOR
04212-36010

18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA

 1
21912 - INSULATOR, CARBURETOR HEAT
21912-34062

18R..RN31,36,41,46

 1
21912 - INSULATOR, CARBURETOR HEAT
21912-34062

18R..RN31,36,41,46

 1
Common parts
91611-40830
94110-40800
