RN31R-JDN3 (1978)
Toyota Hilux
Production
Aug 1978
-
Aug 1981
Engine
18R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7808- )RHD

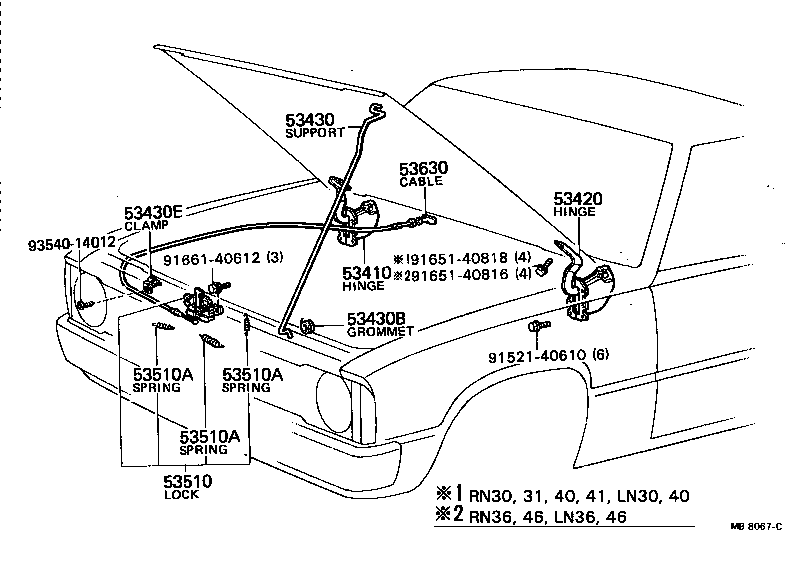

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-89104 |
LN3#,4#,RN3#,4# |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-89103 |
LN3#,4#,RN3#,4# |
1 | ||
| 53430 - SUPPORT ASSY, HOOD | ||||
| 53441-89102 |
RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41 |
1 | ||
| 53430B - GROMMET(FOR HOOD SUPPORT) | ||||
| 90480-15002 |
LN3#,4#,RN3#,4# |
1 | ||
| 53430E - CLAMP, HOOD SUPPORT | ||||
| 53455-89101 |
RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41 |
1 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-89110 |
LN3#,4#,RN3#,4#..RHD |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-09018 |
RN46..ARL..IV3;RN46..RHD..(EUR,GEN);LN30,40,RN3#,40,41..RHD OD=10.6 |
1 | ||
| 90506-09014 |
LN3#,4#,RN3#,4#..RHD OD=8.9 |
1 | ||
| 90506-18016 |
LN3#,4#,RN3#,4# OD=13.8 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-09018 |
RN46..ARL..IV3;RN46..RHD..(EUR,GEN);LN30,40,RN3#,40,41..RHD OD=10.6 |
1 | ||
| 90506-09014 |
LN3#,4#,RN3#,4#..RHD OD=8.9 |
1 | ||
| 90506-18016 |
LN3#,4#,RN3#,4# OD=13.8 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-09018 |
RN46..ARL..IV3;RN46..RHD..(EUR,GEN);LN30,40,RN3#,40,41..RHD OD=10.6 |
1 | ||
| 90506-09014 |
LN3#,4#,RN3#,4#..RHD OD=8.9 |
1 | ||
| 90506-18016 |
LN3#,4#,RN3#,4# OD=13.8 |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-89106 |
LN3#,4#,RN3#,4# |
1 | ||
| Common parts | ||||
| 91521-40610 | ||||
| 91651-40816 | ||||
| 91651-40818 | ||||
| 91661-40612 | ||||
| 93540-14012 | ||||
