RN31L-MS (1978)

Toyota Hilux

Production Aug 1978 - Jul 1983
Engine 18R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7808-7908)18R

Click highlighted areas on diagram

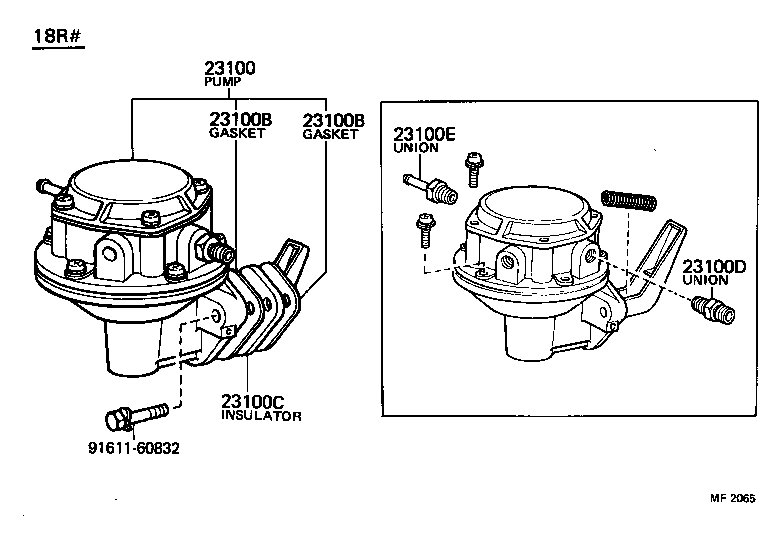

diagram 23100 23100B 23100B 23100C 23100D 23100E 9161160832
Part # Description Qty Price
23100 - PUMP ASSY, FUEL
23100-39117

18R..RN31,36,41,46

 1
23100-39295

18R..RN31,41

 1
23100B - GASKET, FUEL PUMP
90923-05005

18R..RN46..ARL..IV3;12R#,18R..RN3#,40,41;18R..RN46..EUR,GEN,ME,SA

 2
23100B - GASKET, FUEL PUMP
90923-05005

18R..RN46..ARL..IV3;12R#,18R..RN3#,40,41;18R..RN46..EUR,GEN,ME,SA

 2
23100C - INSULATOR, FUEL PUMP
90923-06001

18R..RN46..ARL..IV3;12R#,18R..RN3#,40,41;18R..RN46..EUR,GEN,ME,SA

 1
23100D - UNION, NIPPLE(FOR FUEL OUTLET)
23119-36020

18R..RN31,36,41,46

 1
23100E - UNION, NIPPLE(FOR FUEL INLET)
23119-45020

18R..RN31,36,41,46

 1
Common parts
91611-60832
