RN31L-MS (1978)
Toyota Hilux
Production
Aug 1978
-
Jul 1983
Engine
18R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

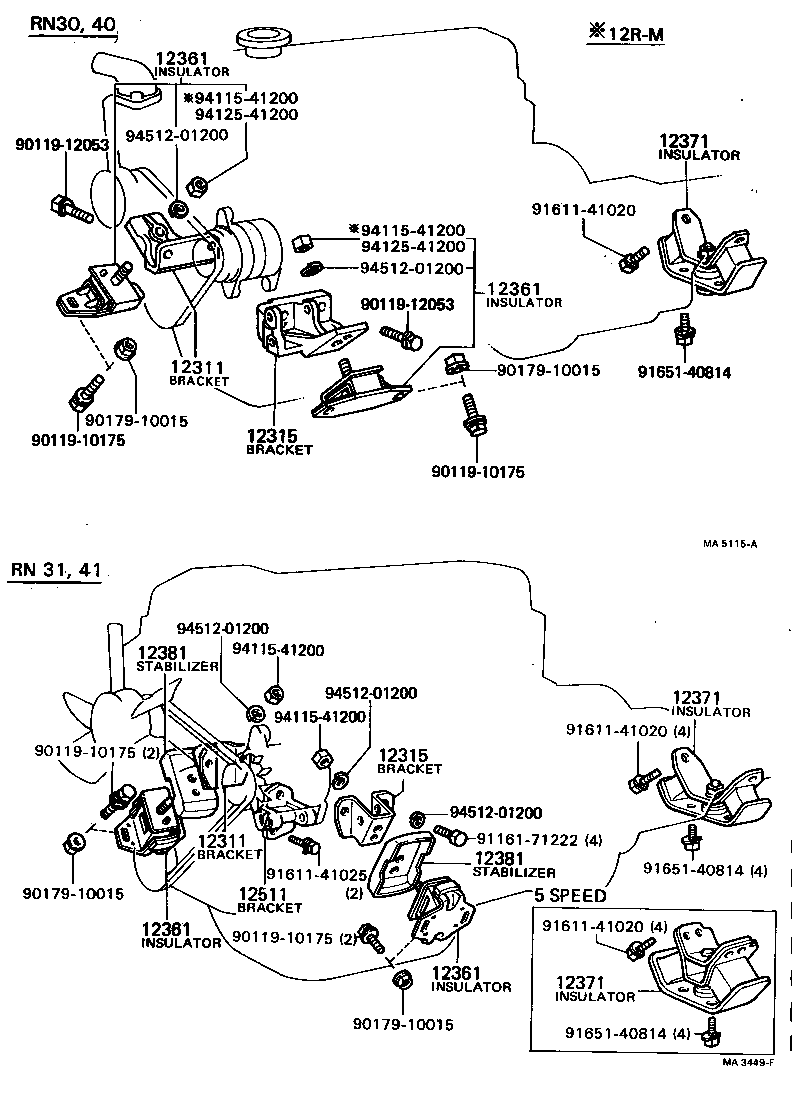

(7808- )12R#,18R..RN30,31,40,41
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-33011 |
18R..RN31,41 |
1 | ||
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-33011 |
18R..RN31,41 |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12315-33011 |
18R..RN31,41 |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12315-33011 |
18R..RN31,41 |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-38100 |
18R..RN31,41 |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-38100 |
18R..RN31,41 |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-38100 |
18R..RN31,41 |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-38100 |
18R..RN31,41 |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-34030 |
18R..RN31,41..SR5 |
1 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-34030 |
18R..RN31,41..SR5 |
1 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-34030 |
18R..RN31,41..SR5 |
1 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-34020 |
18R..RN31,41 |
2 | ||
| 12381-38011 |
18R..RN31,41 |
2 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-34020 |
18R..RN31,41 |
2 | ||
| 12381-38011 |
18R..RN31,41 |
2 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-33011 |
18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA |
1 | ||
| Common parts | ||||
| 90119-10175 | ||||
| 90119-12053 | ||||
| 90179-10015 | ||||
| 91161-71222 | ||||
| 91611-41020 | ||||
| 91611-41025 | ||||
| 91651-40814 | ||||
| 94115-41200 | ||||
| 94125-41200 | ||||
| 94512-01200 | ||||
(7909- )L
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-33011 |
18R..RN31,41 |
1 | ||
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-33011 |
18R..RN31,41 |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12315-33011 |
18R..RN31,41 |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12315-33011 |
18R..RN31,41 |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-38100 |
18R..RN31,41 |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-38100 |
18R..RN31,41 |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-38100 |
18R..RN31,41 |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-38100 |
18R..RN31,41 |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-34030 |
18R..RN31,41..SR5 |
1 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-34030 |
18R..RN31,41..SR5 |
1 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-34030 |
18R..RN31,41..SR5 |
1 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-34020 |
18R..RN31,41 |
2 | ||
| 12381-38011 |
18R..RN31,41 |
2 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-34020 |
18R..RN31,41 |
2 | ||
| 12381-38011 |
18R..RN31,41 |
2 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-34020 |
18R..RN31,41 |
2 | ||
| 12381-38011 |
18R..RN31,41 |
2 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-34020 |
18R..RN31,41 |
2 | ||
| 12381-38011 |
18R..RN31,41 |
2 | ||
| Common parts | ||||
| 90119-10175 | ||||
| 90179-10015 | ||||
| 90179-12010 | ||||
| 91611-41020 | ||||
| 91611-61025 | ||||
| 91612-41022 | ||||
| 91651-40814 | ||||
| 91651-61022 | ||||
| 91651-61025 | ||||
| 91661-40814 | ||||
