RN31L-KD (1978)

Toyota Hilux

Production Aug 1978 - Jul 1983
Engine 18R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )L

Click highlighted areas on diagram

diagram 12261 12261A 12261A
Part # Description Qty Price

(7808- )18R

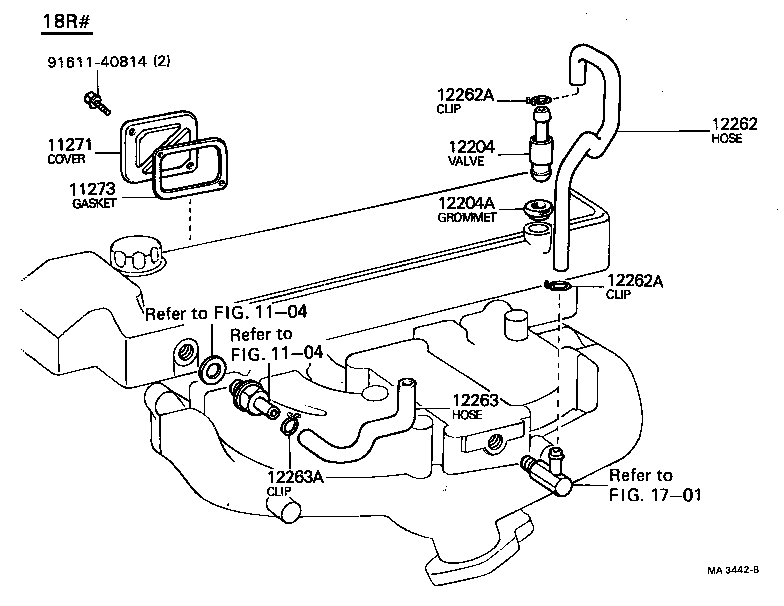

Click highlighted areas on diagram

diagram 1104 1104 11271 11273 12204 12204A 12262 12262A 12262A 12263 12263A 1701 9161140814
Part # Description Qty Price
11271 - COVER, CYLINDER BLOCK SIDE
11271-33010

18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA

 1
11273 - GASKET, CYLINDER BLOCK SIDE COVER
11273-33010

18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA

 1
12204 - VALVE SUB-ASSY, VENTILATION
12204-34010

18R..RN31,41

 1
12204-34010

18R..RN31,36,41,46

 1
12204-34010

18R..RN31,36,41,46..GEN,SA

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18180

18R..RN46..ARL..IV3;12R#,18R..RN3#,40,41;18R..RN46..EUR,GEN,ME,SA

 1
12262 - HOSE, VENTILATION, NO.2
12261-34070

18R..RN31,36,41,46

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-16010

18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-16010

18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA

 2
12263 - HOSE, VENTILATION, NO.3
12262-34020

18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA

 1
12263A - CLIP(FOR VENTILATION HOSE)
90467-20020

18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA

 1
Common parts
91611-40814
Linked diagrams
1104
1701
